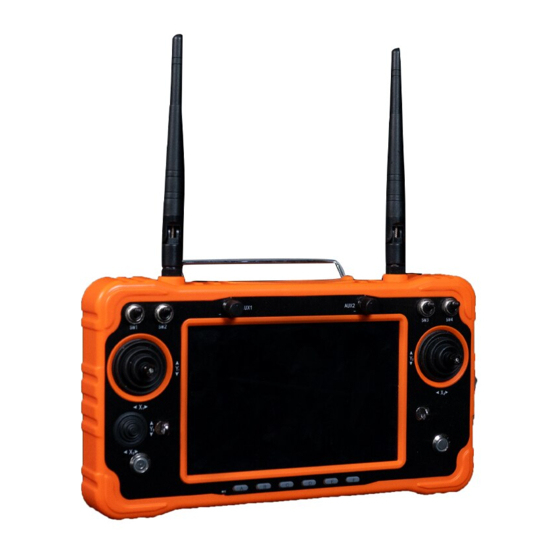

Foxtech MX16 User Manual

All-in-one portable ground control station
Hide thumbs
Table of Contents

Advertisement

Quick Links

MX16/MX16 Pro
All-in-one Portable Ground Control Station
User Manual
2020.10
V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX16 and is the answer not in the manual?

Questions and answers

Related Manuals for Foxtech MX16

Summary of Contents for Foxtech MX16

  • Page 1 MX16/MX16 Pro All-in-one Portable Ground Control Station User Manual 2020.10 V2.0...

  • Page 2: Table Of Contents

    MX16/MX16 Pro 16-Channel Radio Controller User Manual Contents Introduction Product Characteristics Application Range Specification Diagram Using Environmental Conditions1 Working Conditions Security Preparation and Checking Before Use Preparation and Checking Before Use Usage 2020 FOXTECH All Rights Reserved ©...

  • Page 3: Introduction

    - Adopts IP67-grade waterproof, dust-proof and drop-proof materials and structure, ensure not only good hand feeling, but also durability. - MX16 adopts 7 “ FHD high-brightness screen, 2000 nit LCD, operators can use it in full sunlight. Support 1080P HD video transmission, the dual antenna signals complement each other, super strong signal, super long distance, with algorithm control and out-of-step frequency hopping algorithm, greatly increasing the communication ability of weak signal .The transmission distance of MX16 can reach 10KM MX16...

  • Page 4: Application Range

    MX16/MX16 Pro 16-Channel Radio Controller User Manual Application Range For multirotor,fixedwing,vehicle, boat control and realize video (equipped with camera), data transmission. Specification Radio Controller Model MX16/MX16 Pro Channel Working voltage 4.2V Radio-frequency power 20DB@CE/23DB@FCC Frequency 2.400-2.483GHz Frequency hopping FHSS Upgrade...

  • Page 5: Diagram

    MX16/MX16 Pro 16-Channel Radio Controller User Manual Diagram 1. 2.4G 3dB antenna 10 3-position SW4 2. 3-position switch SW2 11 3-positionSW3 3. 3-position switch SW1 12 knob AUX2 4. Left joystick X1. Y1 13 knob AUX1 5. Small joystick X3. Y3 6.
  • Page 6 MX16/MX16 Pro 16-Channel Radio Controller User Manual 1. Ethernet 2. Power and SBUS input 3. Type-C port 4. TF card port 5. Frequency pairing button 6. Serial port 0 7. Serial port 1 8. MIPI camera port 9. HDMI input 2020 FOXTECH All Rights Reserved ©...

  • Page 7: Using Environmental Conditions1

    Working Conditions Power supply method and notes. MX16 series ground unit has built-in integrated rechargeable lithium battery, which is compatible with the market standard micro USB interface 5v/1.5A power adapter (such as mobile phone, camera and other digital products USB charger) for charging.

  • Page 8: Preparation And Checking Before Use

    MX16/MX16 Pro 16-Channel Radio Controller User Manual Preparation and Checking Before Use Preparation and Checking Before Use 1. Always check that it the remote control is fully charged before use. 2. Please check if the antenna is placed as required before use.
  • Page 9 MX16/MX16 Pro 16-Channel Radio Controller User Manual Faulty Operation Antennas can not cross. Cannot be parallel to the remote controller. 2020 FOXTECH All Rights Reserved ©...
  • Page 10 MX16/MX16 Pro 16-Channel Radio Controller User Manual Uav Operation Diagram Proper Operation Away from the center plate,vertically upward, no shielding. Fixed under the arms. 2020 FOXTECH All Rights Reserved ©...
  • Page 11 MX16/MX16 Pro 16-Channel Radio Controller User Manual Faulty Operation Can not place in the center of the plate. Antenna can not be close to the CF and metal. Antennas can not cross, and can not be placed in the middle of the tank.

  • Page 12: Usage

    MX16/MX16 Pro 16-Channel Radio Controller User Manual Usage Part 1: Language Setting 1.Enter the system settings, select the language and input method. 2. After entering “language and input method”, click on the language to switch, add, and delete languages. 2020 FOXTECH All Rights Reserved...
  • Page 13 MX16/MX16 Pro 16-Channel Radio Controller User Manual Part 2: Status Prompt Bar 1. Access to internet successfully through Ethernet port or USB 2. Remote controller and receiver signal strength not connected in the picture 3. Power 4. Time 5. Return 6.
  • Page 14 1. Wait for 3s-5s after the receiver is powered on, and then long press the SET button until the white light flashse. 2. Enter MX16 assistant click frequency pairing. it will display ‘connected’ after the frequency successfully matched) Part 5 1.
  • Page 15 User Manual Part 6: Joystick calibration Check rudder quantity in the MX16 assistant, calibrate according to reference value. 1. When the screen of the remote control is completely turned off, center the knob. Long press the C and D keys in the six-segment switch, then wake up the screen and slide the screen upward.
  • Page 16 MX16/MX16 Pro 16-Channel Radio Controller User Manual 5. Click ‘communication connection’ 6. Click ‘add’ 7. Change the type to UDP, cchange listening port to 14551. 8. Click OK to save. 2020 FOXTECH All Rights Reserved ©...
  • Page 17 MX16/MX16 Pro 16-Channel Radio Controller User Manual Part 8 Connect to the Internet (1) 5Gwifi (2) RC WAN port connection (3) connect to the Internet by the wireless card through the OTG port on the remote control (support Huawei,zhongxin only).
  • Page 18 MX16/MX16 Pro 16-Channel Radio Controller User Manual (3) Share the videolink 1. Turn on the hot spot of the remote controller. 2. Connect the computer to the remote controller’s hot spot. 3. Open the computer’s settings, click on the adapter, select Ethernet, select the IPV4 protocol, select a custom IP address, enter as shown in the figure, then click on “confirm”.
  • Page 19 MX16/MX16 Pro 16-Channel Radio Controller User Manual 2020 FOXTECH All Rights Reserved ©...

  • Page 20: Faq

    3. How to get the RTSP address if using MIPI or HDMI camera? Open the MX16 Assistant, open ‘video check’, click Settings (virtual button), click the video stream address, click Customize to copy the link starting with THE RTSP below. And then paste it 4.
  • Page 21 MX16/MX16 Pro 16-Channel Radio Controller User Manual This content is subject to change. Download the latest version from https://www.foxtechfpv.com/mx16-series-16-channel-gcs.html For everyday updates, please follow Foxtech Facebook page: https://www.facebook.com/foxtechhobby YouTube Channel: https://www.youtube.com/user/foxtechonline/featured?view_as=subscriber 2020 FOXTECH All Rights Reserved ©...
