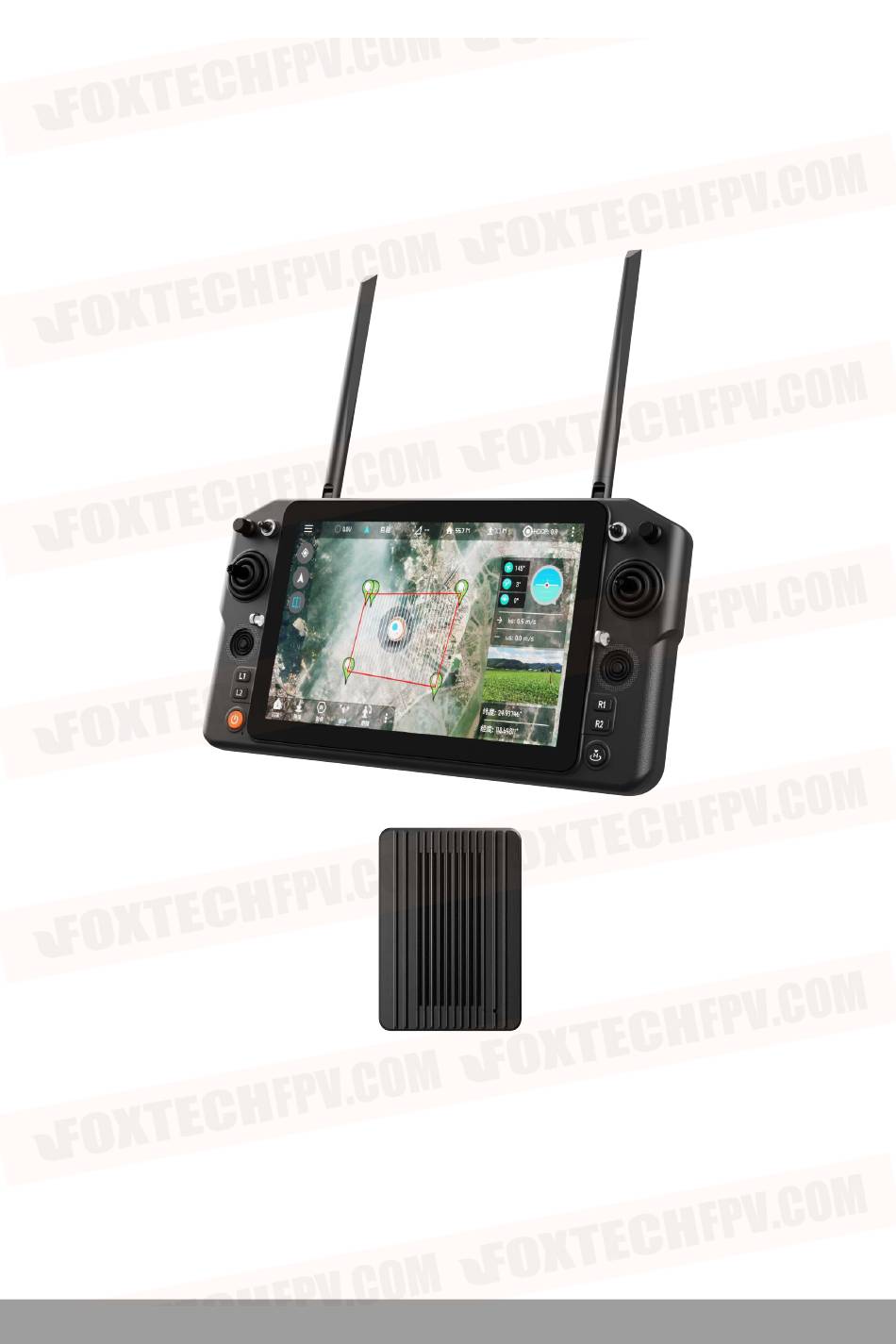

- Page 1 H30 30KM Portable UAV Ground Control Station V1.4 User manual...
- Page 2 A. Overview 1、Product Features （1）The H30 uses the newest Qualcomm Snapdragon 660 8-core processor, equipped with an Android 9 (64bit) embedded system and advanced SDR technology, also with a super protocol stack to make the image clearer, lower latency, longer distance transmission, and stronger anti-interfer- ence.
- Page 3 3、Specifications Remote Controller Specification Model No. Channels Working voltage 4.2v(Battery built-in) RF Power 23dBm@CE/FCC supports frequency hopping across Frequency 800M/1.4G/2.4G Dynamic FM frequency bands 346(L)*196.5(W)* Size Weight 1.5kg 89.4(H)mm Endurance 5 hours Battery 20000mA/H Update way APP Update online Charging port TYPE-C Run memory Store memory...
- Page 4 4、The composition of the model and its significance Number Annotation Number Annotation 800M/1.4G/2.4G Three working frequencies antenna Knob switch AUX1 Key button H Three levers switcher SW1 R2 button Left joystick X1、Y1 R1 button Small left joystick X3 、Y3 Small right joystick X4 、Y4 L1 button Right joystick X2、Y2 L2 button...
- Page 5 17 18 22 23 Number Annotation Number Annotation HDMI RJ45 SIM card slot TF card slot TYPE-C Wrapping connector...
- Page 6 Number Annotation Number Annotation Serial port 0 Binding key Serial port 1 Network port 0 Reserved port (unavailable) Network port 1 Power supply 7.2~72v External binding key input and SBUS Type-c MMCX Binding status indicator 5、Port Definition Diagram Serial Serial subs+power port 0 port 1...
- Page 7 6、Environment conditions Pay attention A）Working temperature:-10°C～+55°C。 B）Storage temperature:-25°C～+70°C。 C）Relative humidity:Not exceed 85%。 D）Atmospheric pressure:86kPa~106kPao E）Working environment should not contain explosive material or any corrosive or harmful gas may cause interference in the operation of the product. F）Always work under shelter to prevent rain, snow, wind, sand and dust contamination. 7、Working conditions Power supply and attentions H30 series uses a built in Li-ion battery.
- Page 8 B. Operation 1、Preparation and pre-checking before use Pay attention ① Check battery level. ② Check position of the antenna to get the best performance . ③ DO NOT operate under the influence of alcohol or drugs. 2、Operation Language setting ① Enter system setting, choose your language and input method ②...
- Page 9 H30 Assistant ①Mode setting: Switch the operating mode of the remote control's joystick (mode type: Mode 1, Mode 2. Default Mode 2), 1. Read 2. Set 3. Save. ②Video viewing: You can view RTSP videos (detailed on the next page) ③Check whether the values of each channel of the remote controller are normal or not ④Wireless parameter configuration.
- Page 10 Binding Note：that the complete set of remote controller and receiver is already binding before leaving the factory. You only need to power on and wait for 20 seconds for automatic binding. ①Power on the receiver, the power light - red light is always on. After waiting for 20 seconds, press and hold the receiver SET binding key - the blue light flashes and then release it;...
- Page 11 How to display telemetry and image transmission on H30’s ground station FC’s data cable connects to the serial port 0, take Foxtech tower shows telemetry as an example (H30 Assistant should be quit) Foxtech tower： Serial port 0: Server IP: 192.168.144.101 Server port: 14550 Click to connect directly.
- Page 12 ->Common Settings ->Other Settings ->User Interface ->Video Window ->C10 (Display C10 camera) ->Customization (Input RTSP Address to Display Other Cameras) ->C10 (Display C10 camera) ->Customization (Input RTSP Address to Display Other Cameras) Take QGC in H30 to show video transmission as an example (H30 Assistant should be quit)
- Page 13 ① ② ③ Click the Q icon in QGC to enter the settings. ①Click on General ②Change the Source to RTSP Video Stresm ③Fill in the RTSP URL with the RTSP address of the network camera and the image of the C10 three-axis gimbal (which needs to be connected to C10) RTSP address rtsp://192.168.144.108�554/stream=0...
- Page 14 Take QGC in H30 to show telemetry as an example ① ② ③ ④ ①Click on Comm Links ②Click ADD to change the Type to TCP and name it as Name. ③Serial port 0: Server Address changed to 192.168.144.101 Port listening port changed to 14550 Serial port 1: Server Address changed to 192.168.144.101 Port Listening port changed to 14551 ④Click OK to save...
- Page 15 How to connect the internet The remote control can be connected to the Internet in three ways: （1） connected to 5G wifi network （2）connected to the RJ45 port of the remote control （3）inset a SIM card How to share internet, video/image transmission and data/telemetry transmission 1.Sharing telemetry （1）The remote controller is connected to the computer network port through a network cable.
- Page 16 （3）Open the Mission Planner in computer and select TCP as the connection way. （4）After clicking on the connection, enter IP: 192.168.144.101, and then click OK. （5）Select 14550 as the port number on serial port 0, and click OK to connect (see the figure below).
- Page 17 2.Sharing video/image transmission Connect the network cable as described above, share telemetry ->set a fixed Ethernet IP address. Download VLC exe. to show video/image ① Open VLC and choose network streaming ① ② Enter “rtsp://192.168.144.108�554/stream=0” to URL and click “play” ②...
- Page 18 Q & A 1、1.Can the remote control install other apps? The permissions of the remote control are all open, and there is no special software or restricted software installation and uninstallation. 2、How to obtain RTSP address using a third-party webcam The network segment of the webcam needs to be set to 144 network segments in advance (ip192.168.144.XXX, gateway 192.168.144.10).
-
Page 19: Maintenance & Servicing
C. Maintenance, servicing Storage for not using certain period Put H30 in a dry and ventilated area. No direct sun light to prevent harm to the internal li-ion battery. If store it over one months, it is highly recommended to put room temperature between 22℃ to 28 ℃...
