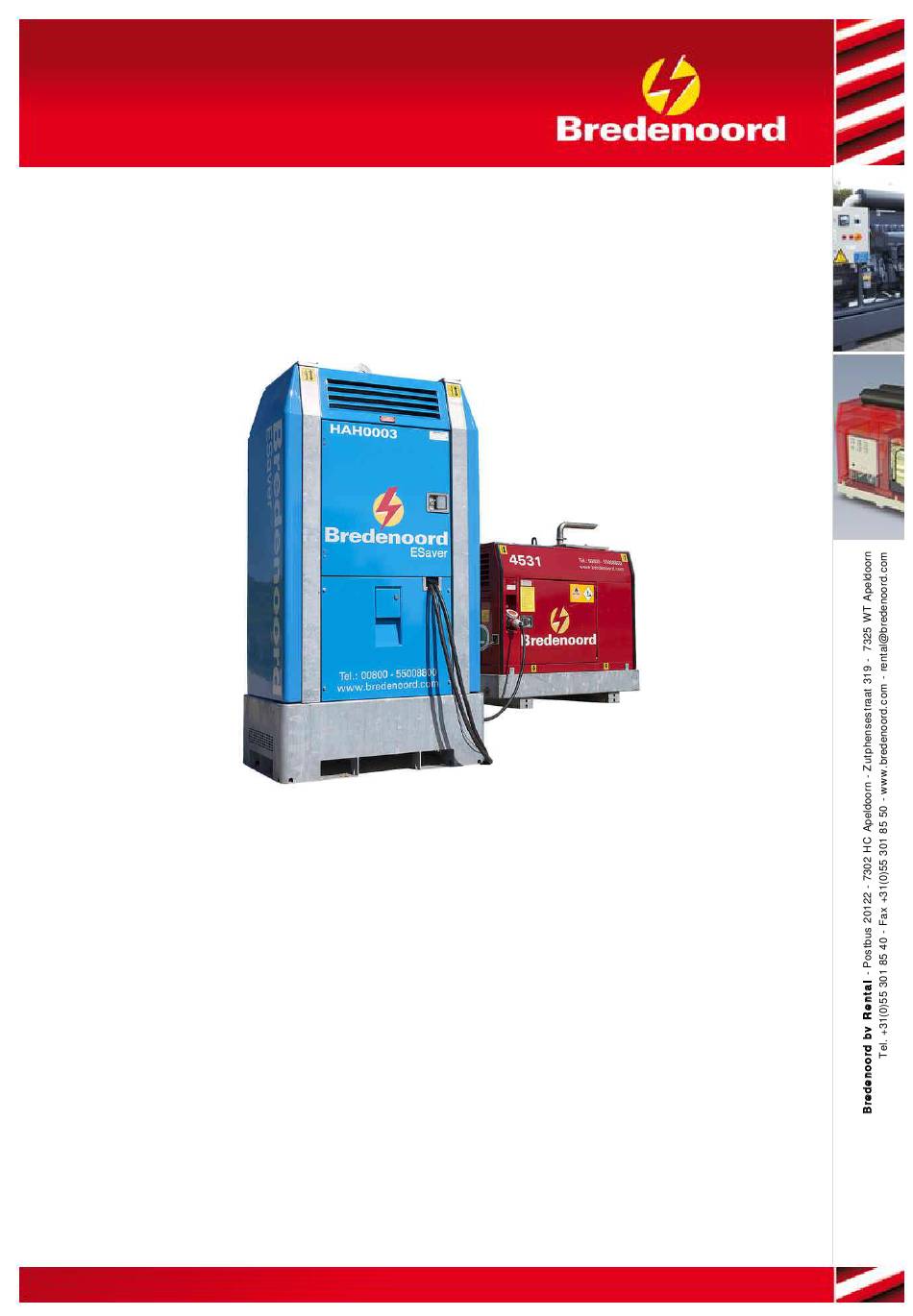

- Page 1 Operation manual ESaver III R0095 - R0109 Controller type: Mitsubishi PLC www.bredenoord.com © Bredenoord Aggregaten 2017...
-
Page 2: Table Of Contents
........................... 5 Operating instructions Starting and stopping ........................... 5 Main display ........................... 5 Reading data ........................... 8 Timer ........................... 10 Testing diesel genset ........................... 11 ........................... 13 Construction EG-verklaring van overeenstemming IIA ........................... 0 Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017... -
Page 3: Verkorte Bedieningshandleiding
Verkorte bedieningshandleiding ESaver III R0095 - R0109 15 kVA Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017... -
Page 4: Connection Of The Esaver
Only connect approved cables to the ESaver. · Only attach cables via the cable input. The door should be closed during operation. Connecting power cables The ESaver works only with a clockwise rotation field! Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017... -
Page 5: Operating Instructions
In the main display are several symbols displayed which can be selected by pressing. These symbols are provide with By pressing the symbol a new display wil appear with the data of this device. By pressing "START" in the main display the ESaver will start up. Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017... - Page 6 Main display ESaver in operation Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017...
- Page 7 Display "Genset" Display "Battery status" Display "Consum er" Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017...
-
Page 8: Reading Data
(%). Countdown will start when the power stays between certain values Start L1/2/3: Shows on which phase the peakstart is occured. Battery synch: Is shown when the battery is synchronising and how long this will continue. Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017... - Page 9 With pressing button (B) the next display will appear. Press "Week timer" will open a new display. 9. ESaver in operation 10. Generator running hours 11. Supplied energy 12. Charge cycle battery 13. Time till next service 14. Weektimer Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017...
-
Page 10: Timer
Manually starting w ith button 2, for exam ple if the w ork once begins earlier or if the settings of the tim er are m odified: The diesel genset starts m anually. At the sw itch off point (exam ple 21:00 hour) the diesel genset stops. Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017... -
Page 11: Testing Diesel Genset
On the next sw itch on point the diesel genset starts again. Testing diesel genset · Turn the selector switch (1) to “ON”. · Start the ESaver · Press arrow button, untill picture D will appear in the display. · Press "START" button (2). Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017... - Page 12 · The remark ("Link generator OK") will appear. · One smiley will appear if the genset is connected correctly. · After this the charging will be checked ("Checking charging please wait"). Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017...
-
Page 13: Construction
Construction Front Back 1. Selector switch 2. Touch screen 3. Battery monitor 4. Emergency stop 5. Inverters Volledige bedieningshandleiding 2 © Bredenoord Aggregaten 2017...
