Complete operation manual

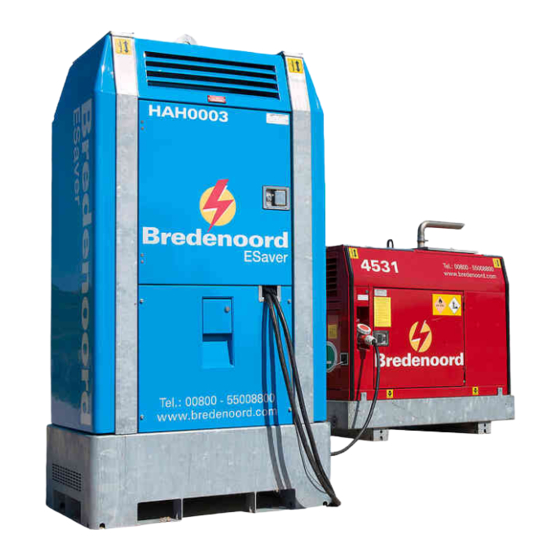

ESaver III
HAH0003 - HAH0012
15 kVA
Controller type:
Mitsubishi PLC
www.bredenoord.com
|
© Bredenoord Aggregaten 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESaver III and is the answer not in the manual?

Questions and answers

Summary of Contents for Bredenoord ESaver III

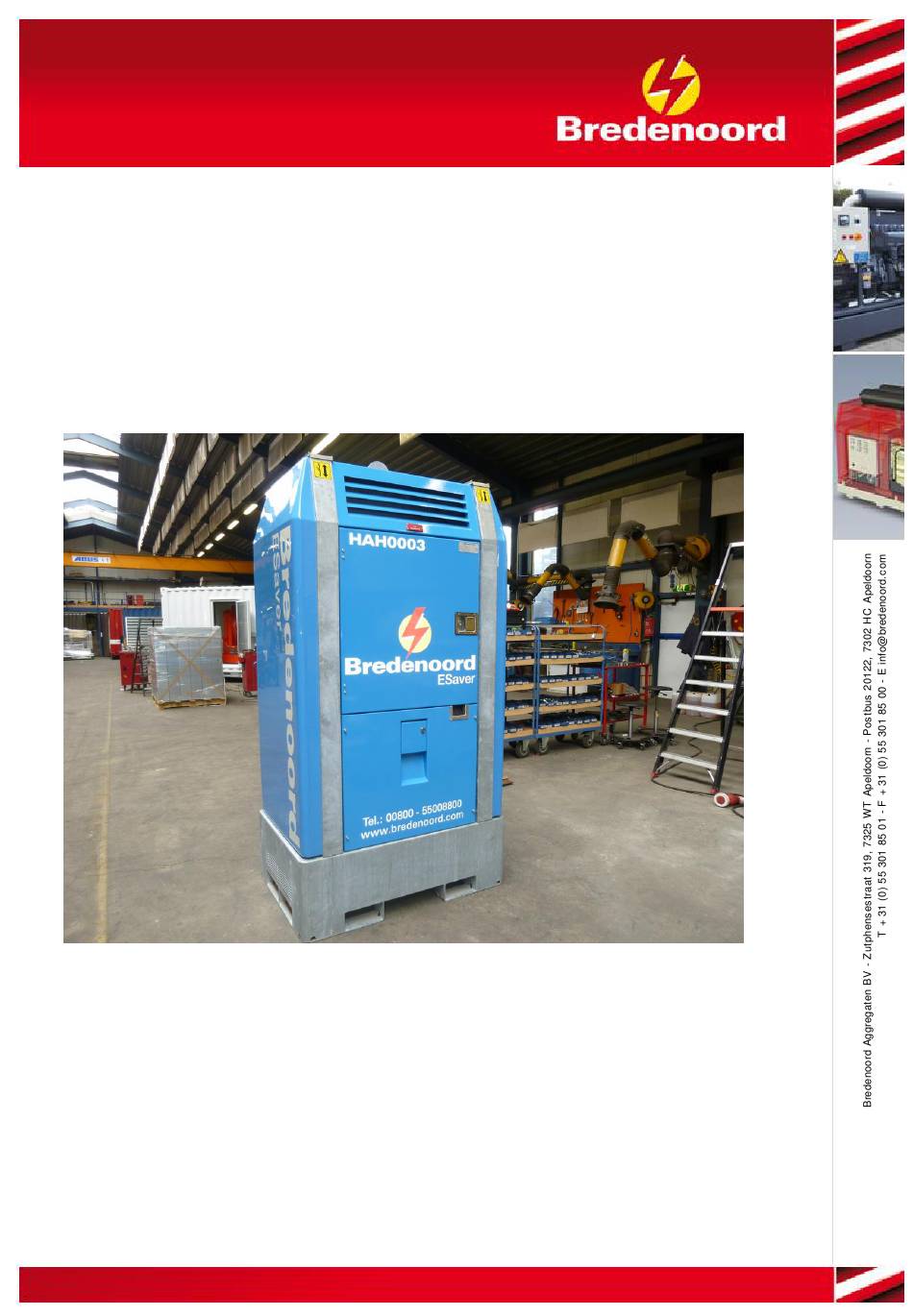

  • Page 1 Complete operation manual ESaver III HAH0003 - HAH0012 15 kVA Controller type: Mitsubishi PLC www.bredenoord.com © Bredenoord Aggregaten 2013...
  • Page 2: Table Of Contents

    Moving the ESaver ........................... 21 Maintenance 12.1 Important points for maintenance ........................... 21 12.2 Servicing ........................... 22 ........................... 23 Expiring of the warranty ........................... 24 Technical data EC-Declaration of Conformity IIA ............................. 25 Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 3: Safety Measures And Symbols

    Every other use of the ESaver than that described in this user manual, can lead to a dangerous work ing situation, both for the ESaver and user(s). Bredenoord Aggregaten BV refuses to accept responsibility for any claim of damage or human harm which has occurred because of not following the instructions in this manual or by lack of care during use, installation, service, maintenance or repair of the ESaver.
  • Page 4: Switching Safe

    It is not permitted to make adjustments in the control panel other than by a qualified electrician. In all other cases only allow the installation to be adjusted by an employee of Bredenoord Aggregaten. When you make adjustments yourself or have adjustments made, the firm Bredenoord Aggregaten B.V.
  • Page 5: Protections

    The emergency stop on the outside can be covered with a lid. The risk that exists while covering the emergency stop should be considered carefully. The emergency stop only switches off the ESaver! A connected genset is not switched off. Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 6: Installation Of The Esaver

    Ensure enough space on both sides of the ESaver for inlet and outlet of the cooling air. Ensure that there is enough ventilation and a good temperature control in the room where the ESaver is placed. The ESaver produces heat during use. Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 7: Connection Of The Esaver

    Only connect approved cables to the ESaver. Only attach cables via the cable input. The door should be closed during operation. Connecting power cables The ESaver works only with a clockwise rotation field! Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 8: Operating Instructions

    Turn the selector switch (1) to “OFF” Alarm reset Turn the selector switch (1) to “OFF” Turn the selector switch (1) to “ON” Press the button "START" (2). The ESaver starts! Switch on the main switch (4) Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 9: Testing Diesel Genset

    Press the arrow buttons, so that screen D appears Press the button "START" (2) Screen E appears ("Controle laden even geduld") If the diesel genset is working properly, screen F appears ("Koppeling aggregaat OK") Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 10: Reading Data

    Press the arrow buttons (B) so that the screens - indicated below - appears. 3. Power genset 4. Status ESaver 5. Power user 6. Battery status 7. Alarms 8. Timer genset 9. Running hours ESaver 10.Running hours genset 11.Charge cycles battery Screen with alarms Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 11: Construction

    Construction Front Back 1. Selector switch 2. Touch screen 3. Battery monitor 4. Emergency stop 5. Inverters Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 12: Timer

    Norm al functioning tim er: At the sw itch on point (exam ple 8:00 hour) the diesel genset starts. At the sw itch off point (exam ple 21:00 hour) the diesel genset stops. Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 13 At the sw itch on point (exam ple 8:00 hour) the diesel genset starts. Then the diesel genset stops m anually. On the next sw itch on point the diesel genset starts again. Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 14: Software

    Software This chapter discusses the menu structure. User A. Status ESaver (see also next page) B. Status genset C. Status user D. Status battery E. Start/stop ESaver Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 15 A. Status ESaver B. History ESaver C. History battery D. Status ESaver E. Timer for genset F. Test diesel genset (works only in this service screen) Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 16: Service

    D. Status ESaver (see also next page) screen) E. Statistics B. Input password F. Settings controller C. Service options 1. Start/stop ESaver 2. Charge batteries to 95% 3. Charge batteries to 100% Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 17 A. Status ESaver B. Reset data C. Set clock D. Settings main menu E. Settings screen Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 18: Trouble-Shooting

    NOTE: You can reset the error mode by LED illuminates charging time of 10 hours is switching off and back on the MultiPlus. The exceeded. Such a long charging standard MultiPlus factory setting of the “Bulk Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 19 1 minute, the temperature sensor should be replaced Should you experience an error that is not listed above and/or in the documentation of the inverters please contact the service department of Bredenoord. Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 20: Moving The Esaver

    When moving the ESaver by means of a forklift it’s important to keep the ESaver as straight as possible to prevent falling from the lifting forks. Keep in mind during lifting that the centre of gravity of the ESaver lies beneath the lifting eye. Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 21: Maintenance

    Maintenance This chapter explains how to execute maintenance on your Bredenoord ESaver. Regular maintenance will not only prolong the life of the ESaver, but is also vital for the safety of the users. The following points should be considered for safety during maintenance: Always make the installation voltage free when proceeding with maintenance.
  • Page 22: Servicing

    Display Protections Voltage Volt : _____________ Frequency : _____________ Charge batteries If defects are found during maintenance they will be resolved directly, if possible, in consultation with the customer. Comments customer/technician: Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 23: Expiring Of The Warranty

    Expiring of the warranty The warranty of the ESaver provided by Bredenoord expires directly if: The maintenance on the ESaver is not carried out as specified by the manufacturer. (Safety) components of the ESaver are removed and not placed back before the ESaver is being put in operation.
  • Page 24: Technical Data

    15 kVA Apparent power 12 kW Real power 15 kVA + power of diesel genset Peak power 15 kVA Max. step load 48 V 660 Ah Battery pack 21 kWh Battery capacity Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
  • Page 25: Ec-Declaration Of Conformity Iia

    - the sound directive 2000/14/EC. Is in conformity with: - the harmonized European standards EN 12601, EN 60204-1 - the national and international technical standards and specifications: NEN-1010 Apeldoorn, 19-11-2013 Nederland H. Keurhorst Directeur/Direktor/Director Complete operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
