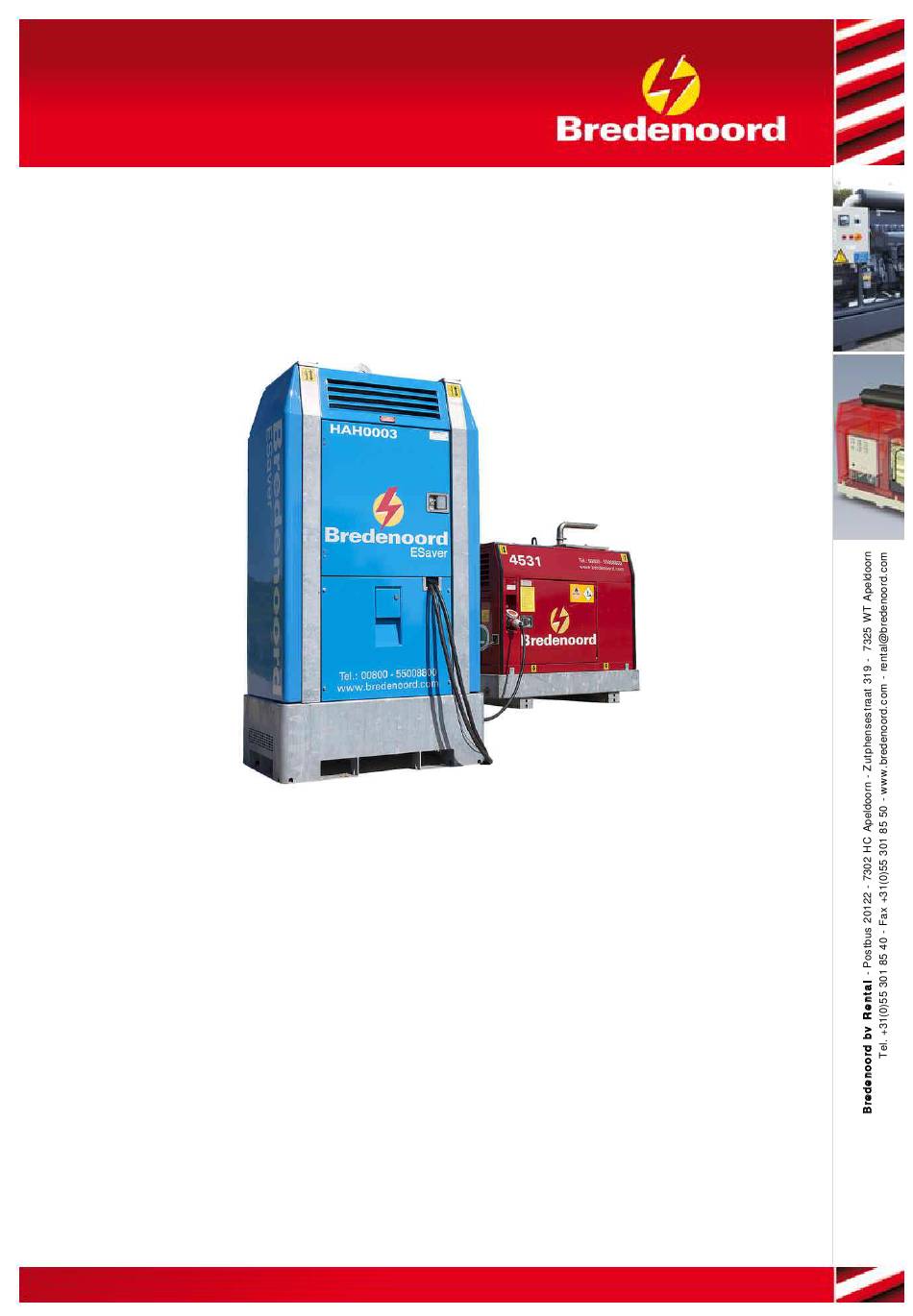

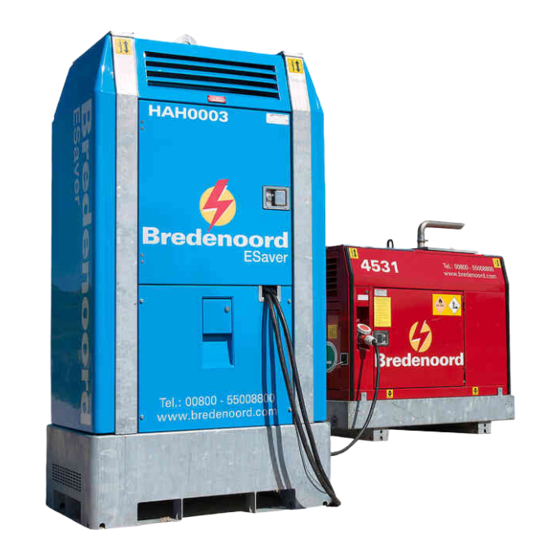

- Page 1 Operation manual ESaver III R0909 - R0943 Controller type: Mitsubishi PLC www.bredenoord.com © Bredenoord 2017...
-
Page 2: Table Of Contents
........................... 23 Moving the ESaver ........................... 24 Maintenance 11.1 Important points for maintenance ........................... 24 11.2 Servicing ........................... 25 ........................... 26 Expiring of the warranty ........................... 27 Technical data EG-verklaring van overeenstemming IIA ........................... 0 Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 3: Volledige Bedieningshandleiding
Volledige bedieningshandleiding ESaver III R0909 - R0943 15 kVA Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 4: Safety Measures And Symbols
Every other use of the ESaver than that described in this user manual, can lead to a dangerous work ing situation, both for the ESaver and user(s). Bredenoord Aggregaten BV refuses to accept responsibility for any claim of damage or human harm which has occurred because of not following the instructions in this manual or by lack of care during use, installation, service, maintenance or repair of the ESaver. -
Page 5: Switching Safe
It is not permitted to make adjustments in the control panel other than by a qualified electrician. In all other cases only allow the installation to be adjusted by an employee of Bredenoord Aggregaten. When you make adjustments yourself or have adjustments made, the firm Bredenoord Aggregaten B.V. -
Page 6: Protections
The emergency stop on the outside can be covered with a lid. The risk that exists while covering the emergency stop should be considered carefully. The emergency stop only switches off the ESaver! A connected genset is not switched off. Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 7: Installation Of The Esaver
Ensure enough space on both sides of the ESaver for inlet and outlet of the cooling air. · Ensure that there is enough ventilation and a good temperature control in the room where the ESaver is placed. The ESaver produces heat during use. Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 8: Connection Of The Esaver
Only connect approved cables to the ESaver. · Only attach cables via the cable input. The door should be closed during operation. Connecting power cables The ESaver works only with a clockwise rotation field! Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 9: Operating Instructions
Always follow the maintenance instructions, which can be found in the maintenance chapter of this manual, before use. The ESaver III is only permitted to be operated by qualified and adequately trained personnel that is authorized by the customer. Take care that the maximum load to switch does not exceed the maximum step load of the ESaver... -
Page 10: Main Display
By pressing the symbol a new display wil appear with the data of this device. By pressing "START" in the main display the ESaver will start up. Main display ESaver in operation Volledige bedieningshandleiding 2 © Bredenoord 2017... - Page 11 Display "Genset" Display "Battery status" Display "Consum er" Volledige bedieningshandleiding 2 © Bredenoord 2017...
-
Page 12: Reading Data
(%). Countdown will start when the power stays between certain values Start L1/2/3: Shows on which phase the peakstart is occured. Battery synch: Is shown when the battery is synchronising and how long this will continue. Volledige bedieningshandleiding 2 © Bredenoord 2017... - Page 13 With pressing button (B) the next display will appear. Press "Week timer" will open a new display. 9. ESaver in operation 10. Generator running hours 11. Supplied energy 12. Charge cycle battery 13. Time till next service 14. Weektimer Volledige bedieningshandleiding 2 © Bredenoord 2017...
-
Page 14: Timer
Manually starting w ith button 2, for exam ple if the w ork once begins earlier or if the settings of the tim er are m odified: The diesel genset starts m anually. At the sw itch off point (exam ple 21:00 hour) the diesel genset stops. Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 15: Testing Diesel Genset
On the next sw itch on point the diesel genset starts again. Testing diesel genset · Turn the selector switch (1) to “ON”. · Start the ESaver · Press arrow button, untill picture D will appear in the display. · Press "START" button (2). Volledige bedieningshandleiding 2 © Bredenoord 2017... - Page 16 · The remark ("Link generator OK") will appear. · One smiley will appear if the genset is connected correctly. · After this the charging will be checked ("Checking charging please wait"). Volledige bedieningshandleiding 2 © Bredenoord 2017...
-
Page 17: Construction
Construction Front Back 1. Selector switch 2. Touch screen 3. Battery monitor 4. Emergency stop 5. Inverters Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 18: Service
In the service menu the following options are available: 1. ESaver start/stop 2. Reset service time (in Till service a desired value can be entered) 3. Charging battery till 95% 4. Charging battery till 100% 5. Change language Volledige bedieningshandleiding 2 © Bredenoord 2017... - Page 19 The start/stop conditions can be adjusted by the service engineer. Make sure that the STOP conditons is always lower than the START condition The countdown range is set automatically. Only the minimum and maximum countdown timers need sto be set. Volledige bedieningshandleiding 2 © Bredenoord 2017...
- Page 20 A. Status ESaver B. Reset data C. Adjusting the clock D. Main menu settings E. Display settings Volledige bedieningshandleiding 2 © Bredenoord 2017...
-
Page 21: Trouble-Shooting
(generally current limiter on generator supply) The charger does not operate. MultiPlus is in “Bulk protection” Check your batteries. “Bulk” LED f lashes and “Mains on” mode thus, the maximum bulk LED illuminates Volledige bedieningshandleiding 2 © Bredenoord 2017... - Page 22 1 minute, the temperature sensor should be replaced Should you experience an error that is not listed above and/or in the documentation of the inverters please contact the service department of Bredenoord. Volledige bedieningshandleiding 2 © Bredenoord 2017...
-
Page 23: Moving The Esaver
When moving the ESaver by means of a forklift it’s important to keep the ESaver as straight as possible to prevent falling from the lifting forks. Keep in mind during lifting that the centre of gravity of the ESaver lies beneath the lifting eye. Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 24: Maintenance
Maintenance This chapter explains how to execute maintenance on your Bredenoord ESaver. Regular maintenance will not only prolong the life of the ESaver, but is also vital for the safety of the users. The following points should be considered for safety during maintenance: Always make the installation voltage free when proceeding with maintenance. -
Page 25: Servicing
Protections o Voltage Volt : _____________ o Frequency : _____________ o Charge batteries If defects are found during maintenance they will be resolved directly, if possible, in consultation with the customer. Comments customer/technician: Volledige bedieningshandleiding 2 © Bredenoord 2017... -
Page 26: Expiring Of The Warranty
Expiring of the warranty The warranty of the ESaver provided by Bredenoord expires directly if: · The maintenance on the ESaver is not carried out as specified by the manufacturer. · (Safety) components of the ESaver are removed and not placed back before the ESaver is being put in operation. -
Page 27: Technical Data
Voltage and frequency 15 kVA Apparent power 12 kW Real power 15 kVA + power of diesel genset Peak power 15 kVA Max. step load 48 V 660 Ah Battery pack 21 kWh Battery capacity Volledige bedieningshandleiding 2 © Bredenoord 2017...
