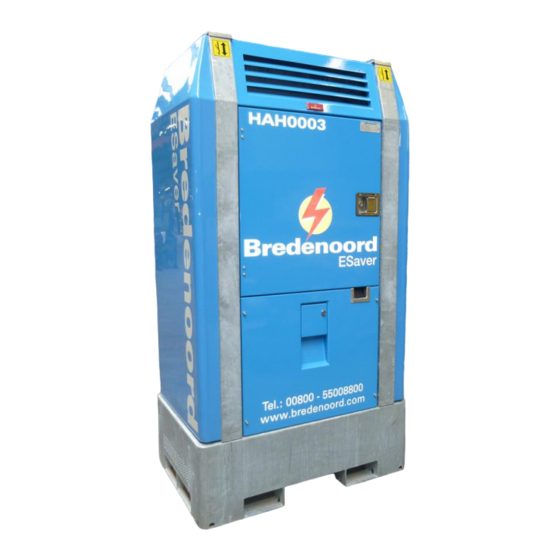

Bredenoord ESaver III Short Operation Manual
Hide thumbs
Also See for ESaver III:
- Complete operation manual (25 pages) ,
- Operation manual (13 pages) ,
- Operation manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bredenoord ESaver III
Summary of Contents for Bredenoord ESaver III

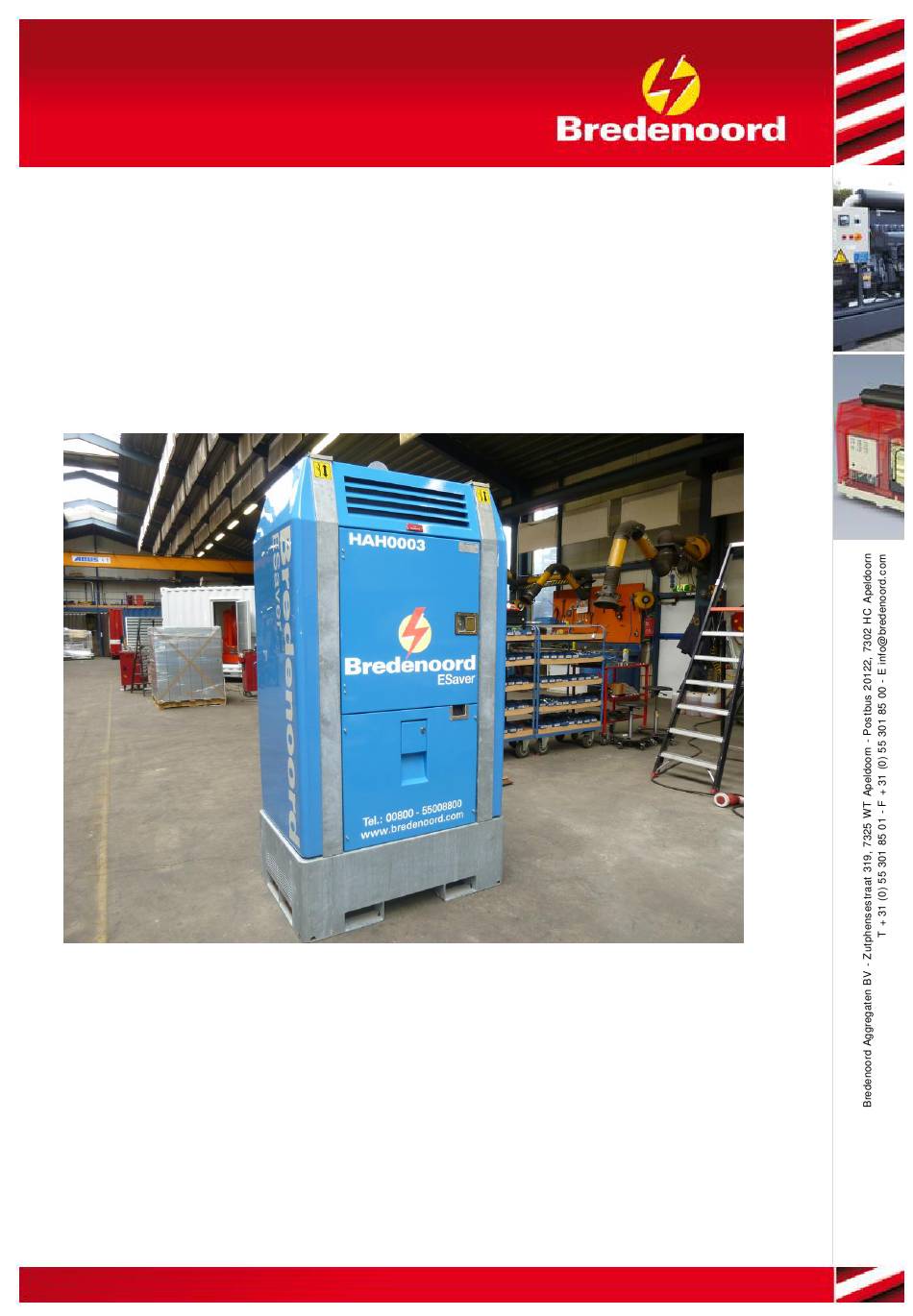

- Page 1 Shortened operation manual ESaver III HAH0003 - HAH0012 15 kVA Controller type: Mitsubishi PLC www.bredenoord.com © Bredenoord Aggregaten 2013...
- Page 2 Connection of the ESaver This chapter describes how the power cables have to be connected. Connecting power cables The ESaver works only with a clockwise rotation field! Shortened operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
- Page 3 Turn the selector switch (1) to “OFF” Alarm reset Turn the selector switch (1) to “OFF” Turn the selector switch (1) to “ON” Press the button "START" (2). The ESaver starts! Switch on the main switch (4) Shortened operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
- Page 4 Press the arrow buttons, so that screen D appears Press the button "START" (2) Screen E appears ("Controle laden even geduld") If the diesel genset is working properly, screen F appears ("Koppeling aggregaat OK") Shortened operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
- Page 5 Press the arrow buttons (B) so that the screens - indicated below - appears. 3. Power genset 4. Status ESaver 5. Power user 6. Battery status 7. Alarms 8. Timer genset 9. Running hours ESaver 10.Running hours genset 11.Charge cycles battery Screen with alarms Shortened operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
- Page 6 Construction Front Back 1. Selector switch 2. Touch screen 3. Battery monitor 4. Emergency stop 5. Inverters Shortened operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
- Page 7 Norm al functioning tim er: At the sw itch on point (exam ple 8:00 hour) the diesel genset starts. At the sw itch off point (exam ple 21:00 hour) the diesel genset stops. Shortened operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
- Page 8 At the sw itch on point (exam ple 8:00 hour) the diesel genset starts. Then the diesel genset stops m anually. On the next sw itch on point the diesel genset starts again. Shortened operation manual version 2.4.0 © Bredenoord Aggregaten 2013...
