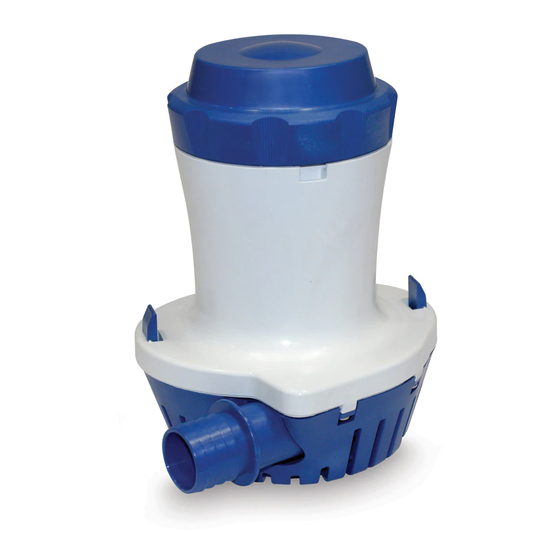

SHURflo 1500 Installation & Operation Instructions

Bait & Livewell Pump Installation & Operation Instructions
MOUNTING (Suggested installation & operation only. Your installation may vary)
Mount scoop-type thru-hull [high speed pick-up] to hull. Do not drive screws through hull! Below water level thru-hull fittings must
have a seacock shut-off valve. Install a 1" NPT-M brass nipple fitting into pump inlet and mount directly to seacock.

PLUMBING

Use smooth I.D. discharge tubing . Tubing should be rated for below water line use. Always use double clamps for connec-

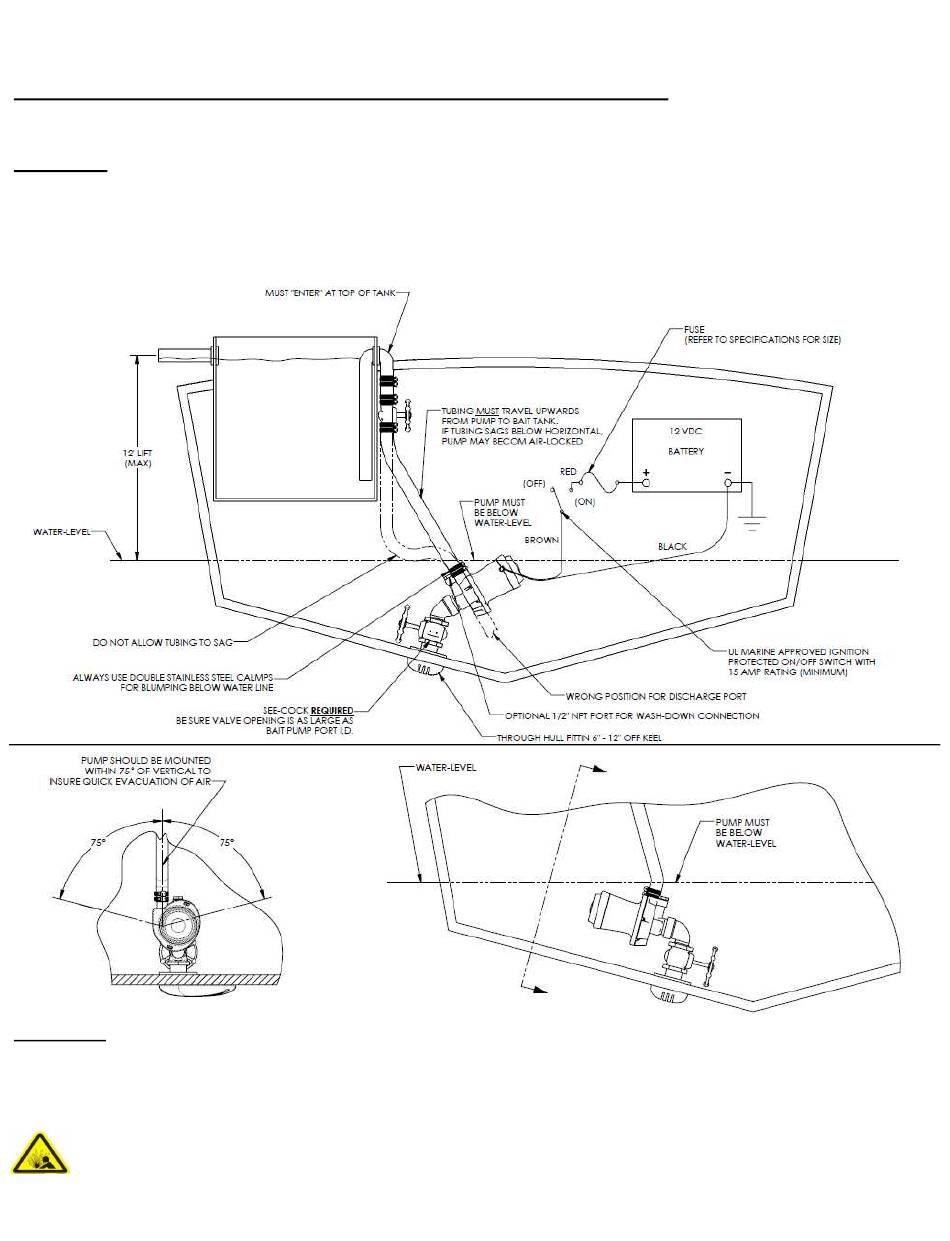

tions below the water line. Tubing should enter tank at top to avoid tank draining while pump is off. (See illustration for recom-
mended installation).
Avoid airlock & maximize performance: Avoid any sagging or loops in the tubing. Tubing must go up from pump to tank. Use full
-flow style valves only. Valve is used to regulate flow to tank while at rest and while under way (2 different settings).
Other installation options:

ELECTRICAL

Use 16GA wire for all circuits. If installation is over 20 feet, use 14GA wire. Brown pump wire must be connected to positive power. When the controller
detects a lock rotor condition (high amps) for more than 10 seconds it will turn the pump off until power gets reset. Use waterproof connectors and splices. Attach
all wires to UL Marine approved duty switch rated at or above 15 amps. Wire connections should be made above water level at the highest possible position.
Seal wire connections to prevent corrosion and electrolysis.
Always use fuse with amps rating specified on pump label. Failure to do so may result in serious personal injury, fire hazards and will void
WARNING
the warranty.
911-1000-G Page 1 of 2
