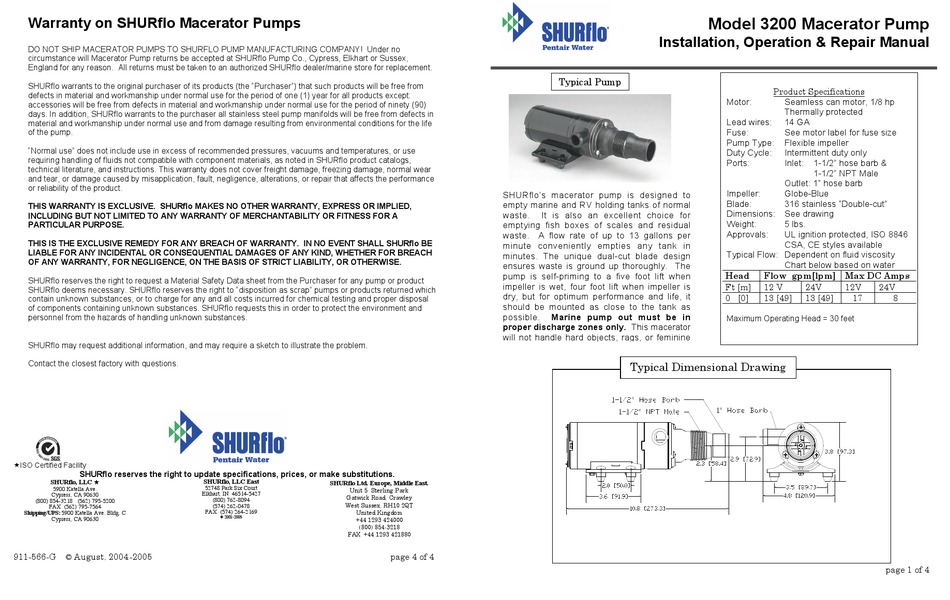

Warranty on SHURflo Macerator Pumps

DO NOT SHIP MACERATOR PUMPS TO SHURFLO PUMP MANUFACTURING COMPANY! Under no
circumstance will Macerator Pump returns be accepted at SHURflo Pump Co., Cypress, Elkhart or Sussex,
England for any reason. All returns must be taken to an authorized SHURflo dealer/marine store for replacement.
SHURflo warrants to the original purchaser of its products (the "Purchaser") that such products will be free from
defects in material and workmanship under normal use for the period of one (1) year for all products except:
accessories will be free from defects in material and workmanship under normal use for the period of ninety (90)
days. In addition, SHURflo warrants to the purchaser all stainless steel pump manifolds will be free from defects in
material and workmanship under normal use and from damage resulting from environmental conditions for the life
of the pump.
"Normal use" does not include use in excess of recommended pressures, vacuums and temperatures, or use
requiring handling of fluids not compatible with component materials, as noted in SHURflo product catalogs,
technical literature, and instructions. This warranty does not cover freight damage, freezing damage, normal wear
and tear, or damage caused by misapplication, fault, negligence, alterations, or repair that affects the performance
or reliability of the product.
THIS WARRANTY IS EXCLUSIVE. SHURflo MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
THIS IS THE EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. IN NO EVENT SHALL SHURflo BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER FOR BREACH
OF ANY WARRANTY, FOR NEGLIGENCE, ON THE BASIS OF STRICT LIABILITY, OR OTHERWISE.
SHURflo reserves the right to request a Material Safety Data sheet from the Purchaser for any pump or product
SHURflo deems necessary. SHURflo reserves the right to "disposition as scrap" pumps or products returned which
contain unknown substances, or to charge for any and all costs incurred for chemical testing and proper disposal
of components containing unknown substances. SHURflo requests this in order to protect the environment and
personnel from the hazards of handling unknown substances.
SHURflo may request additional information, and may require a sketch to illustrate the problem.
Contact the closest factory with questions.
ISO Certified Facility
SHURflo reserves the right to update specifications, prices, or make substitutions.
SHURflo, LLC 
5900 Katella Ave.
Cypress, CA 90630
(800) 854-3218 (562) 795-5200
FAX (562) 795-7564
Shipping/UPS: 5900 Katella Ave. Bldg. C
Cypress, CA 90630
911-566-G
©
August, 2004 -2005
SHURflo, LLC East
SHURflo Ltd. Europe, Middle East.
52748 Park Six Court
Unit 5 Sterling Park
Elkhart, IN 46514-5427
Gatwick Road, Crawley
(800) 762-8094
West Sussex, RH10 2QT
(574) 262-0478
United Kingdom
FAX (574) 264-2169
© 2001-2005
+44 1293 424000
(800) 854-3218
FAX +44 1293 421880

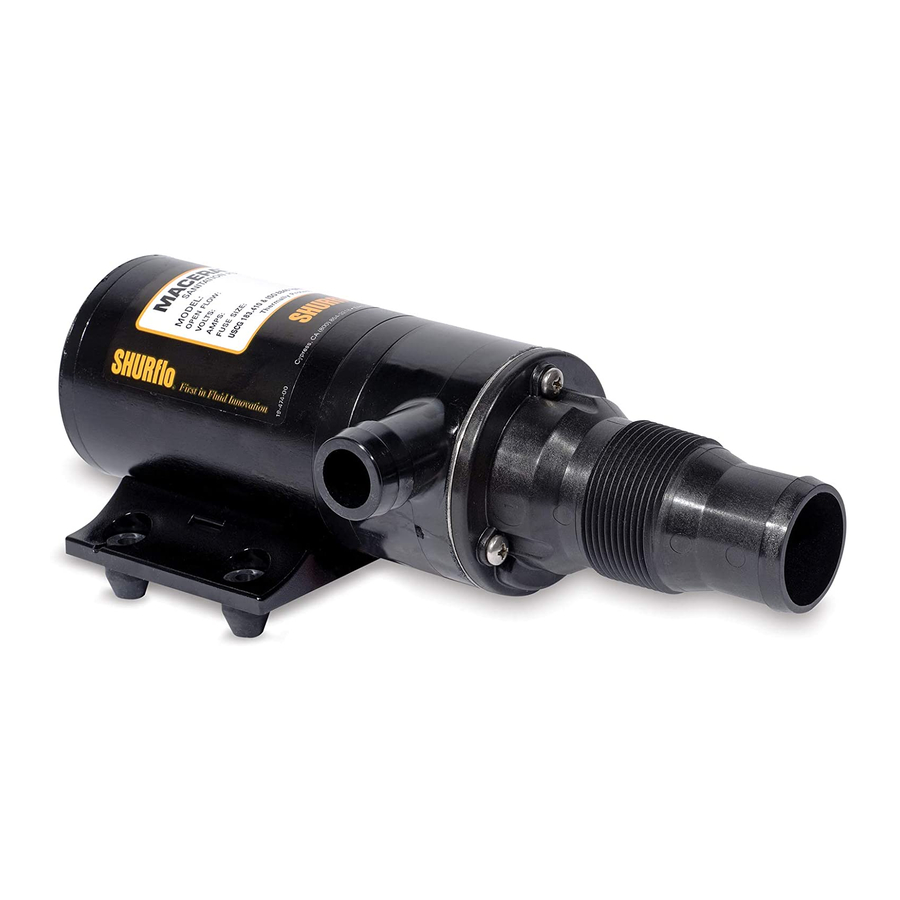

Typical Pump
SHURflo's macerator pump is designed to
empty marine and RV holding tanks of normal
waste.
It is also an excellent choice for
emptying fish boxes of scales and residual
waste. A flow rate of up to 13 gallons per
minute conveniently empties any tank in
minutes. The unique dual-cut blade design
ensures waste is ground up thoroughly. The
pump is self-priming to a five foot lift when
impeller is wet, four foot lift when impeller is
dry, but for optimum performance and life, it
should be mounted as close to the tank as
possible.
Marine pump out must be in
proper discharge zones only. This macerator
will not handle hard objects, rags, or feminine
napkins.
page 4 of 4
Model 3200 Macerator Pump
Installation, Operation & Repair Manual

Product Specifications

Motor:
Seamless can motor, 1/8 hp
Thermally protected
Lead wires:
14 GA
Fuse:
See motor label for fuse size
Pump Type:
Flexible impeller
Duty Cycle:
Intermittent duty only
Ports:
Inlet:
Outlet: 1" hose barb
Impeller:
Globe-Blue
Blade:
316 stainless "Double-cut"
Dimensions: See drawing
Weight:
5 lbs.
Approvals:
UL ignition protected, ISO 8846
CSA, CE styles available
Typical Flow: Dependent on fluid viscosity
Chart below based on water
Head
Flow gpm[lpm] Max DC Amps
Ft [m]
12 V
24V
0 [0]
13 [49]
13 [49]
Maximum Operating Head = 30 feet
Typical Dimensional Drawing
1-1/2" hose barb &
1-1/2" NPT Male
12V
24V
17
8
page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3200 and is the answer not in the manual?

Questions and answers

steve wasson
March 9, 2025

can the discharge be rotated 180 degrees ?

1 comments:
Mr. Anderson
May 14, 2025

Yes, the discharge of the SHURflo 3200 can be rotated 180 degrees. This may involve removing the two drawbolts that hold the motor together and rotating the end housing 180°, which also turns the pump. This can allow the discharge to be on the opposite side without other major modifications, assuming there are no reference tabs or keys.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for SHURflo 3200

  • Page 1 (90) Thermally protected days. In addition, SHURflo warrants to the purchaser all stainless steel pump manifolds will be free from defects in Lead wires:...
  • Page 2: Electrical Connections

    Electrical Connections Maintenance: Turn off all power! Part and Kit Lists Item Description Qty. WARNING: If the pump is operated in an area containing flammable vapors, the wire leads must be joined by Rear end cap/ motor shaft slot access: Cover Screw insulated mechanical locking connectors.
