Dimensions - Watts OneFlow OFPSYS EU Installation And Operation Manual

UK
5.

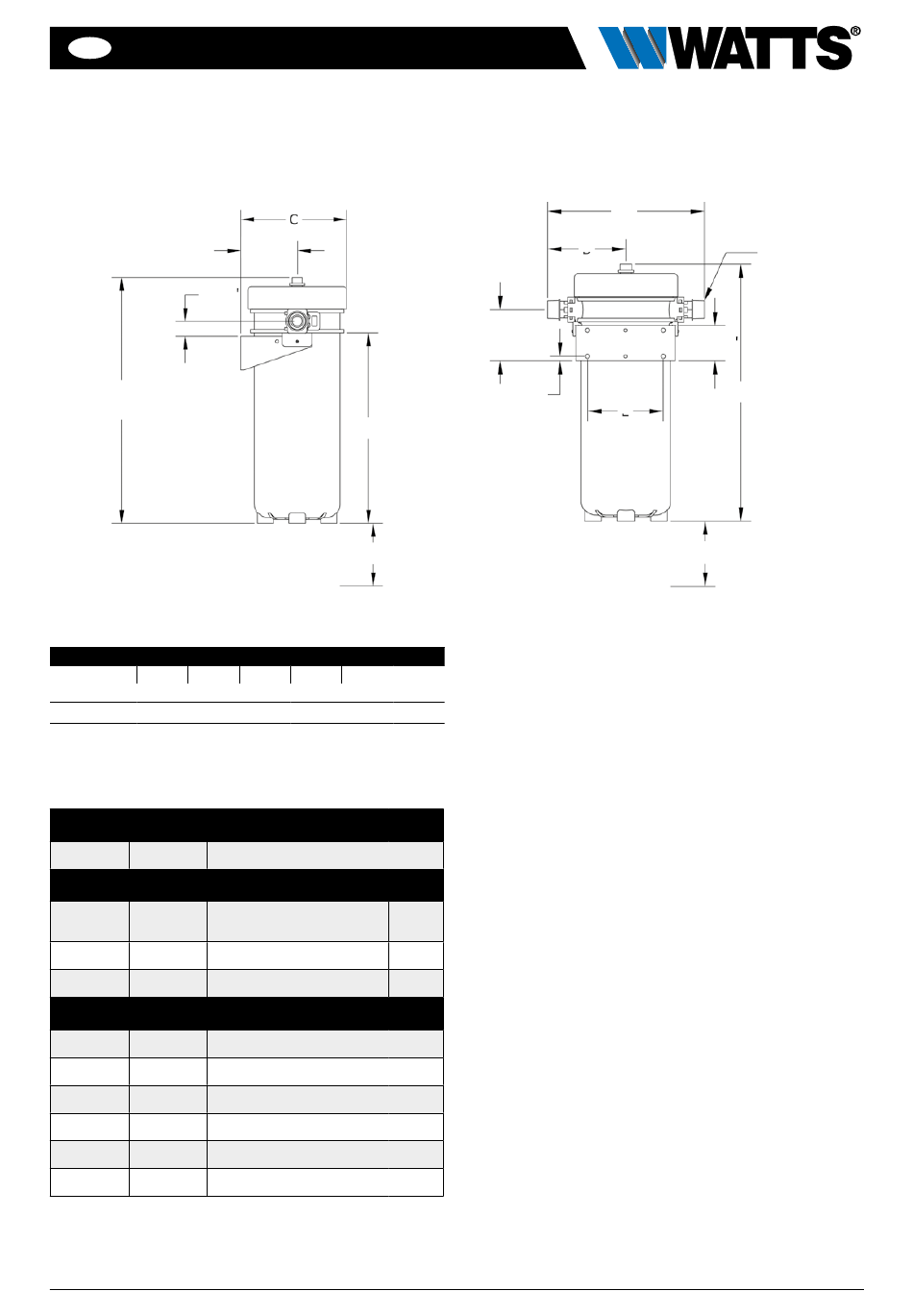

Dimensions

28.58
mm
812.8 mm Min to 60" A.F.F.
Installation Height
Side View
Dimensions — Weights
Model
A B
mm mm
OFPSYS EU 476 144
OneFlow + EU Complete System
®
7100638 OFPSYS OneFlow
OneFlow + EU Water Filter Replacement
®
Radial Flow Carbon
7100639 OFPRFC
Black Cartridge
7100640 OFPSP Scale Prevention Cartridge F41
7100641 OFPCOM Combo Pack
OneFlow + EU System Replacement Parts
®
7300759 OFPHSG Housing and Head Assembly
7300760 OFPAP Inlet/Outet Red Adapter Locking Pin
7300761 OFPA 1-" BSP Inlet / Outlet Adapterss
7300762 OFPOC Outlet Connector
7300763 OFPTOOL Multifunction Tool
7300764 OFPMB System Mounting Bracket
The descriptions and photographs contained in this product specification sheet are supplied by way of information only and are not binding. Watts Industries reserves the right to carry out
any technical and design improvements to its products without prior notice. Warranty: All sales and contracts for sale are expressly conditioned on the buyer's assent to Watts terms and
conditions found on its website at www.wattswater.eu. Watts hereby objects to any term, different from or additional to Watts terms, contained in any buyer communication in any form,
unless agreed to in a writing signed by an officer of Watts.
OFPSYS EU_IOM_IT_W_UK_01_21_Rev0
125.41 mm
368.3 mm
76.2 mm Min. Removal Clearance
C D E Weight
mm mm mm kg
205 289 140 7.5
+ OFPSYS type
®
F40
FP14
D
B
93.66 mm
7.94 mm
E
76.2 mm Min. Removal Clearance
Back View
The overall height and the height of the inlet fitting varies due
to material variations and assembly tolerances. Please allow
additional clearance above the filter for making connections.
Watts Water Technologies, Inc.
1" BSP Inlet
Connection
from water
supply
65.09 mm
A
7
