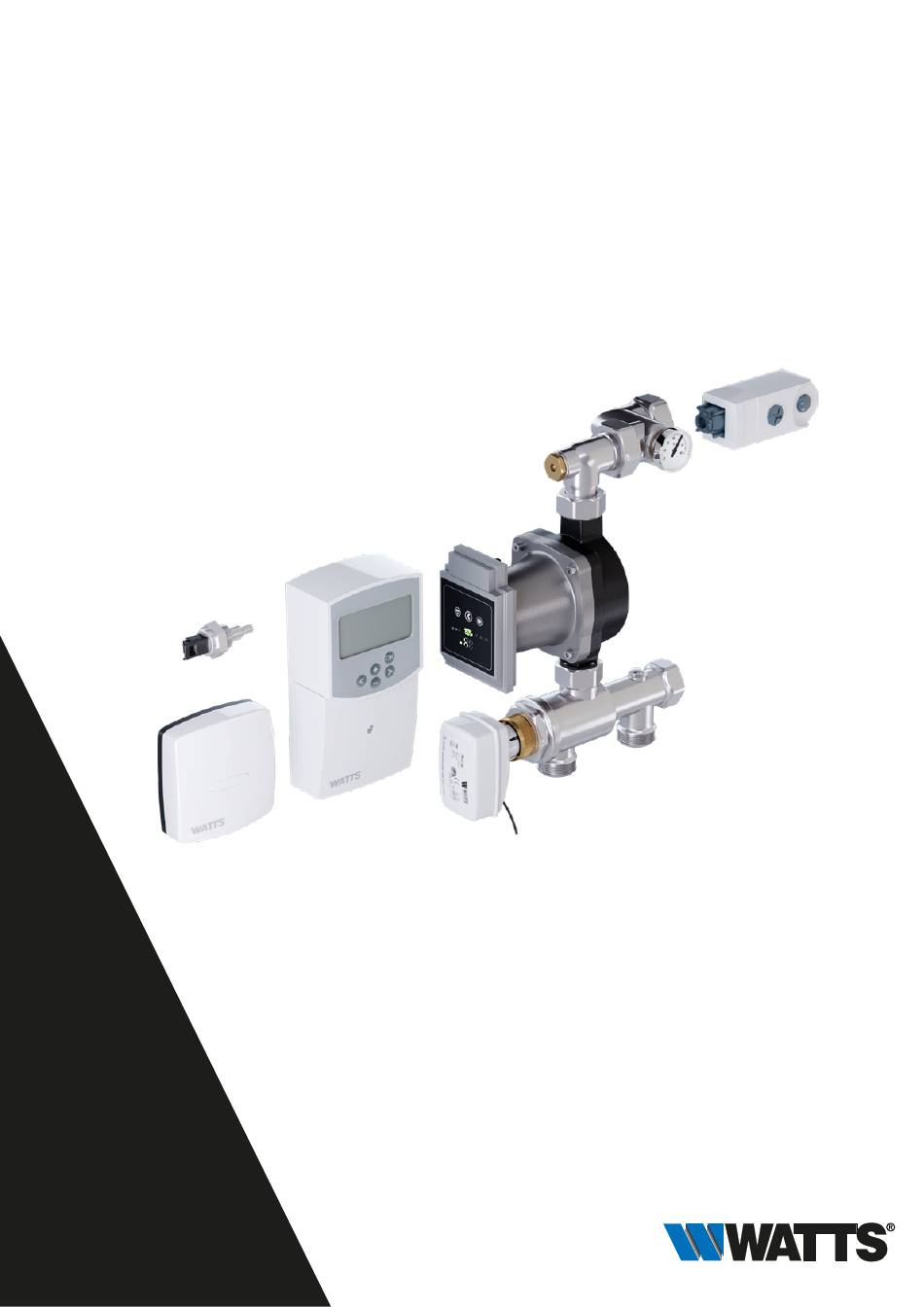

- Page 1 Isomix-HC Control station for load-based control of the flow temperature in surface heating/cooling systems Installation and Operating Manual (translated from the original operating manual) WattsWater.eu...
-
Page 2: Table Of Contents
Safety ............3 This installation and operating manual Presentation of safety information ......3 • is an integral part of the Isomix-HC Important safety information ........3 • contains instructions and information about safe and cor- Intended use .............. 3 rect installation and commissioning of the Isomix Foreseeable misuse ........... -
Page 3: Safety
Operators • The Isomix-HC must not be used if it is damaged or is no longer operating correctly. In this case, contact your spe- Operators are deemed to be qualified if they have read these cialist dealer immediately. -
Page 4: Structure
Technical data can be found in the enclosed technical documentation. Primary return (1" male thread) Surface heating/cooling supply (1" union nut) Surface heating/cooling return (1" union nut) 1) Flow temperature sensor is factory-connected to Isomix-HC ISOMIX-HC-IM-DE-W-UK-01-2021-Rev4 | Part no. 10070436... -
Page 5: Overall Dimensions
ENGLISH 6 Overall dimensions 65,5 G1" G1" 22,5 ca. 98 ca. 212 ca. 109 Fig. 6-1 Overall dimensions 7 Pressure loss diagram 1.000 1.000 10.000 Flow rate [l/h] Fig. 7-1 Pressure loss diagram ISOMIX-HC-IM-DE-W-UK-01-2021-Rev4 | Part no. 10070436... -
Page 6: Installation And Commissioning
NOTICE The installation and commissioning of the Isomix-HC must be carried out only by trained per- sonnel who have been authorized by the manufacturer. 8.1 Examples of applications System diagram of radiator and radiant panel heating Heat System diagram of radiator and radiant panel heating/ cooling generator. -
Page 7: Installation
8.4 Mounting in combination with Heat Interface Unit HIU 2 All screw fittings must be checked and tightened if For use in combination with the Watts HIU 2 Heat Interface necessary prior to installation and commissioning! Unit, the Isomix-HC must be converted (overhead) and the For the torques of the fitting see „5 Technical Data“... -
Page 8: Inbetriebnahme
• Readjust the system settings if required. 9.2 Replacement of wear parts Please note that the Isomix-HC contains parts that, for tech- nical reasons, are subject to wear depending on the intensity of use, even if the specified care and maintenance has been provided. -
Page 9: Troubleshooting
If this is caused by heating up the underfloor heating for the first time, it may start working normally after the heating up phase (2 – 3 days). This is particularly likely in the case of operation at the upper nominal output limit. ISOMIX-HC-IM-DE-W-UK-01-2021-Rev4 | Part no. 10070436... -
Page 10: Disposal
The descriptions and photographs contained in this product specification sheet are supplied by way of information only and are not binding. Watts Industries reserves the right to carry out any technical and design improvements to its products without prior notice. Warranty: All sales and contracts for sale are expressly conditioned on the buyer’s assent to Watts terms and conditions found on its website at www.wattswater.de/agb.
