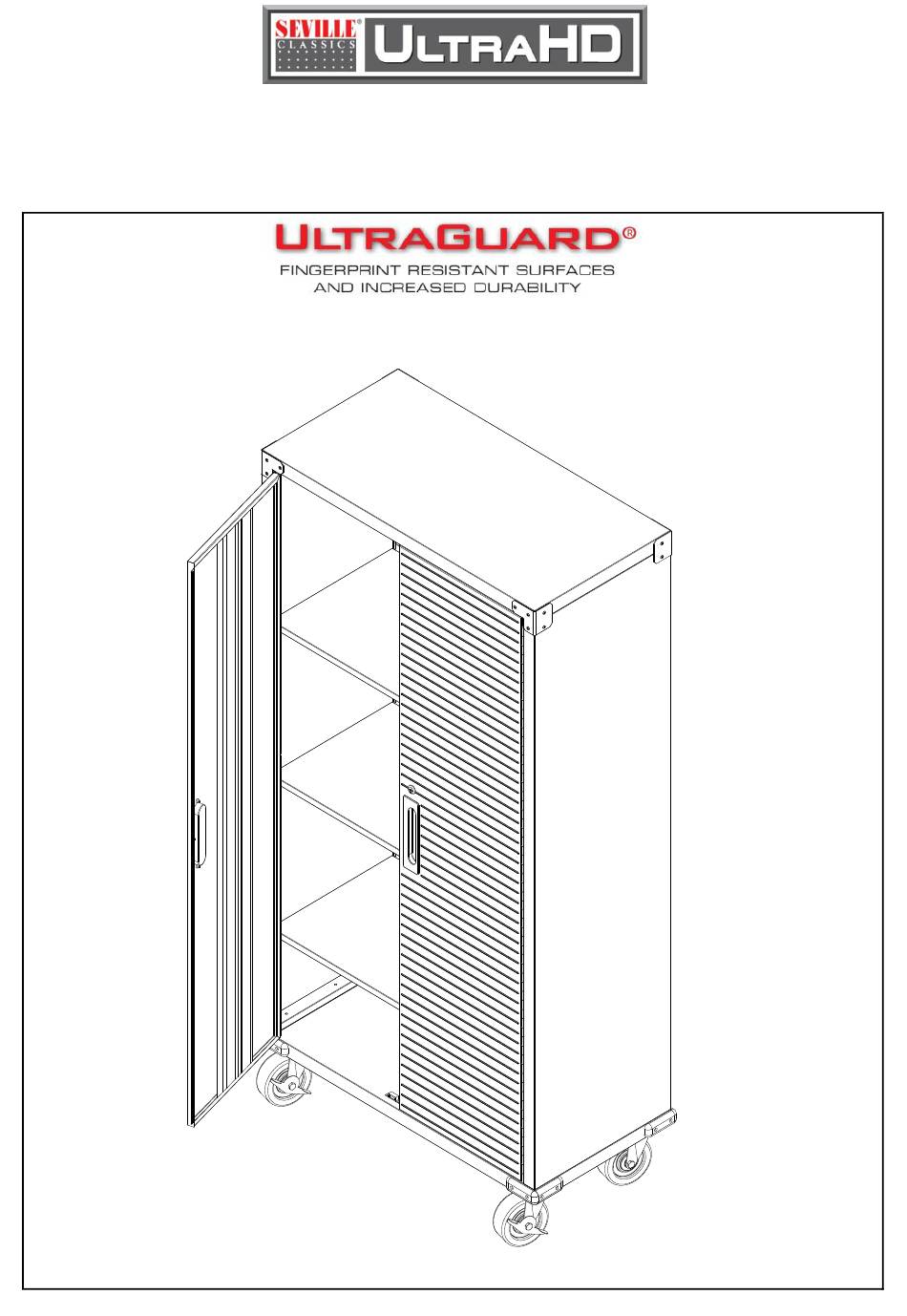

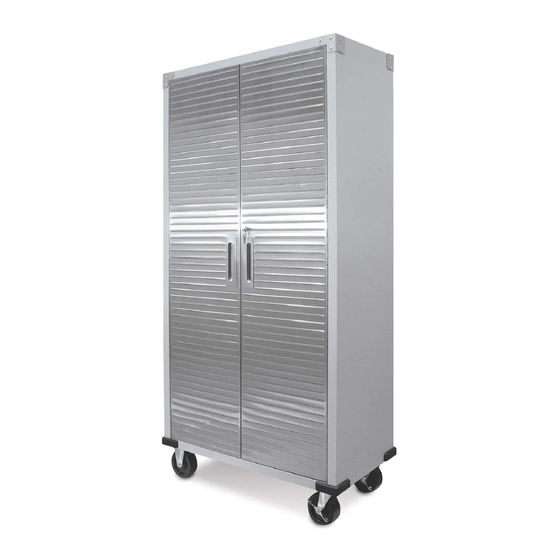

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Tall Storage Cabinet (Model No. 16234) 36 in. W x 18 in. x 72 in. H (91.4 cm x 45.7 cm x 1.83 m) Reference page 10 for special care and maintenance of stainless steel SC200508...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 11) (#1) LEFT PANEL x 1 PC (#2) RIGHT PANEL x 1 PC (#3) TOP PANEL x 1 PC (#4) BOTTOM PANEL x 1 PC (#5) MIDDLE SHELF x 3 PCS... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 11) (#9) MIDDLE BACK PANEL x 2 PCS (#10) BOTTOM BACK PANEL x 1 PC (#12) WHEEL WITH BRAKE x 2 PCS (#13) WHEEL W/O BRAKE x 2 PCS (#14) CORNER PROTECTION x 2 PCS...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 11) (#21-A) SCREWDRIVER x 1 PC (#22) KEY x 2 PCS (#23) MAGNETx 2 PCS (#34) HOOK x 12 PCS (#41) SCREW F (M4x8L) x 80 PCS (#42) SCREW G (M4X30) x 6 PCS...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department. (Please refer to page 11) M8X20 pcs (#27-B) WASHER (M8) x 2 PCS (#27) WASHER (M4) x 2 PCS (#61) Screw O (M4 x 12L) x 2 PCS (#55-A) Wall Anchor x 2 PCS (#55) Screw M (M6 x 50L) x 2 PCS...
- Page 7 UltraHD® Tall Storage Cabinet (Model No. 16234) *NOTE: We recommend using TWO people to assemble the cabinet. TIP: A magnetic screwdriver is included for your convenience. If using a power screwdriver, keep toruqe setting on LOW during assembly. This package contains an updated product construction designed for easier transportation while maintaining a rigid structure.
- Page 8 UltraHD® Tall Storage Cabinet (Model No. 16234) *NOTE: We recommend using TWO people to assemble the cabinet. Install the Back Panels (#8, #9 and #10). Step 3: A. Use 7 pcs of Screws F (#41) to install the Bottom Back Panel (#10) onto both Left and Right Side Panels (#1 and #2) and Bottom Panel (#4).
- Page 9 UltraHD® Tall Storage Cabinet (Model No. 16234) *NOTE: We recommend using TWO people to assemble the cabinet. Install the Middle Shelves (#5). Step 5: A. Decide the height for the each Middle Shelf (#5) and place the Hooks (#34) into the hook slot and push down.
- Page 10 UltraHD® Tall Storage Cabinet (Model No. 16234) *NOTE: We recommend using TWO people to assemble the cabinet. Install the Left and Right Doors (#6 and #7). Step 7: A. Attach the Left Door (#6) to the unit using 10 pcs of Screws F (#41) to tighten it. Note: The screw holes on the door hinge have tolerance, enabling the door to be adjusted and centered in the door frame.
- Page 11 UltraHD® Tall Storage Cabinet (Model No. 16234) *NOTE: We recommend using TWO people to assemble the cabinet. Step 10: Install Mounting Strap (#60) A. Remove 1 pc Screw F (#41) from the back corner protection. B. Attach the Mounting Strap (#60) to the back Corner Protection brackets as the left photo shows using Screw O (#61) and Washer (#27).
-
Page 12: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 13 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
