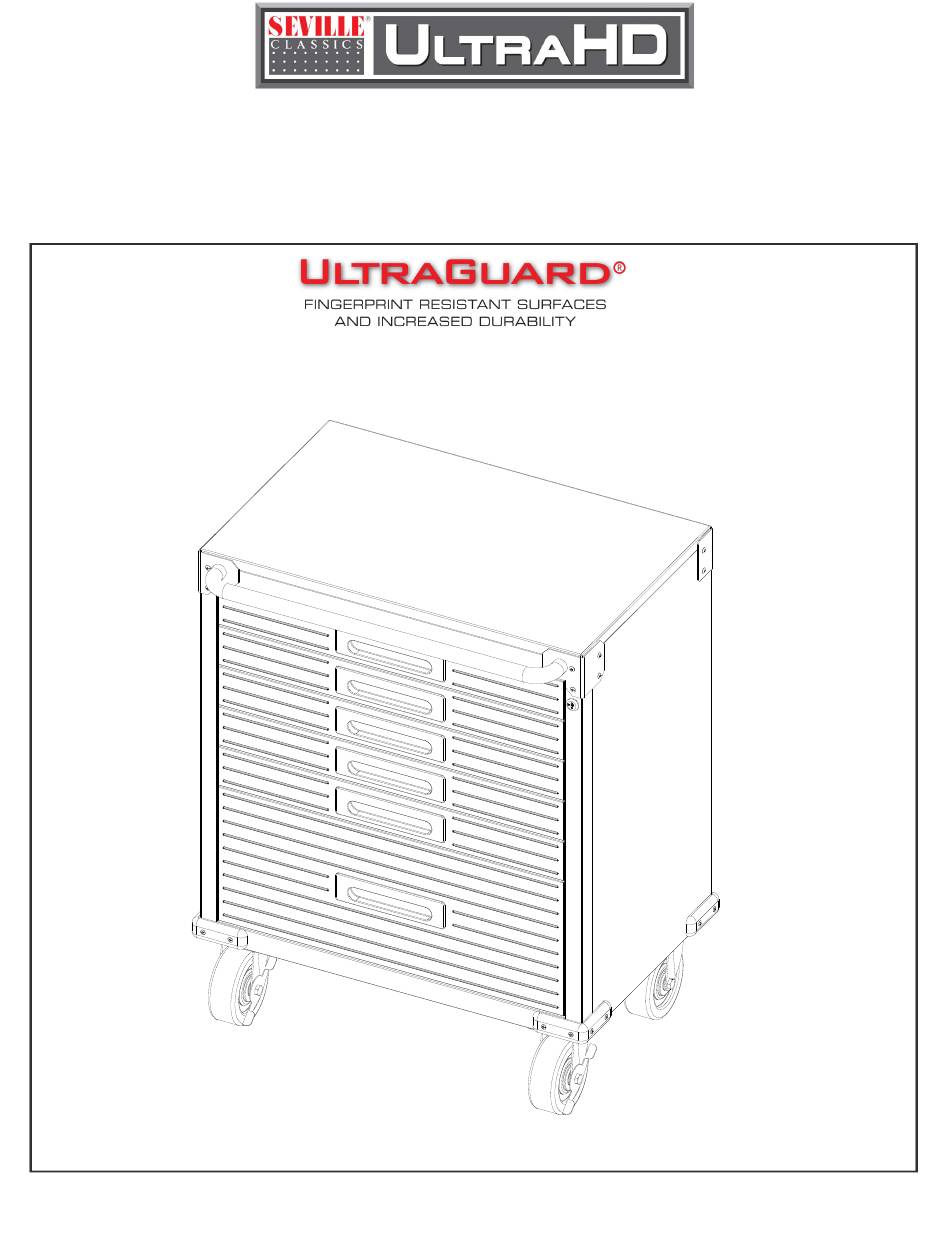

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® 6-Drawer Rolling Cabinet (Model No. 20204, 20147, 20159) Granite Graphite 28 in. W x 18 in. D x 34.5 in. H (71.1 cm x 45.7 cm x 87.6 cm) Reference page 12 for special care and maintenance of stainless steel SC200318...
- Page 3 Large Drawer Small Drawer...
-
Page 4: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please see page 13.) (#1) SOLID HARDWOOD TOP x 1 PC (#2) UPPER BACK PANEL x 1 PC (#3) BOTTOM BACK PANEL x 1 PC (#4) LEFT PANEL x 1 PC (#5) RIGHT PANEL x 1 PC... - Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please see page 13.) (#9) LEFT BACK CORNER PROTECTOR x 1 PC (#10) PUSH BAR x 1 PC (#11) BUMPER x 4 PCS (#12) SWIVEL WHEEL WITH BRAKE x 2 PCS (#13) SWIVEL WHEEL W/O BRAKE x 2 PCS...
- Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please see page 13.) (#17) SCREW D (M8 x 18) x 16 PCS (#18) DRAWER MAT x 6 PCS (#19-1) LARGE DRAWER FRONT PANEL x 1 PC (#19-2) DRAWER BASE PANEL x 6 PCS (#19-3) LARGE DRAWER LEFT PANEL x 1 PC...
- Page 7 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please see page 13.) (#20-3) SMALL DRAWER LEFT PANEL x 5 PCS (#20-4) SMALL DRAWER RIGHT PANEL x 5 PCS (#20-5) SMALL DRAWER BACK PANEL x 5 PCS (#21) SCREWDRIVER x 1 PC (#22) DRAWER KEY x 2 PCS...
- Page 8 UltraHD® 6-Drawer Rolling Cabinet (Model No. 20204, 20147, 20159) *NOTE: We recommend using TWO people to assemble the cabinet. A magnetic screwdriver is included for your TIP: convenience. If using a powered driver, keep torque setting on LOW. Step 1. Open the package, and put the parts aside.
- Page 9 UltraHD® 6-Drawer Rolling Cabinet (Model No. 20204, 20147, 20159) *NOTE: We recommend using TWO people to assemble the cabinet. Install the Right Panel (#5). Step 5. Remove 2 pcs Sliders to create the space needed to use the screwdriver (#21). Then, attach the Right Panel (#5) to Front Frame (#6) and Solid Hardwood Top (#1).
- Page 10 UltraHD® 6-Drawer Rolling Cabinet (Model No. 20204, 20147, 20159) *NOTE: We recommend using TWO people to assemble the cabinet. Step 8. Install Wheels (#12 and #13). Attach Wheels (#12 and #13) to the Bottom Panel (#7) and surrounding frame. Make sure the Swivel Wheels with Brake are installed at the front side.
- Page 11 UltraHD® 6-Drawer Rolling Cabinet (Model No. 20204, 20147, 20159) *NOTE: We recommend using TWO people to assemble the cabinet. Install Large Drawer Side Panels (#19-3 and #19-4). Step 11. Attach Large Drawer Side Panels (#19-3 and #19-4) one at a time, into the back of the stainless steel Large Drawer Front (#19-1).
- Page 12 UltraHD® 6-Drawer Rolling Cabinet (Model No. 20204, 20147, 20159) *NOTE: We recommend using TWO people to assemble the cabinet. WARNING: Please check the key/lock, it must unlocked before placing all the drawers. Step 15: Install Drawers into Cabinet A. Pull out both slides for large drawer. Hook the big drawer between both slides, make sure the slides hooks are insert into the square holes on the drawer side panels...
- Page 13 We hand select the wood for every top to ensure the material is undamaged and naturally beautiful. If the wood top is received with excessive damage or splitting, Seville Classics will guarantee replacement of the top. Variations of color, and minor scratches in the clear clat finish will not be reason for replacement.
-
Page 14: Contact Information
*If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 15 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20262 (Granite) Model No. 20230 (Granite) Model No. 20142 (Graphite) Model No.
