Summary of Contents for Seville Classics UltraHD 20267

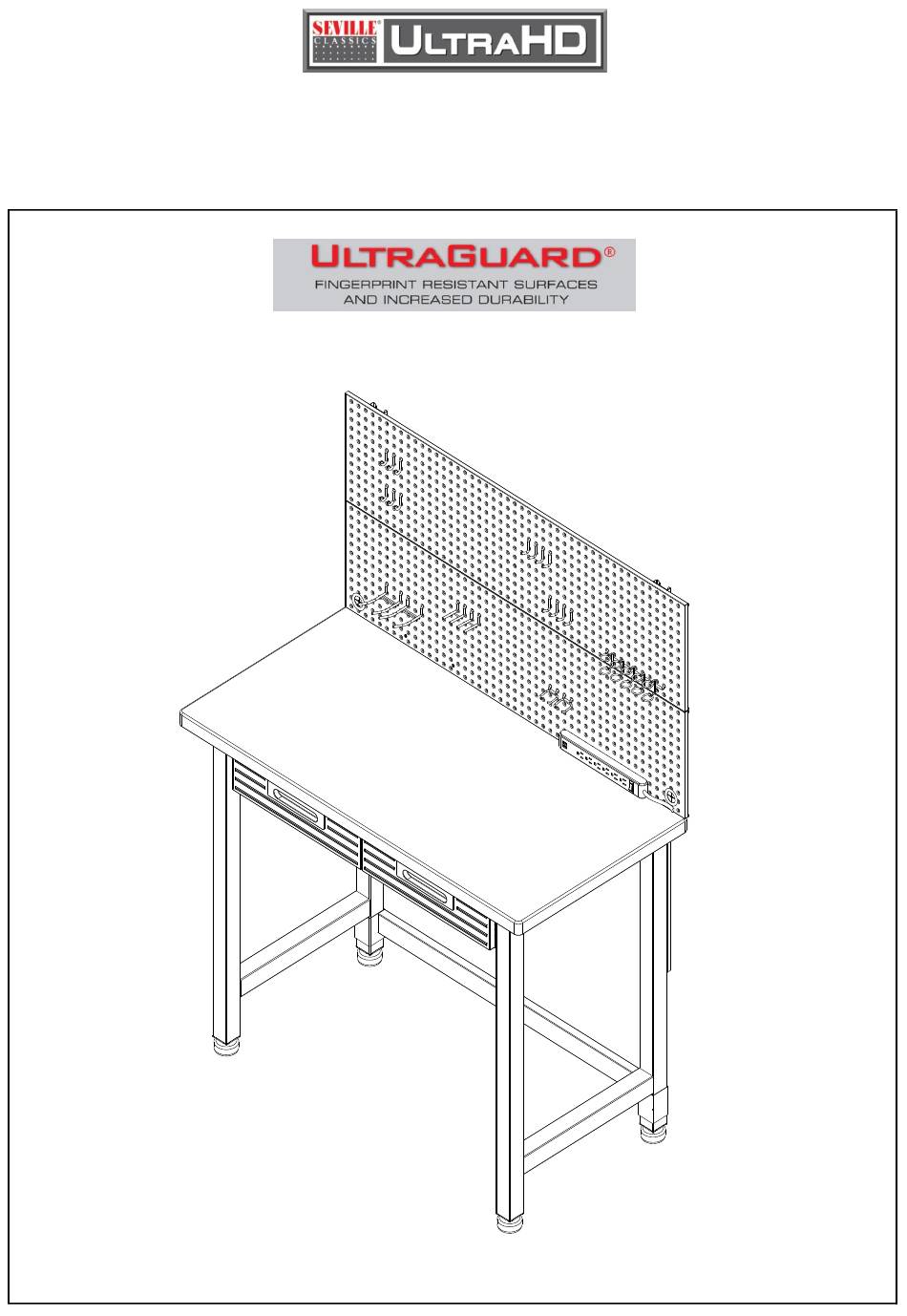

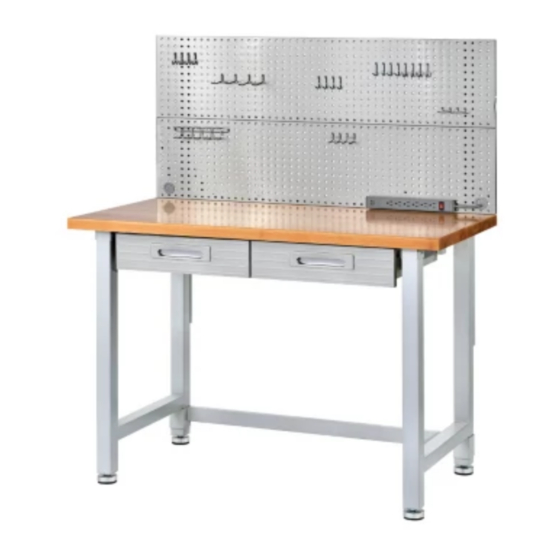

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267) 48in. W X 24in. D X 61.5in H (1.21m W X 60.9cm D X 1.56m H) Reference page 6 for special care and maintenance of stainless steel TR151008...
-
Page 2: Parts List
PARTS LIST ( pg 1 of 7 ) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department (please refer to page 7 of 7). #2-D #3-D #49-A #27-B #20-1 #20-3... - Page 3 ASSEMBLY INSTRUCTIONS (pg 2 of 7) UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267) TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque setting. Back Front Step 1. Install Leg Piece (#5-B). A: Open the package, and put the parts aside.
- Page 4 ASSEMBLY INSTRUCTIONS (pg 3 of 7) UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267) Step 4. Install Pegboard Long Support Bar (#49-A). Turn the workcenter up right, attach Pegboard #49-A Front Long Support Bar (#49-A) to the back of the workbench, line up the screw holes, using 6 pcs of Screw E (#40) with Washer (#27-B) to tighten.
- Page 5 ASSEMBLY INSTRUCTIONS (pg 4 of 7) UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267) #19-2 Step 7: Install Drawer Base Panel (#19-2). Attach the Drawer Base Panel (#19-2) between the Drawer Left and Right Side Panels (#20-3 and #20-4) and into the back of the Drawer Front Panel (#20-1).
- Page 6 ASSEMBLY INSTRUCTIONS (pg 5 of 7) UltraHD Stainless Steel Pegboard Workcenter (Model No. 20267) Step 9: Insert Drawers. Pull out the drawer sliders and inner ball bearing track completely. Then attach and fit the Drawer to the inner track of the sliders and slide drawers WARNING: Pull out the Ball Bearing track towards you.
- Page 7 Variations of color within these standards and minor scratches in the clear coat finish will not be a reason for replacement. If the wood top is received with excessive damage or splitting, Seville Classics will guarantee replacement of the wood top. Restore Shallow Scratches or Chips...
-
Page 8: Contact Information
(pg 7 of 7) *If you are missing any parts, have any questions or need additional assistance with assembly, please contact our bilingual (English & Spanish) Customer Service Department at: Seville Classics, Inc. 19401 South Harborgate Way Torrance, CA 90501... - Page 9 UltraHD Line Model No. 20227 Model No. 20238 UltraHD Rolling Cabinet UltraHD Rolling Cabinet Model No. 20230 Model No. 20262 UltraHD Wall Cabinet UltraHD Rolling Workbench Model No. 20215 Model No. 20255 UltraHD Trash Bin UltraHD Tool Box...
