ASSEMBLY INSTRUCTIONS
UltraHD® Cabinet Stacker
(Model No. WEB347, WEB641)
Granite
Graphite
48in. W x 24in. D x 18.5in. H
(1.21m x 60.9cm x 46.9cm H)
Reference page 10 for special care
and maintenance of stainless steel
Mounts on top of UHD16238, UHD20148 UltaHD Mega Cabinet
Granite
Graphite
SC200318
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Seville Classics UltraHD UltraGuard WEB347
Summary of Contents for Seville Classics UltraHD UltraGuard WEB347

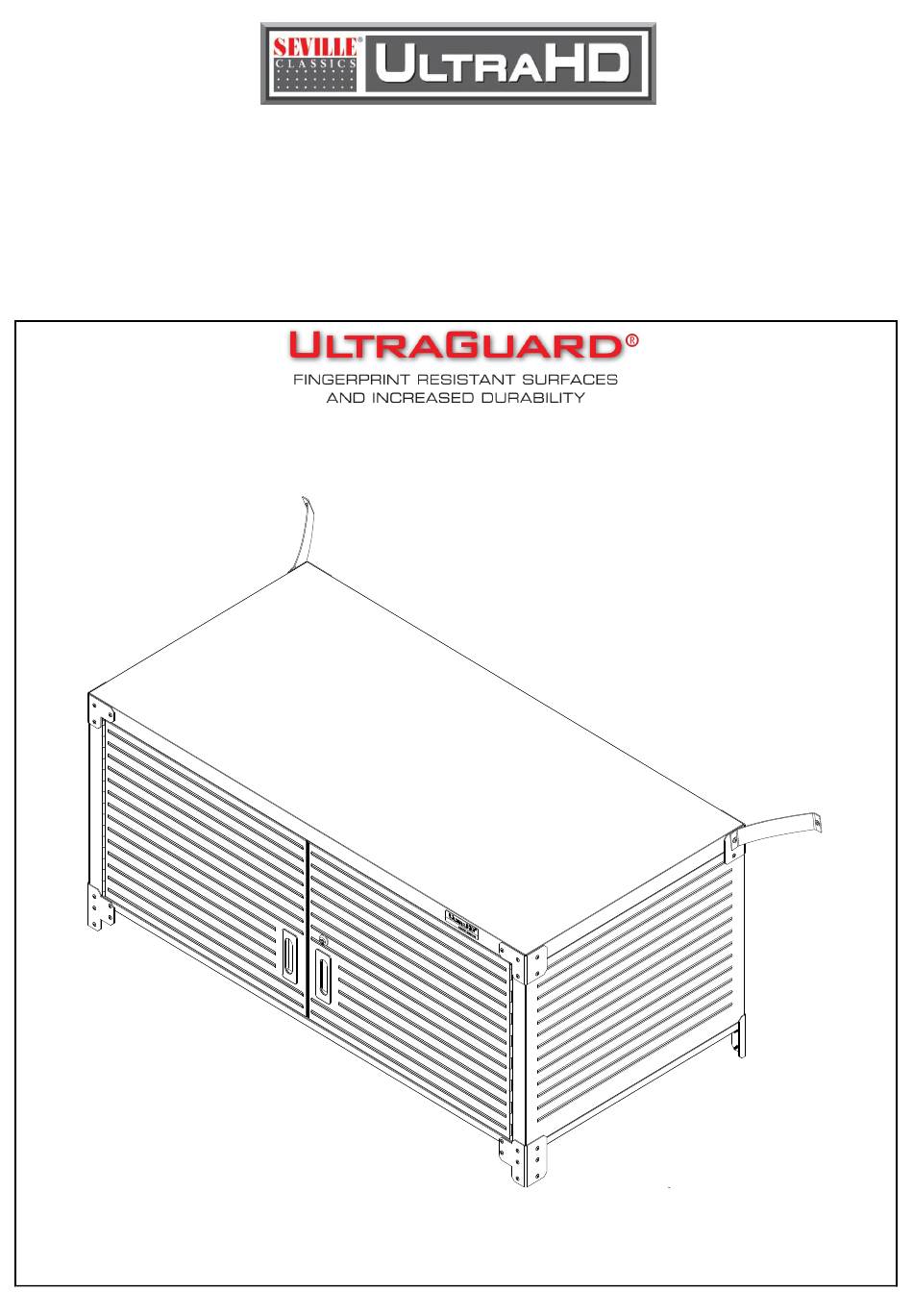

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Cabinet Stacker (Model No. WEB347, WEB641) Granite Graphite 48in. W x 24in. D x 18.5in. H (1.21m x 60.9cm x 46.9cm H) Reference page 10 for special care and maintenance of stainless steel Mounts on top of UHD16238, UHD20148 UltaHD Mega Cabinet Granite Graphite SC200318...
-
Page 3: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 11.) (#1) Left Panel x 1 PC (#2) Right Panel x 1 PC (#3) Top Panel x 1 PC (#4) Bottom Panel x 1 PC (#60) Mounting Strap x 2 PCS... - Page 4 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 11.) (#14) Corner Protection A x 2 PCS (#15) Corner Protection B x 2 PCS (#17-A) Left Front Bottom Corner Protection x 1 PC (#18-A) Right Front Bottom Corner Protection x 1 PC (#19-A) Right Back Bottom Corner Protection x 1 PC...
- Page 5 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our customer service department (please see page 11.) (#27) WASHER (M4) x 2 PCS (#23) Magnet x 2 PCS M8X20 pcs (#41) Screw F (M4 x 8L) x 50 PCS (#27-B) WASHER (M8) x 2 PCS (#42) Screw G (M4 x 30L) x 8 PCS...
- Page 6 UltraHD® Cabinet Stacker (Model No. WEB347, WEB641) *NOTE: We recommend using TWO people to assemble the cabinet* TIP: A magnetic screwdriver is included for your Back convenience. If a power screwdriver is used, keep on a low torque setting. Step 1: Install Right Panel (#2) to the Top Panel (#3) Place the Right Panel (#2) on the ground vertically.
- Page 7 UltraHD® Cabinet Stacker (Model No. WEB347, WEB641) *NOTE: We recommend using TWO people to assemble the cabinet* Step 4: Install Back Panel (#8-A). Place the Back Panel (#8-A) onto both Left and Right Side Panels (#1 and # 2) and Top and Bottom Panel (#3 and 4).
- Page 8 UltraHD® Cabinet Stacker (Model No. WEB347, WEB641) *NOTE: We recommend using TWO people to assemble the cabinet* Step 7: Install Right Door (#7) Attach the Right Door (#7) to the Right Panel (#2). Use 3 pcs Screw F (#41) to tighten the Door Panel.
- Page 9 UltraHD® Cabinet Stacker (Model No. WEB347, WEB641) *NOTE: We recommend using TWO people to assemble the cabinet* Remove the 6 corner screws from the top Step 10: back panel of 16238. Step 11: Attach Cabinet Stacker Model No. WEB347 A. Place Cabinet Stacker Model No. WEB347 on top of 16238.
- Page 10 UltraHD® Cabinet Stacker (Model No. WEB347, WEB641) *NOTE: We recommend using TWO people to assemble the cabinet* Install Mounting Strap (#60) Step 12: A. Remove 1 pc Screw F (#41) from the back corner protection. B. Attach the Mounting Strap (#60) to the back Corner Protection brackets as the left photo shows using Screw O (#61) and Washer (#27).
- Page 11 UltraHD® Cabinet Stacker (Model No. WEB347, WEB641) *NOTE: We recommend using TWO people to assemble the cabinet* Stainless Steel Maintenance: These parts have an UltraGuard® fingerprint resistant finish. Do not use traditional stainless steel cleaners on this unit. Lightly wipe off once a month with clean warm water and a soft cloth (preferably a micro fiber cloth).
-
Page 12: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 13 UltraHD® Line UltraHD® 4-Drawer Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20205 (Granite) Model No. 20292 (Granite) UltraHD® Wall Cabinet with Open Shelf UltraHD® 2-Door Rolling Workbench Model No. 20230 (Granite) Model No. 20262 (Granite) Model No. 20140 (Graphite) Model No.
