Eden 94114-EDAMZ Manual

94114-INS 29.7×21cm

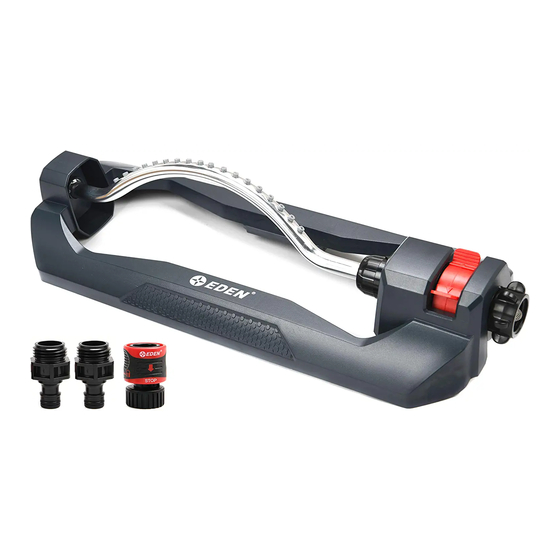

18 NOZZLES OSCILLATING SPRINKLER

Use this manual to familiarize yourself with the various parts and components, the use, handling and features of the
sprinkler. Save this manual for future reference.

Get To Know Your Sprinkler

1. Base 5. Hose-end
2. Spray nozzles (18) 6. Inlet lter
3. Oscillator tube 7. Cleaning pin
4. Sliding tabs
4.
6.
5.

Usage

1. Attach your garden hose to the unit.
2. Use the range sliding tabs to select desired rectangular watering position distance. (Fig 1 & Fig 2)
3.
Turn on the faucet and check to see how the process is working. Make adjustments to suit your needs.
Fig. 1
Speci cations
Plastic nozzle heads : 18
Adjustable range control : Yes
Coverage Max : 4000 sq ft (371 m²)
(Based on 40PSI / 2.76Bar)
2.
1.
3.
Fig. 2
94114-EDAMZ

Maintenance + Care

If your sprinkler begins to display irregular water pressure or is clogged due to dirt buildup, do the following
maintenance task.
1. Remove your hose from your sprinkler.
Notice a small inlet lter from the hose-end of the
oscillator, remove it and run under water to remove
the dirt (Fig. 3).
Fig. 3
inlet lter
7.
3.
Remove the cleaning pin from the opposite end of
the oscillator (Fig. 5).
Fig. 5
cleaning pin

Storage

Drain the sprinkler after use. DO NOT allow water to
freeze in the sprinkler (Fig. 7).
Fig. 7
2. To ush, connect the oscillator to a faucet.
Turn on the faucet and while the water continues
running, spin the tube gently back and forth for few
minutes (Fig 4)
Fig. 4
hose-end
tube
4.
Use the provided cleaning pin to clear any clogs
from the spray nozzles while running water in
step 2 (Fig. 6).
Fig. 6 Fig. 6
cleaning pin cleaning pin
spray nozzles spray nozzles

Tips

1. Think of the best coverage design for the watering
without wasting water resources before placing the
sprinkler in the location where you want to water.
2. Drain any water from the sprinkler after use. This
will preserve the unit for longer lasting use.
3. Place the sprinkler in a dry warm storage area until
it is required.
4. Water only when necessary, preferably in the
morning as this will minimize water loss through
evaporation. To obtain deep root growth,water
deeply but do not water often. Watering every
second day will provide for better water coverage.
Using a timer can be helpful in reducing waste.
Watch water application to avoid water run-o .
