Summary of Contents for CRL H100E10

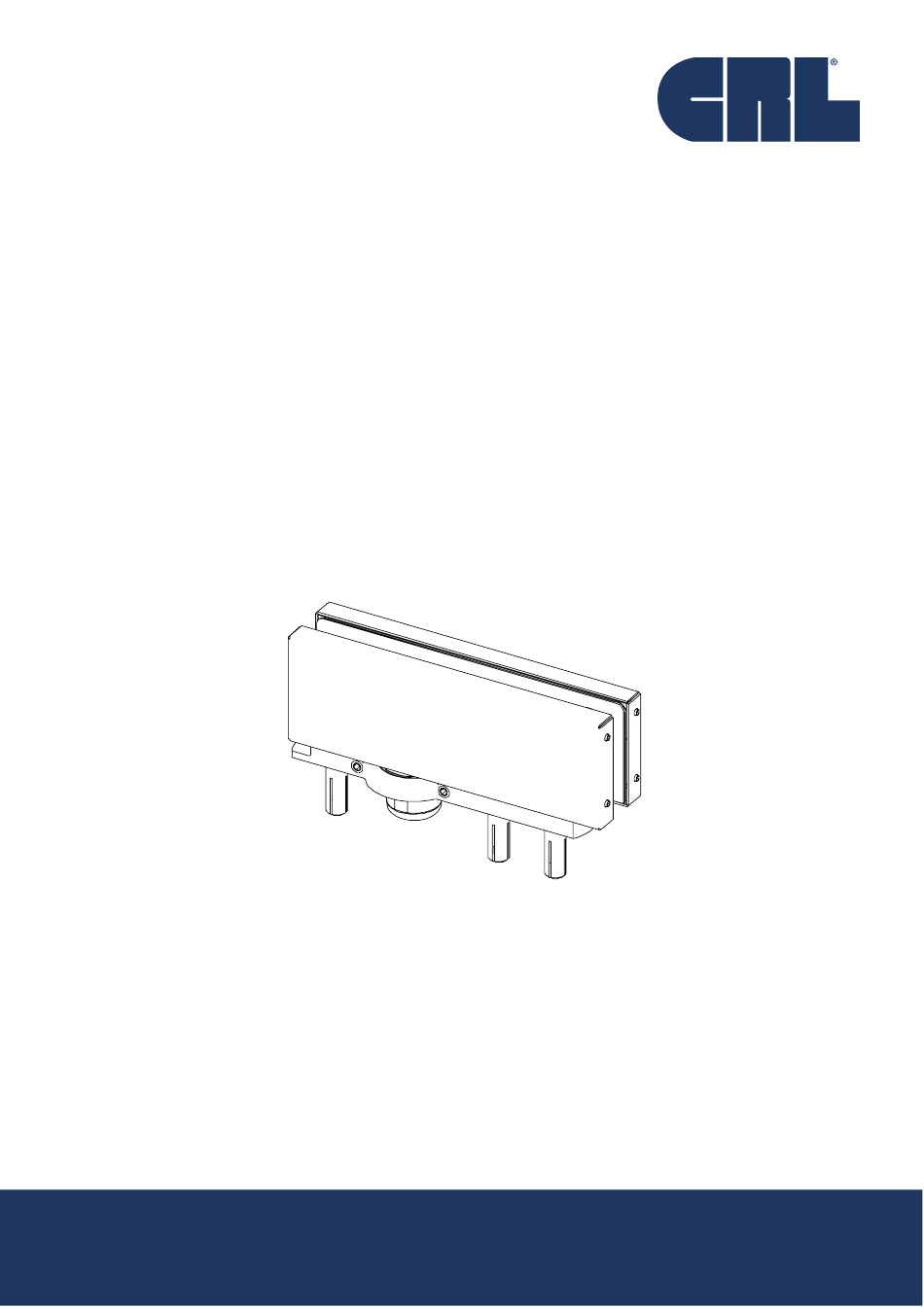

- Page 1 CRL PATCH FITTING HYDRAULIC DOOR HINGE Instructions of assembly and technical details For more information Freephone UK and Ireland on 00 800 0421 6144 | Fax free on 00 800 0262 3299...
- Page 2 CRL Patch Fitting Hydraulic Door Hinge CAUTION For installations in particular environments or climate (ex.wet, acid saline) consult sales office first 8÷13,52 0°-80° -10 °C 1000mm 100kg +50 °C Hydraulic hinge, including brake and closing speed adjustment and the end click of the leaf.
- Page 3 CRL Patch Fitting Hydraulic Door Hinge Installation and adjustment instructions For standard applications place the plate to the TECHNICAL SPECIFICATIONS wall (1) 8 mm BASE PLATE ÷ 13,52 mm 22.5 22.5 1000 mm 100 kg - 15°C +40°C Place the base plate and mark the location of the hole Drill using a Ø...
- Page 4 CRL Patch Fitting Hydraulic Door Hinge Installation and adjustment instructions CRL Unica hydraulic hinge 100E10 Enter the door, possibly sloping for easier insertion. Use the gasket supplied to compensate for different thicknesses of glass (1) and tighten the 4 screws with (Ch3) key (2). See table.
