Y

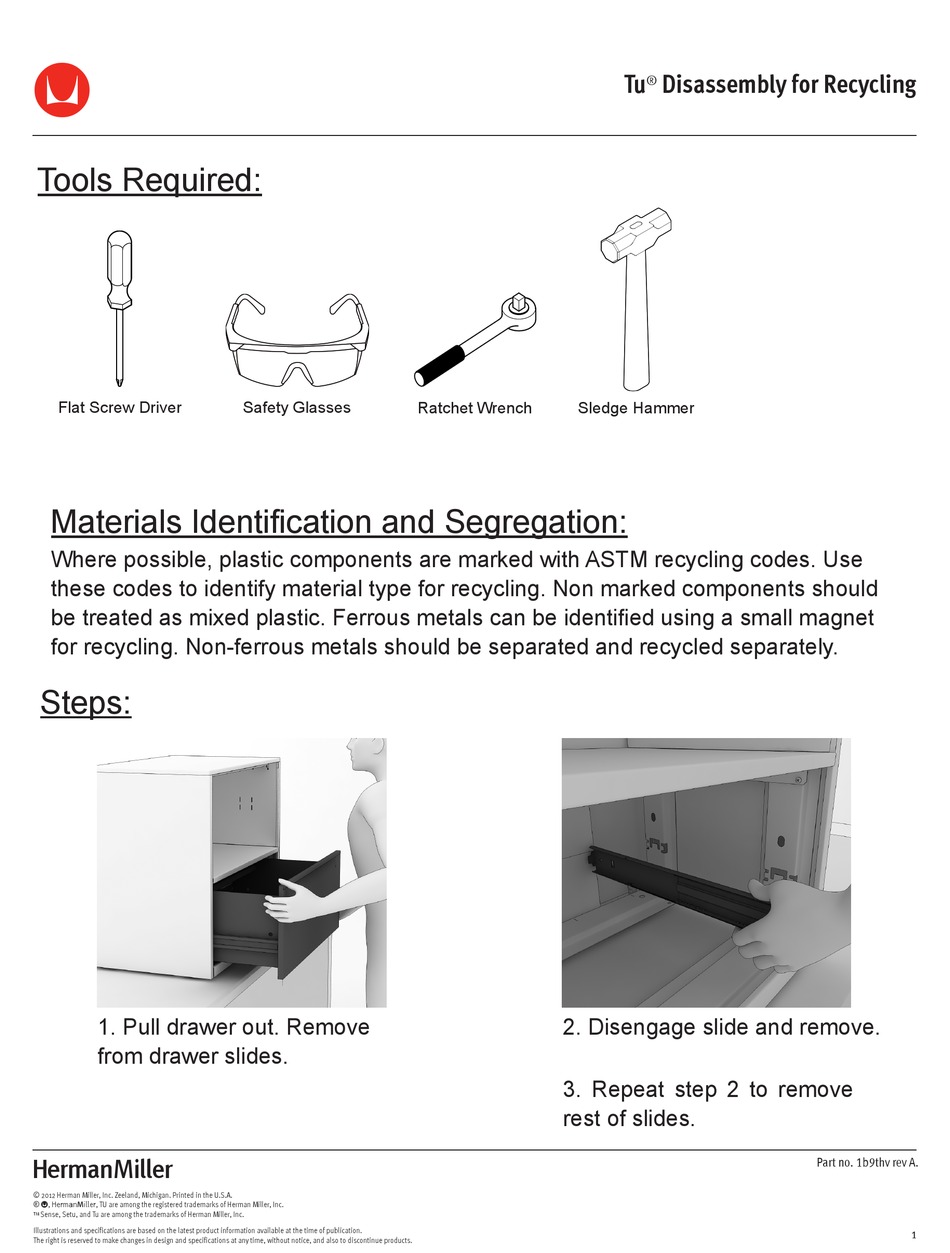

Tools Required:

Flat Screw Driver

Materials Identification and Segregation:

Where possible, plastic components are marked with ASTM recycling codes. Use
these codes to identify material type for recycling. Non marked components should
be treated as mixed plastic. Ferrous metals can be identified using a small magnet
for recycling. Non-ferrous metals should be separated and recycled separately.

Steps:

1. Pull drawer out. Remove
from drawer slides.
Z
© 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, TU are among the registered trademarks of Herman Miller, Inc.
Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Safety Glasses
Ratchet Wrench
Tu
Disassembly for Recycling
®
Sledge Hammer
2. Disengage slide and remove.
3. Repeat step 2 to remove
rest of slides.
Part no. 1b9thv rev A.
