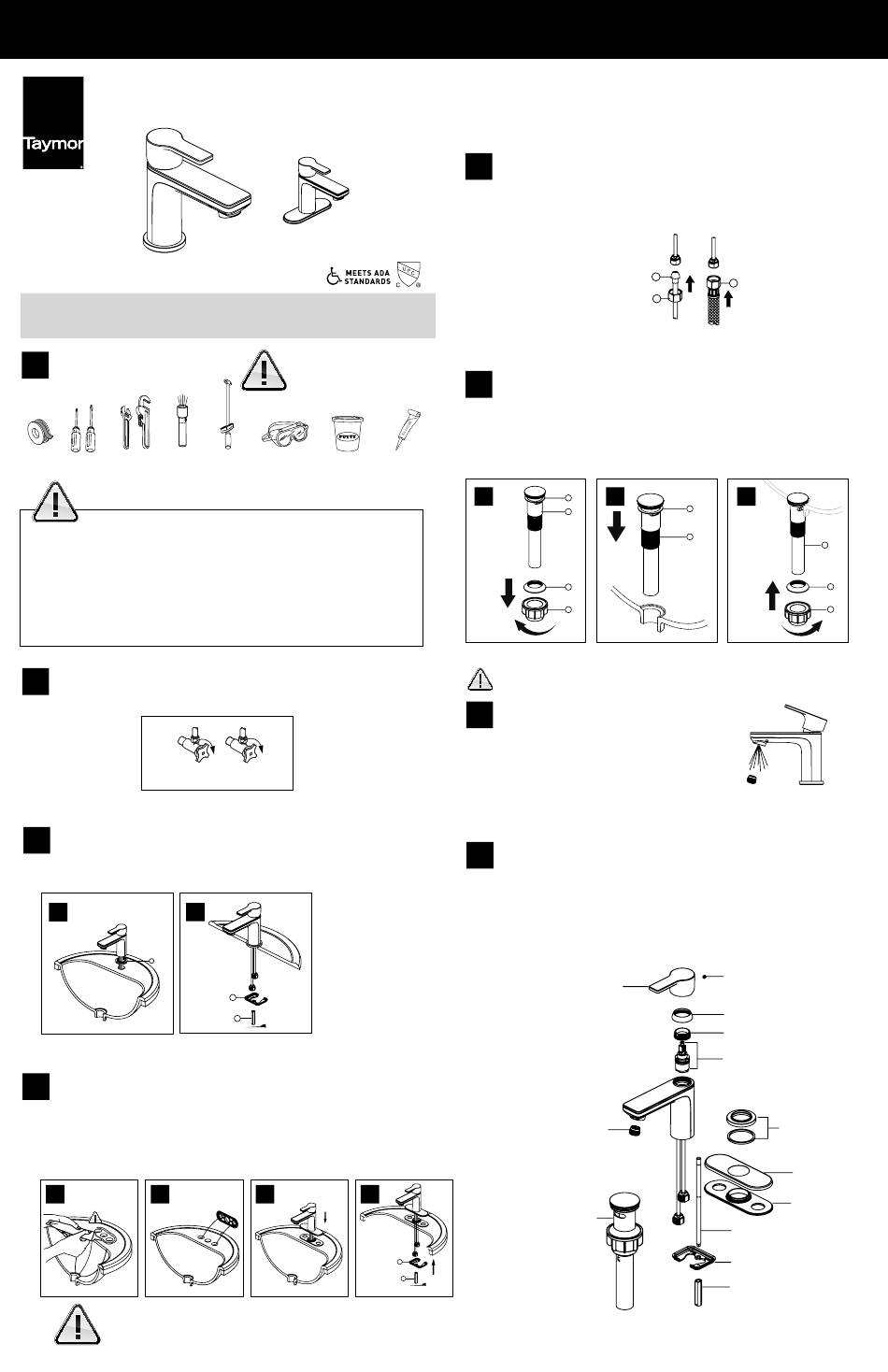

Taymor SPELLBOUND 06-3210P Installation Instructions

INSTALLATION INSTRUCTIONS

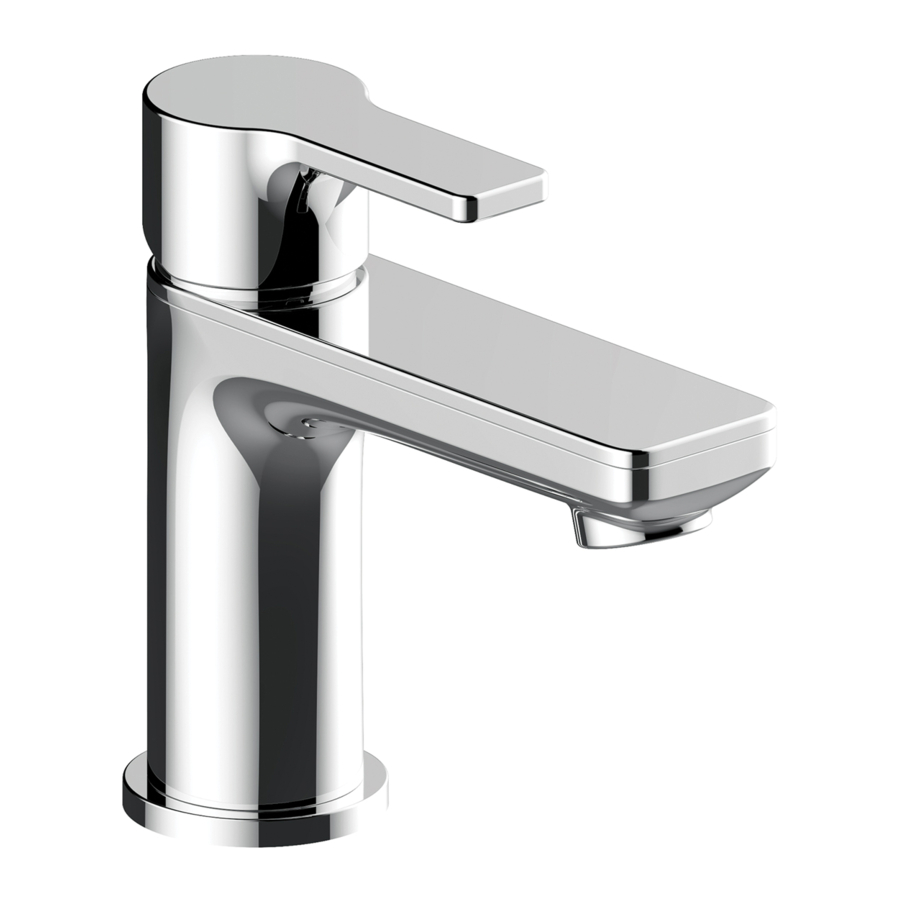

SPELLBOUND 06-3210P/06-3210PBLK
SINGLE HANDLE LAVATORY FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
ASME A112.18.1/CSA B125.1 and NSF-61
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY ENGINEERED
AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.

HAVE BASIC TOOLS READY

1

RECOMMENDED TOOLS:

Teflon tape Screwdrivers Adjustable
Flashlight
wrench and
pipe wrench

WARNING: READ ALL the instructions completely before beginning.

READ ALL warnings, care and maintenance information.
TAYMOR recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774 (EAST) 1-800-387-7064 for additional assistance or service.

TURN OFF THE MAIN WATER SUPPLY

2
Locate water supply inlets and shut off water supply valves. These are usually found under
the sink.
TURN OFF

INSTALLING FAUCET WITH FLANGE

3A
A) Place flange (1) on the bottom of the faucet. Place faucet through mounting hole on sink.
B) From underneath the sink, secure faucet body using washer (1) and nut (2). Do not overtighten.
A
1
3B

INSTALLING FAUCET WITH ESCUTCHEON

A) Apply a bead of plumber's putty or silicone caulk around the sink openings.
B) Install the base plate over the three holes in your sink.
C) With the handle and spout facing forward, carefully install faucet supply hoses through the center hole of sink.
Center faucet body onto escutcheon and base plate.
D) From underneath the sink, secure faucet body using washers (1) and nut (2). Do not overtighten.
A B
Don't use plumber's putty on cultured marble or other composite sinks.
Putty will discolour the sink.
WITH OPTIONAL ESCUTCHEON
Your installation may require new supply
lines. (Supply lines are not included.)
Torque wrench Safety goggles Plumber's putty
TURN OFF
B
1
2
C

ATTACH THE HOT AND COLD SUPPLY LINES

4
Make connections to water lines (not included). Use 1/2" IPS faucet connections (1) and tighten
connections with wrench. Or use the supplied coupling nuts (3) with 3/8" O.D. ball-nose risers (2),
hand tighten only. Do not overtighten.
NOTE:
Do not use plumber's putty,
pipe dope, or any other type
of sealing compound on water
inlet or threads. Additional
compound is not necessary.

INSTALLING PUSH-POP-UP DRAIN

5
A) Remove the bottom gasket (1) and nut (2) from the top gasket (3) and pop-up body (4).
Attach these pieces together by pushing the bottom gasket (1) down into the top of the nut
(2) and twisting together.
B) Insert the pop-up body (1) into the sink. Ensure that the top gasket (2) rests securely
between the top of the sink and the top of the pop-up body (1).
C) From underneath the sink, screw the bottom gasket (1) and nut (2) assembly onto the pop-
Silicone caulk
up body (3) by twisting clockwise until secure.
A
IMPORTANT

FLUSHING THE WATER LINES

6
Remove the aerator by turning it counterclockwise
with the plastic wrench provided. Remove the
internal parts of the aerator by pushing them out
with your fingers. Remove any debris. Turn on hot
and cold water supplies. Turn faucet handles all the
way on and run water through the spout for about a minute to remove debris. While water is running
check all connections for leaks. Reassemble the aerator and screw it back into the spout hand tight.
EXPLODED DIAGRAM FOR
7
REFERENCE
MAINTENANCE Your new faucet is designed
for years of trouble-free performance. Keep
it looking new by cleaning it periodically with
a soft cloth. Avoid abrasive cleaners, steel
wool and harsh chemicals as these will
dull the finish and void your warranty.
D
13 - PUSH-POP-UP ASSEMBLY
1
2
CUSTOMER SERVICE WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
2A
2B
2C
B
3
2
4
1
1
2
2 - SCREW
1 - HANDLE
3 - CAP
4 - BONNET
5 - CARTRIDGE
6 - AERATOR
12 - MOUNTING NUT
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
C
3
1
2
7 - FLANGE
8 - ESCUTCHEON
9 - BASE PLATE
10 - BOLT
11 - WASHER
OCT. 2018
