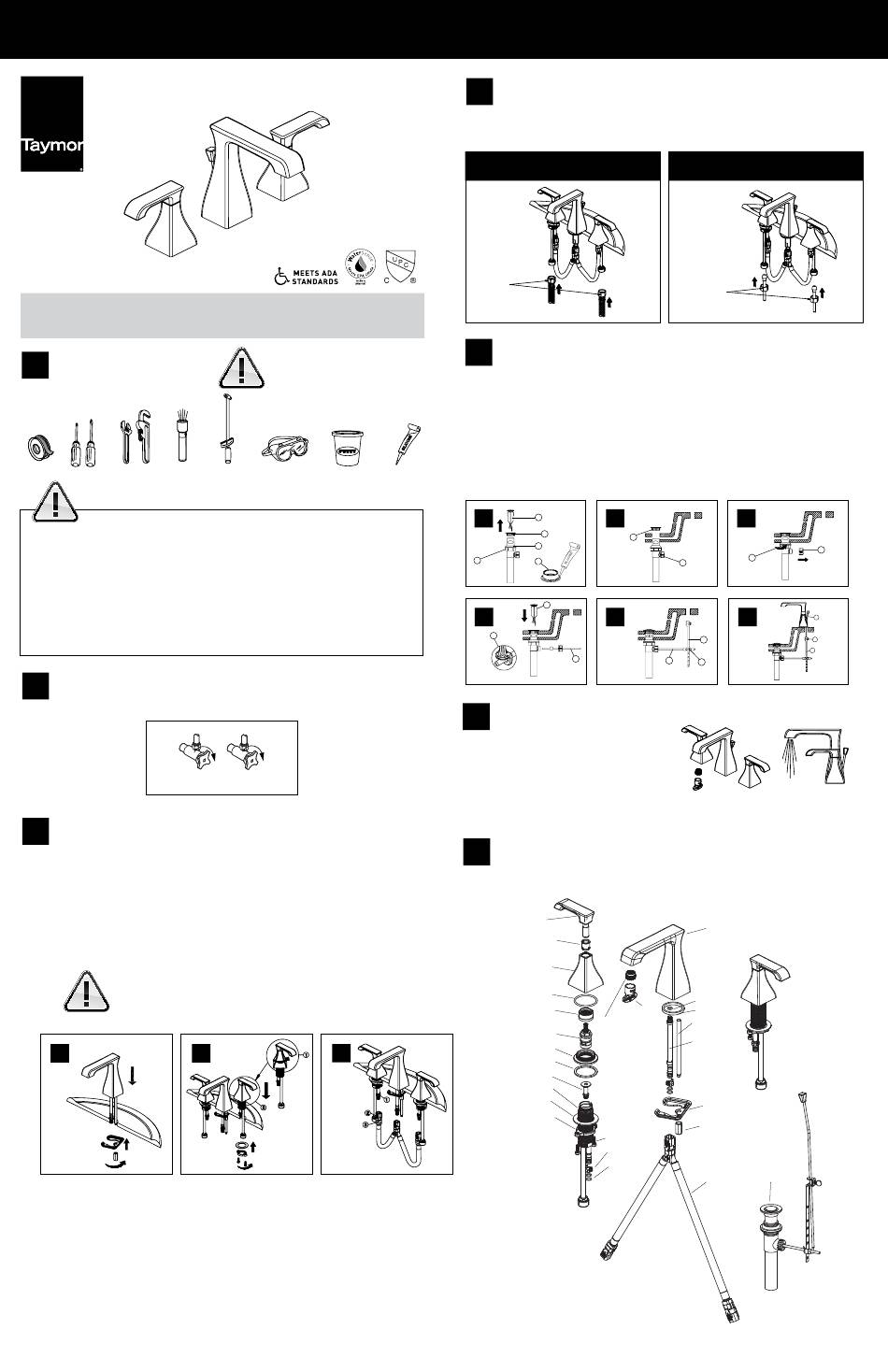

Taymor DIXON 06-4037P Installation Instructions

INSTALLATION INSTRUCTIONS
DIXON 06-4037P
TWO HANDLE LAVATORY FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
cUPC, ASME A112.18.1, NSF-61 AND LOW LEAD COMPLIANT
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY
ENGINEERED AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.
HAVE BASIC TOOLS READY
1
RECOMMENDED TOOLS:
Teflon tape Screwdrivers Adjustable and Flashlight
Pipe wrench
WARNING: READ ALL the instructions completely before beginning.
READ ALL warnings, care and maintenance information.
Taymor recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Use only a damp cloth to clean and shine, then dry with a soft cloth. Avoid abrasive cleansers, bleach
solvents, steel or bronze wool or other chemicals which may cause damage. A finish deterioration occurring
from use of paints, solvents, cleaners, or other chemicals is not a defect and therefore is not covered by the
warranty.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774 (EAST ) 1-800-387-7064 for additional assistance or service.
TURN OFF THE MAIN WATER SUPPLY
2
Locate water supply inlets and shut off water supply valves. These are usually found under
the sink.
TURN OFF
FAUCET INSTALLATION
3
A) Install spout on seat and through the center mounting hole of the sink or countertop. From
underneath the sink secure the spout with rubber washer, metal washer and nut.
B) Ensure the handle seats and the handles are aligned as in diagram (2) by turning the handle seat if
necessary (1), the open-close turn of the handle cannot exceed 90°. Slide hot and cold end valves
through sink mounting holes. Make sure the valve for "Hot" is placed on the left hand side and long
inlet tubes are installed away from spout. Note: Hot side end valve is labeled. Secure end valves
with washers and nuts. Hand tighten nuts onto shank. Lock nuts into position by tightening screws.
C) Align tabs (1) and (2) on quick connects (3). Push quick connect housing firmly upward and snap onto
receiving tube tab. Pull down moderately to ensure connection has been made. If it is necessary to
remove quick connect, squeeze tabs on hose between index finger and thumb, then pull down to
disconnect.
Don't use plumber's putty on cultured marble or other composite sinks.
Putty will discolour the sink.
A
Your installation may require new supply
lines. (Supply lines are not included.)
Safety goggles
Torque wrench Plumber's putty
TURN OFF
B C
1
2
3
ATTACH THE HOT AND COLD SUPPLY LINES
4
Apply teflon tape onto threaded ends of faucet inlets.
Connect water supply lines to faucet inlets. Hot water supply lines go into left inlet. Cold water supply
lines go into right inlet. (Supply lines are not included.)
FOR BRAIDED PLASTIC AND BRAIDED
STAINLESS STEEL SUPPLY TUBES
THESE SUPPLY
TUBES HAVE
INTEGRAL NUTS,
SO JUST SCREW
THE NUT ONTO
THE FAUCET
INLET.
TORQUE
22 – 30 FT/LBS.
INSTALLING POP-UP DRAIN
5
A) Remove pop-up plunger (A) and flange (B). Screw locknut (C) all the way down. Push
gasket (D) down. Apply silicone to underside of flange (B).
B) Insert body into sink (from underneath). Screw flange onto body. Pivot hole (E) must face
the back of the sink.
C) Tighten locknut (C) and gasket but do not overtighten. Remove pivot ball retaining nut (E).
D) Slide pivot rod (F) into the eye of the pop-up plunger (A). Hand tighten retaining nut.
E) Slide pivot rod (F) through hole in spring clip (G), then through lever strap (H) and back
through spring clip.
Silicone caulk
F) Insert lift rod (I) down through faucet body and then into lever strap (H). Tighten screw (J).
Connect assembly to drain.
A
C
D
A
FLUSHING & AERATOR CLEANING
6
Remove the aerator by turning it counterclockwise
with the plastic wrench provided.. Remove the
internal parts of the aerator by pushing them out
with your fingers. Remove any debris. Turn on hot
and cold water supplies. Turn faucet handles all the
way on and run water through the spout for about a
minute to remove debris. While water is running check all connections for leaks.
Reassemble the aerator and screw it back into the spout hand tight.
EXPLODED DIAGRAM FOR REFERENCE
7
MAINTENANCE Your new faucet is designed for years of trouble-free performance. Keep it
looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, steel
wool and harsh chemicals as these will dull the finish and void your warranty.
24 - HANDLE
23 - CLIP
22 - HANDLE SET
21 - O-RING
20 - BONNET
19 - CARTRIDGE
18 - FLANGE
17 - WASHER
16 - SEAT
15 - BODY
14 - WASHER
1
2
13 - NUT
CUSTOMER SERVICE WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
FOR 3/8" O.D. BALL-NOSE SUPPLY TUBES
IF THE SUPPLY
TUBE END HAS A
BULBOUS SHAPE,
USE THE SUPPLIED
COUPLING NUTS.
TORQUE
22 – 30 FT/LBS.
B
A
B
B
D
B
E
A
E
H
F
F
G
2 - O-RING
26 - WRENCH 3 - WASHER
25 - AERATOR 4 - TUBE
5 - BOLT
7 - NUT
12 - SCREW
11 - BLOCK
10 - O-RING
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
C
E
C
F
1
3
2
1 - SPOUT
6 - WASHER
9 - POP-UP
8 - HOSE
