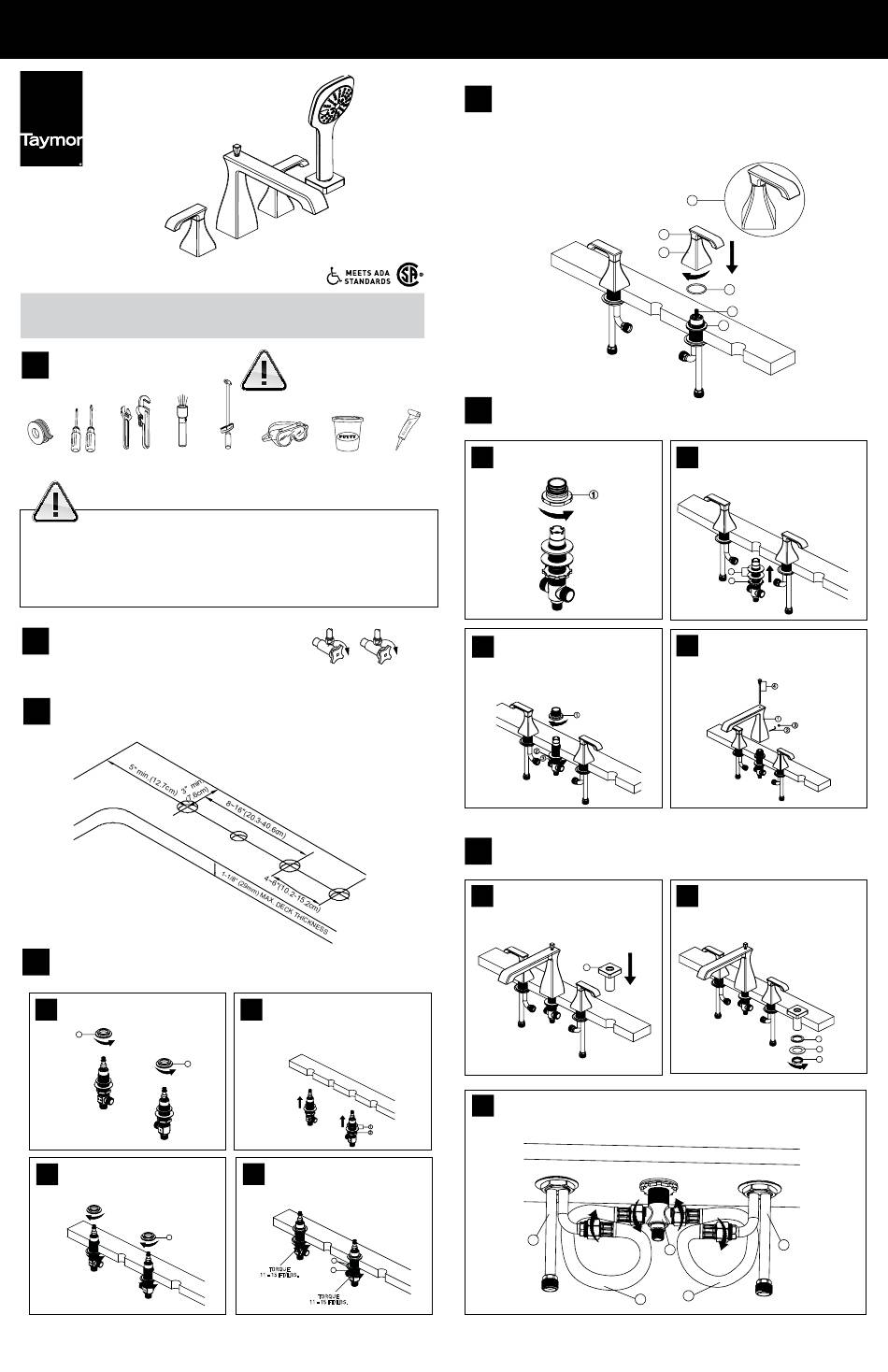

INSTALLATION INSTRUCTIONS
DIXON 06-4037HS
ROMAN TUB FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
ASME A112.18.1/CSA B125.1 and NSF-61
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY
ENGINEERED AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.
HAVE BASIC TOOLS READY
1
RECOMMENDED TOOLS:
Teflon tape Screwdrivers Adjustable
Flashlight
wrench and
pipe wrench
WARNING: READ ALL the instructions completely before beginning.
READ ALL warnings, care and maintenance information.
Taymor recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774 (EAST ) 1-800-387-7064 for additional assistance or service.
TURN OFF THE MAIN WATER SUPPLY
2
Locate water supply inlets and shut off water supply valves.
These are usually found near water meter.
DECK PREPARATION
3
Drill holes in FINISHED DECK per diagram.
NOTE: This kit is intended for installation up to 1-1/8" thick.
Ø1-3/8"
(35mm)
INSTALL THE VALVE SYSTEM
4
A
Remove flange (1) from housing assembly.
1
1
C
Place a flange (1) on each housing assembly.
Thread each flange down until it locks onto
housing assembly.
1
Your installation may require
new supply lines.
(Supply lines are not included.)
Torque wrench Safety goggles Plumber's putty
TURN OFF
TURN OFF
Ø1-1/8"
(29mm)
Ø1-3/8"
(35mm)
Ø1-3/8"
(35mm)
B
With the housing assembly marked "HOT" on
the left, adjust washers (1) and lock nut (2) to
the bottom of the housing assembly. Insert
the housing assembly through the mounting
holes from the underside of the deck/rim.
1
2
D
From underneath the deck secure housing
assembly with lock nut (3) and washers (2).
Wrench tighten locknut (3).
2
TORQUE 3
11 - 15 FT/LBS.
TORQUE
11 - 15 FT/LBS.
HANDLE INSTALLATION
5
Ensure the o-ring (1) is placed in the handle seat (2) before installing. Then place handle
assembly (3) onto the right (cold) valve stem (4). Then thread the handle seat (2) onto the
flange (5). Place the other handle assembly onto the left (hot) valve stem and install the
same way. After install handle assembly, if the handle seat is not aligned with handle in
a line as shown in the above diagram (6), rotate the handle seat back (the rotating
angle can not exceed 90° ) to make the handle seat align with handle in a line.
SPOUT INSTALLATION
6
A
Remove collar (1) from diverter body.
Silicone caulk
C From above, place collar (1) on diverter body.
Thread collar down until it locks onto diverter body
fully. From underneath the deck, secure diverter
body with locknut (3) and washers (2). Wrench
tighten locknut (3). NOTE: Suggest the torque on
locknut (3) is in the range of 11-15 ft/lbs.
2
3
HOSE GUIDE INSTALLATION
7
A
Insert hose guide (1) into deck hole.
C Connect the flexible water supply hose (1) to the bottom of valve bodies (2) as show. Align middle
body (3) in a position which will allow maximum clearance to connect hoses. Carefully bend the
hoses to fit available space. Carefully thread the hose couplings to the sides of the middle body (3).
NOTE: Suggest the connective torque between (1) and (2), (1) and (3) is in the range of 6-10 ft/lbs.
2
CUSTOMER SERVICE WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
6
3
2
1
4
5
B Adjust washers (1) and locknut (2) to the
bottom of diverter valve, insert the diverter
through the mounting hole from the
underside of the deck/rim.
1
1
2
D
Assemble and align spout (1) onto diverter
body and tighten set screw with allen wrench
(2). Place button (3). Thread lift rod (4) onto
diverter body through the spout (1) tightly.
1
B
From underneath deck, secure hose guide
with rubber washer (1), metal washer (2)
and locknut (3). Tighten locknut (3) securely
with wrench. NOTE: Suggest the torque on
locknut (3) is in the range of 11-15 ft/lbs.
1
3
1
1
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
