Delta VFD-VJ Series User Manual
  1. Manuals
  2. Brands
  3. Delta Manuals
  4. Servo Drives
  5. VFD-VJ Series
  6. User manual

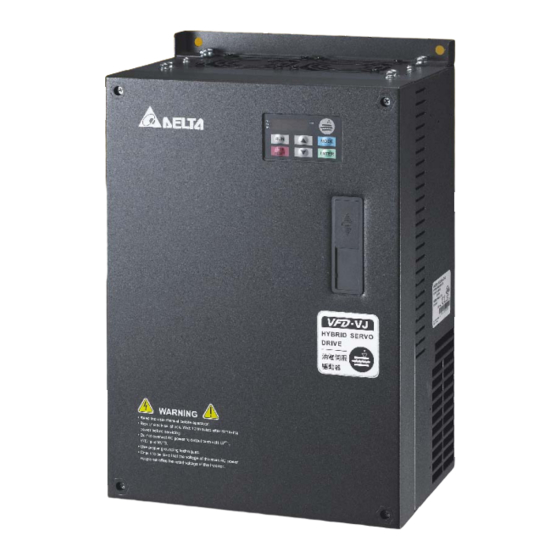

Delta VFD-VJ Series User Manual

Hybrid servo drive
Hide thumbs Also See for VFD-VJ Series:
Table of Contents
