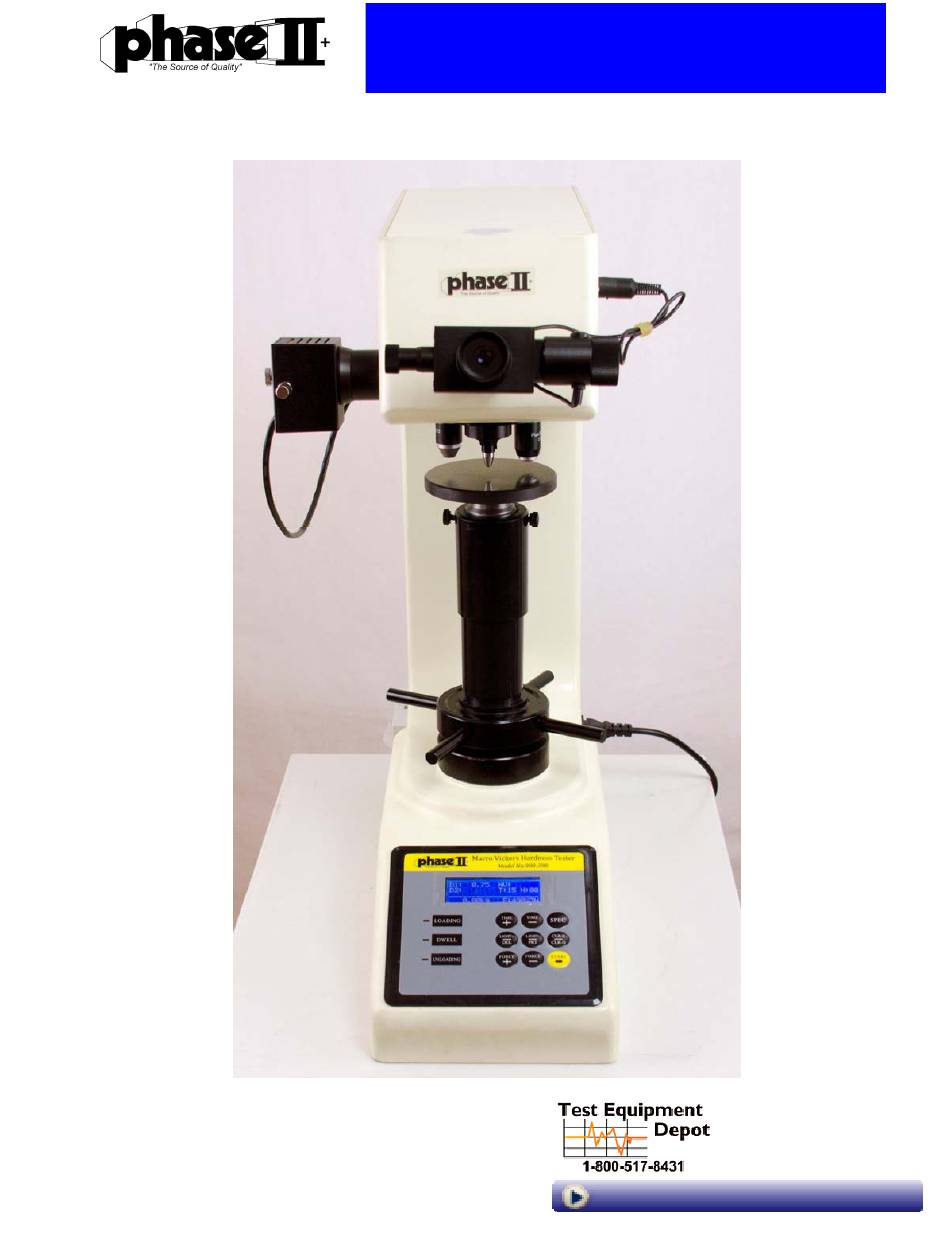

- Page 1 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
- Page 2 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester Contents 1. Introduction 2. Main Technical Specifications 3. Installation and Regulation of the Instrument Operational conditions Unpacking and installation Introduction to the operating board and its function keys 4. Usage of the Instrument 5. Precautions of the Instrument 6.

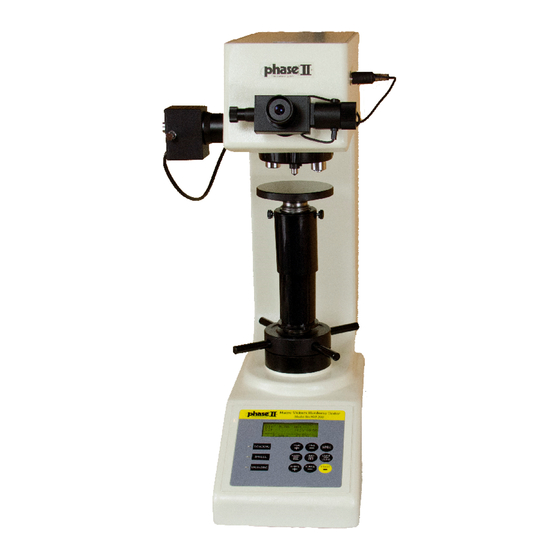

- Page 3 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 1 Introduction Our advanced Macro Vickers hardness tester 900‐398 is a state‐of‐the‐art, precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments. Designed for the accurate hardness testing of small precision parts, thin materials, case hardened layers and all sorts of steel components. The Phase II 900‐398 is our macro‐vickers hardness tester, covering the load range from 1kg to 50kg, with digital technology. Conforming to ASTM E‐384/92 vickers hardness testers standards, the 900‐398 digital vickers hardness tester will offer unmatched repeatability. A perfect rugged performer suited for any environment, the Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support. The 900‐398 Vickers Hardness Tester is engineered to produce a clear indentation and a more precise measurement. By means of a load cell, closed circuit system for control, the CPU controls testing force to load/dwell/unload, allowing for the highest degree of accuracy. The large LCD shows the measuring methods, the testing force, the indentation length, hardness value, the dwell time of the testing force as well as the number of the measurement on its screen. All information such as diagonal lines length of indentation, hardness values, data statistics and hardness conversions can be displayed on the LCD. The tester can be adapted with a ccd camera for operation and data control via pc. 2 Main Technical Specifications Test forces 9.807N(1 kg), 19.61N(2kg), 24.52N(2.5kg) 29.42N(3kg), 49.03N(5kg), 98.07N(10kg) 196.1N(20kg), 294.2N(30kg), 490.3N(50kg) Test Force Application Method:...
- Page 4 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 3 Unpacking, Operational Conditions and Installation Unpacking and Installation Cut the belt on packing crate; remove the anti‐shock cushion and remove the instrument and the accessories kit from the crate. Place the instrument on a solid working table. (for the dimensions of the working space, see Fig 1) (580mm) Fig 1 Do Not Discard Shipping Crate as This May be Needed for Future Transportation. General Safety Instructions 1. Never use clamps, straps, any other tooling or equipment to mount specimen to the tester anvil. 2.
- Page 5 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester...
- Page 6 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester Vickers Hardness Test The Vickers hardness test method consists of indenting the test material with a diamond indenter, in the form of a right pyramid with a square base and an angle of 136 degrees between opposite faces subjected to a load of 1 to 100 kgf.
- Page 7 Hardness Tester Operating Conditions: The 900-398 Macro Vickers Hardness Tester is a precise yet sensitive instrument that should be handled with care. Please be sure to mount on a sturdy bench in a clean temperature controlled room for best results. This instrument should be perfectly level before performing any tests.
- Page 8 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester KEYPAD FUNCTIONS: (Fig.5). TIME/+ Time adding key. 5 second interval/press Also used for date setting. TIME/‐ : Time reduction key. 5 second interval/press. Also used for date setting. SPEC: Multi function key. 1) Must press to use “lower shift keys” on keypad. 2) Press to obtain date and time FORCE/+: Increase Test Force FORCE/‐: Decrease Test Force LIGHT+/DEL: 1) Increase light source 2) Delete present result on display (must press SPEC key first to make DEL function) LIGHT‐/DPRT: 1) Decrease light source 2) Print Output key (must press SPEC key first to make PRT function) CLR‐F/CLR‐D: 1) CLR‐F is the Zero setting key for the test force value if displayed 2) CLR‐D is the Zero setting key for the graduated lines in the eyepiece. (Set zero to D1 and D2) (must press SPEC key first to make CLR‐D function) START: 1) Test force application key, automatic loading, dwell, unloading. 2) Emergency Stop key. Press this key to immediately stop test and reverse itself back to the original start position.
- Page 9 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 3.1 Usage of the Instrument 3.1.1 Switch the power source on. The light source and the LCD screen are both lit up at the same time. At this point, the LCD screen displays as follows: After 5 seconds, the screen display WELCOME USE...
- Page 10 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester ╳ ╳ NOTE: 1. When toggling between the objectives 10 and 20 , there might be a slight change in the vision field. Just adjust slightly the up-and-down lead-screw until the focusing plane is clear. 2.
- Page 11 Model No. 900‐398 Tech Support Hardness Tester NOTE: The 900-398 has memory for setting the zero. The only time you need to reset the zero is when the instrument is restarted. Measurement of Diagonal length of indentation: 3.4.12 Observe the indentation in the eyepiece; rotate the handwheel to focus until the image quality becomes clear.
- Page 12 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester The regulation of the hardness tester and the precautions for the operation. 3.5.1 The square pyramidal diamond indenter a.) The diamond indenter and the indenter shaft are important parts of the instrument, and hence it is necessary to take care not to touch the indenter during the operation. b.) In order to assure the precision of the measurement, it is important to keep the indenter clean.
- Page 13 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 3.5.3 The light source of the micro eyepiece a.) The instrument adopts the cold light source for the lighting. The centrality of the center position of the light source would exert a direct influence on the quality of the image of the indentation. During assemblage of the instrument, the position of the center of the light source is already adjusted, and hence the client does not need to adjust it.
- Page 14 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 7. ACCESSORIES: Packing List: The main instrument (including a macro Vickers Indenter, a 20 Objective and a 10 Objective) Item Descriptions Quantity Large Round Anvil 1PC Small V‐Anvil 1 PC 10x Digital Micro Eyepiece 1 PC Thin Specimen Testing Table 1 PC Screw Drivers 2 PCS Leveling Feet 4 PCS Bullseye Level 1 PC Power Cord 1 PC...
- Page 15 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester ASTM Hardness Conversion Chart Rockwell C Hardness Range Approximate Hardness Conversion Numbers for Non-Austenitic Steels, According to ASTM E-140 The Conversion Values contained herein should be considered approximate only and may be inaccurate for specific applications Vickers Knoop...
- Page 16 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 68.4 52.3 78.3 55.9 38.4 67.9 51.5 77.7 55.0 37.2 67.4 50.8 77.2 54.2 36.1 66.8 50.0 76.6 53.3 34.9 66.3 49.2 76.1 52.1 33.7 65.8 48.4 75.6 51.3 32.5 65.3 47.7 75.0 50.4 31.3 64.8 47.0 74.5...
- Page 17 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester ASTM Hardness Conversion Chart Rockwell B Hardness Range Approximate Hardness Conversion Numbers for Non-Austenitic Steels, according to ASTM E-140.The conversion values contained herein should be considered approximate only and may be inaccurate for specific applications. Rockwell Superficial Rockwell Vickers...
- Page 18 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 42.8 97.5 82.4 39.8 42.3 97.0 82.1 60.4 38.7 41.8 96.0 81.8 59.7 37.7 41.4 95.5 81.4 36.7 40.9 95.0 81.1 58.4 35.7 40.4 94.5 80.8 57.7 34.7 40.0 93.5 80.5 57.0 33.7 39.5 93.0 80.1 56.4 32.7...
- Page 19 Macro Vickers Model No. 900‐398 Tech Support Hardness Tester 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
- Page 20 Any attempts to “open, modify, or tamper with” this device by anyone other than Phase II will result in a voided warranty. Return Policy: All Phase II products must have authorization prior to return. If product is not acceptable for any reason including application issues and demonstrations, authorization for return must be obtained within 5 days of receipt of product.
