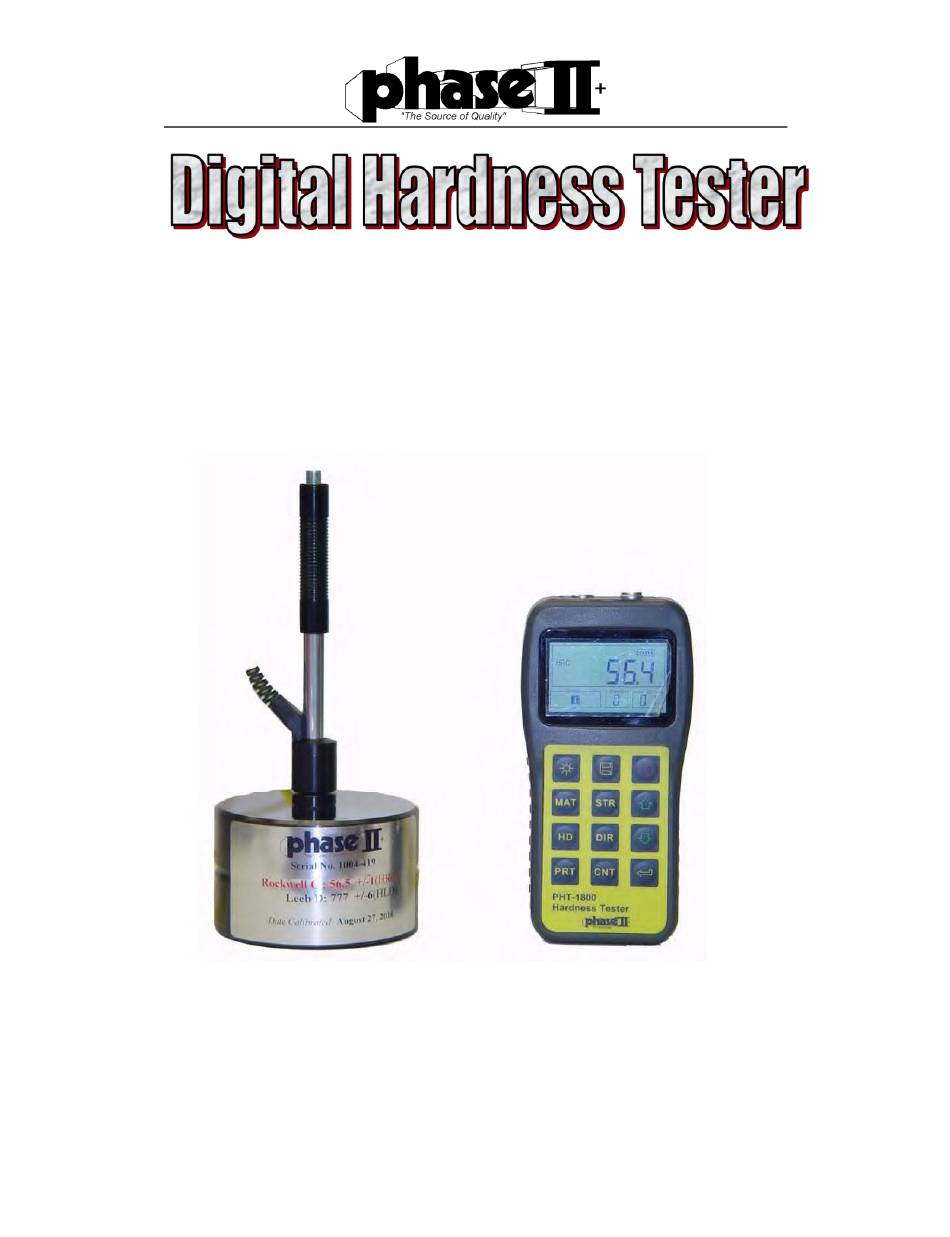

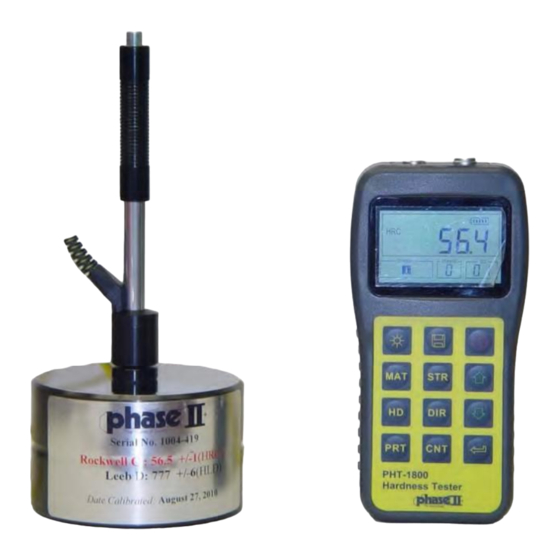

- Page 1 Model No. PHT‐1800 Operation Manual ShopToolUsa Find Quality Products Online at: www. .com sales@shoptoolusa.com...
- Page 2 1 Overview........................1.1 Advantages ........................1.2 Main Application &Testing Range ................... 1.2.1 Main Application ......................1.2.2 Testing Range......................... 1.3 Technical Specifications ....................1.4 Configuration ........................1.5 Working Conditions ......................2 Structure Feature &Testing Principle ..............2.1 Structure Feature ....................... 2.1.1 D Type Impact Device ....................2.1.2 Different Types of Impact Device ..................
- Page 3 4.3 Localization ........................4.4 Testing ..........................4.5 Read Measured Value ..................... 4.6 Notification ........................5 Operation Detail ..................... 5.1 Power On/Off ........................5.2 Material Setting ......................Hardness/Strength testing ....................14 5.4 Impact Direction Setting ....................14 5.5 Average Times Setting ....................5.6 Data logging ........................
- Page 4 Table 2 ..........................Table 3 ..........................ShopToolUsa Find Quality Products Online at: www. .com sales@shoptoolusa.com...
- Page 5 Table 4 .................. Error! Bookmark not defined. ShopToolUsa Find Quality Products Online at: www. .com sales@shoptoolusa.com...
- Page 6 Overview Advantages ⚫ Wide measuring range. Based on principle Leeb hardness testing theory. Capable of measuring Leeb hardness metallic materials. ⚫ Large screen LCD, showing functions parameters. With background light. ⚫ Seven impact devices available special application. Automatic identification of impact device upon plug ⚫...
- Page 7 Technical Specifications ⚫ Error repeatability of displayed value see Table1‐ 1 below. Table 1‐1 Type of Hardness value of Error of impac Leeb standard displayed hardness value Repeatability devic block 760±30HLD ±6 530±40HLD ±10 760±30HLDC ±6 HLDC 530±40HLDC ±10 HLDC 878±30HLDL 736±40HLDL ±12...
-
Page 8: Working Conditions
1.4 Configuration Table 1-2 Item Quantity Remarks Standard Main unit Configuration D type impact device With cable Standard test block Cleaning brush (I) Small support ring Alkaline battery AA size Manual Instrument package case Optional Cleaning brush (II) For use with G type impact Configuration device... - Page 9 1. Main unit 2.Keypad 3. LCD display 4 Socket of USB 5. Socket of impact device 6. Impact device 7 Label 8. Battery cover 2.1.1 D Type Impact Device 1 Release button 2 Loading tube 3 Guide tube 4 Coil unit 5 Connection cable 6 Impact body 7 Support ring ShopToolUsa...
- Page 10 2.1.2 Different Types of Impact Device D+15 2.2 Main Screen Below is the main display screen： Instruction of the Main Display Screen: Material ： The present presetting material. Impact direction ： The present impact direction. Hardness scale ： Hardness scale of the present measured value. Battery information ：...
-
Page 11: Leeb Hardness Testing Principle
Turn on/off the Data Save or Data Turn Delete instrument backlight on/off Material Hardness/Strength Plus or Up Selection switch Hardness Direction change Minus or Down Scale Selection Print data Impact Times set Data logging or Enter ⚫ Press key to store present group of measured value into memory. This operation is only valid after displaying the mean value. - Page 12 D, DC or D+15, the test surface should be polished until its roughness Ra is no more than 2 m. PHASE II SRG-2000 handheld surface roughness tester or any other suitable instrument may be used to measure the surface roughness of the sample material.
-
Page 13: Testing Program
mass metal object. The sample must be completely stationary and without any gaps between the two parts. ⚫ Curved surface: The best testing surface of sample is flat. When the curvature radius R of the surface to be tested is smaller than 30mm (D, DC, D+15,C, E and DL type of impact device) and smaller than 50mm (G type of impact device), the small support ring or the shaped support rings should be chosen. - Page 14 4.3 Placement Press the impact device supporting ring firmly on the surface of the sample, the impact direction should be vertical to the testing surface. 4.4 Testing ⚫ Press the release button on the upside of the impact device to test. The sample, the impact device as well as the operator are all required to be stable.
-
Page 15: Read Measured Value
4.5 Read Measured Value After each impact operation, the LCD will display the current measured value, impact times plus one, a beep will alert you if the measured value is not within the valid range. When reaching the presetting impact times, the beep will alsonotify you. -
Page 16: Material Setting
The instrument can be turned off by pressing the key while it is working. The tool has a special memory that retains all of its settings even when the power is off. 5.2 Material Setting Press key to change the material to the one you want to preset. Hardness scale defaults to HL automatically after material presetting changed. -
Page 17: Impact Direction Setting
Note ： ⚫ This displays the valid hardness scale for the present selected impact device and material. It would not display the hardness scale which is not valid. ⚫ Please select material first, then select hardness scale. ⚫ Presetting hardness scale recovers to HL automatically after presetting material is changed. -
Page 18: Print Report
1) Press the key to activate the data logging function. The memory icon will appear. It will display the current file name, the test parameter of the group data and the mean value of the group. If there is no data in the memory, it will display: <E04>, which means no memory data, and then return back. -
Page 19: Auto Power Off
When the voltage of the battery gets too low, the display will show <E00>, then power off automatically. 5.11 Battery Replacement The PHT-1800 uses standard AA batteries. After several hours of usage, battery symbol on the screen will begin to show less dark tabs which is shown as . -
Page 20: Instrument Maintenance Program
6.2 Instrument Maintenance Program ⚫ When testing in the Rockwell C hardness scale your error amount should not exceed 2 Rockwell C points. Changing the spherical test tip or impact body should be considered. ⚫ Warranty will be VOID if unit has been dismantled by someone other than an authorized repair person 6.3 Fault Analysis &... - Page 21 131～ 127～ 19～164 23～210 32～168 Cast aluminum 23.8～ 22.7～ 23.8～ alloys 84.6 85.0 85.5 BRASS(copperzinc 40～173 alloys) 13.5～ 95.3 BRONZE(copp er-aluminum/tin 60～290 alloys) Wrought copper 45～315 alloys Table 2: Leeb to Tensile Strength Conversion Chart: This is an Approximation only! Strength σ...
- Page 22 Test tip hardness: 1600HV 1600HV 1600HV 1600HV 5000HV Dia. Test tip: Material of test tip: Tungsten Tungsten Tungsten Tungsten synthetic carbide carbide carbide carbide diamond Impact device diameter: 20mm 20mm 20mm 30mm 20mm Impact device length: 86(147)/ 162mm 141mm 254mm 155mm Impact device weight: 75mm...
- Page 23 Type Remarks Sketch of non- conventional Supporting ring For testing cylindrical outside Z10-15 surface R10～R15 For testing cylindrical outside Z14.5-30 surface R14.5～R30 For testing cylindrical outside Z25-50 surface R25～R50 For testing cylindrical inside HZ11-13 surface R11～R13 For testing cylindrical inside HZ12.5-17 surface R12.5～R17 For testing cylindrical inside...
