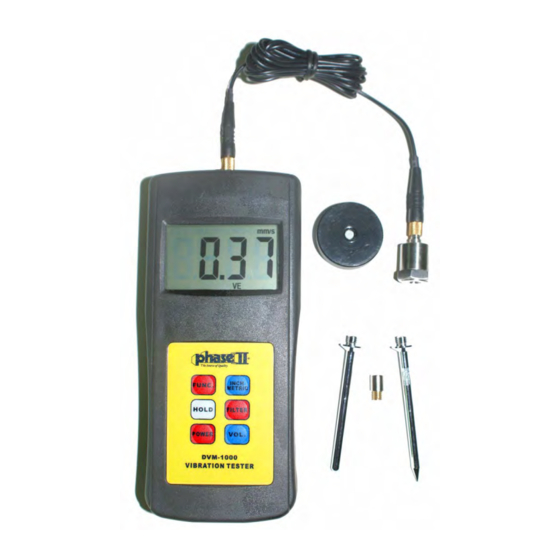

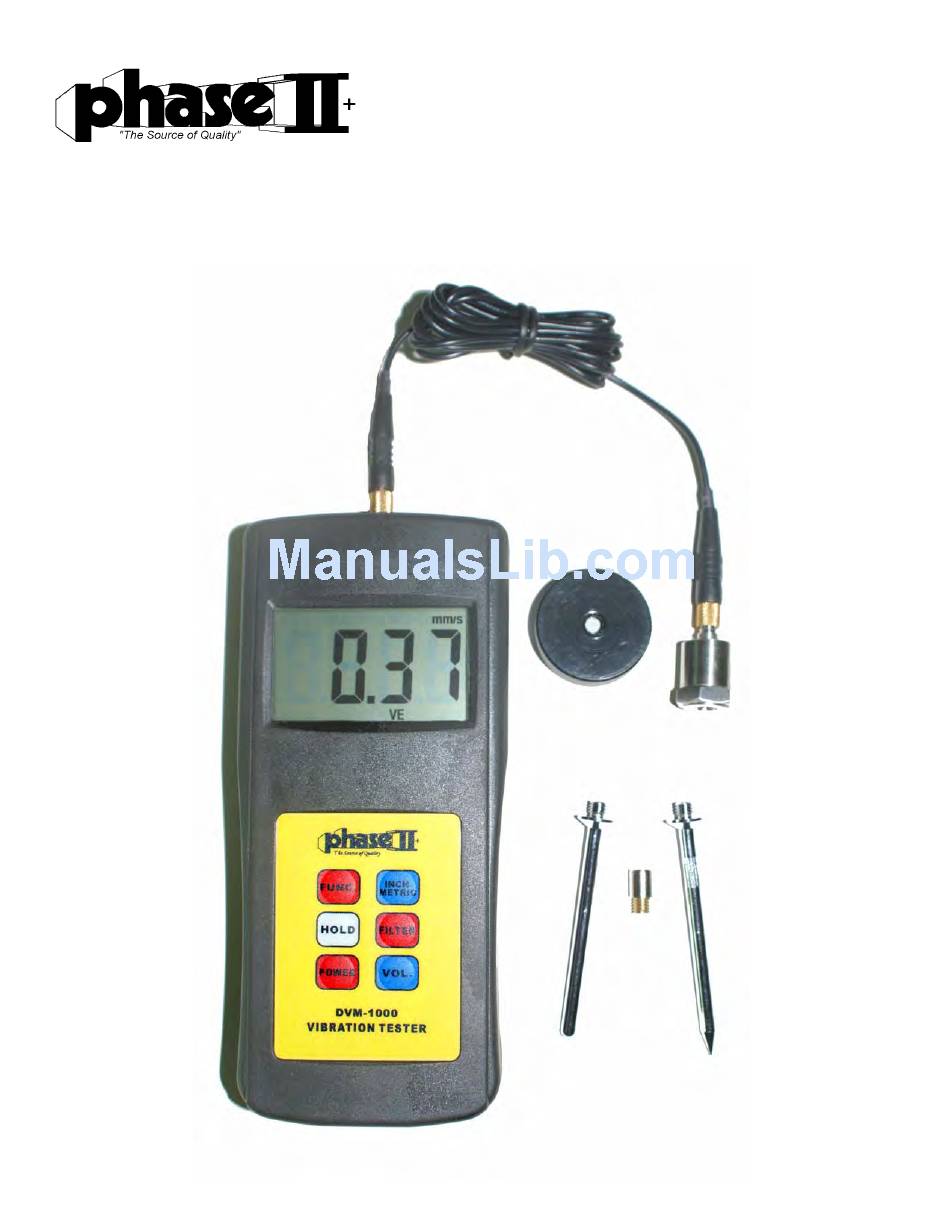

- Page 1 Digital Vibration Tester Model No. DVM-1000 Operation Manual Phase II Machine & Tool, Inc. 283 Veterans Blvd Carlstadt, NJ. 07072 (201) 933-6300 www.phase2plus.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Specifications
It also is equipped with AC output socket for easy headphone hook up. The DVM-1000 has a large 18mm LCD that will display the data in four (4) measurement modes; Acceleration, Velocity(RMS), Displacement and RPM. Auto shut-off will conserve batteries and will still save all previous stored data. - Page 3 3-10 3-12 3-11 Front Panel Descriptions: 3.1 Accelerometer (Probe) 3.2 LCD 3.3 Probe Connector 3.4 Hold Key 3.5 Power Key 3.6 Inch/Metric Conversion 3.7 Function Key 3.8 Filter Key 3.9 Volume Key 3.11 Stinger Probes 3.12 Magnetic adapter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 4 Set Up Procedure: 1. Connect the accelerometer to the input connector on the right side of the unit by threading the socket gently until it locks in place. 2. Press the Power Button to turn unit on. 3. Place the accelerometer, with the magnetic base firmly attached to the machine. You should allow a few seconds for the readings to stabilize before taking a reading.
-
Page 5: Battery Replacement
Calibration: The DVM does not need a scheduled (daily, weekly, monthly) calibration performed however, the calibration should be verified yearly by Phase II or a qualified calibration facility. Battery Replacement: When the battery symbol appears on the display, its time to replace the batteries. - Page 6 Vibration Charts: ISO 10816 This recommendation, release in August 2000, establishes the general conditions and procedures for the measurement and evaluation of vibrations using measurements made on the non-rotating parts of a machine. It also provides general evaluation criteria related to both operational monitoring and acceptance testing established primarily with regard to securing reliable long term operation of the machine.
- Page 7 Ranking: A=Vibration values from machines just put into operation B= Continuous operation without any restrictions C = Condition is acceptable only for a limited period of time D = Dangerous vibration values-Damage could occur at any time GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 8 NEMA MG1-12.05 (Maximum vibration of motor that generates more than 1 horsepower) RPM (Rev) Displacement (p-p) (µm) 3000-4000 25.4 1500-2999 38.1 1000-1499 50.8 <999 63.6 NEMA MG1-20.52 (Maximum vibration of high power induction motor) RPM (Rev) Displacement (p-p) (µm) >3000 25.4 1500-2999 50.8...
