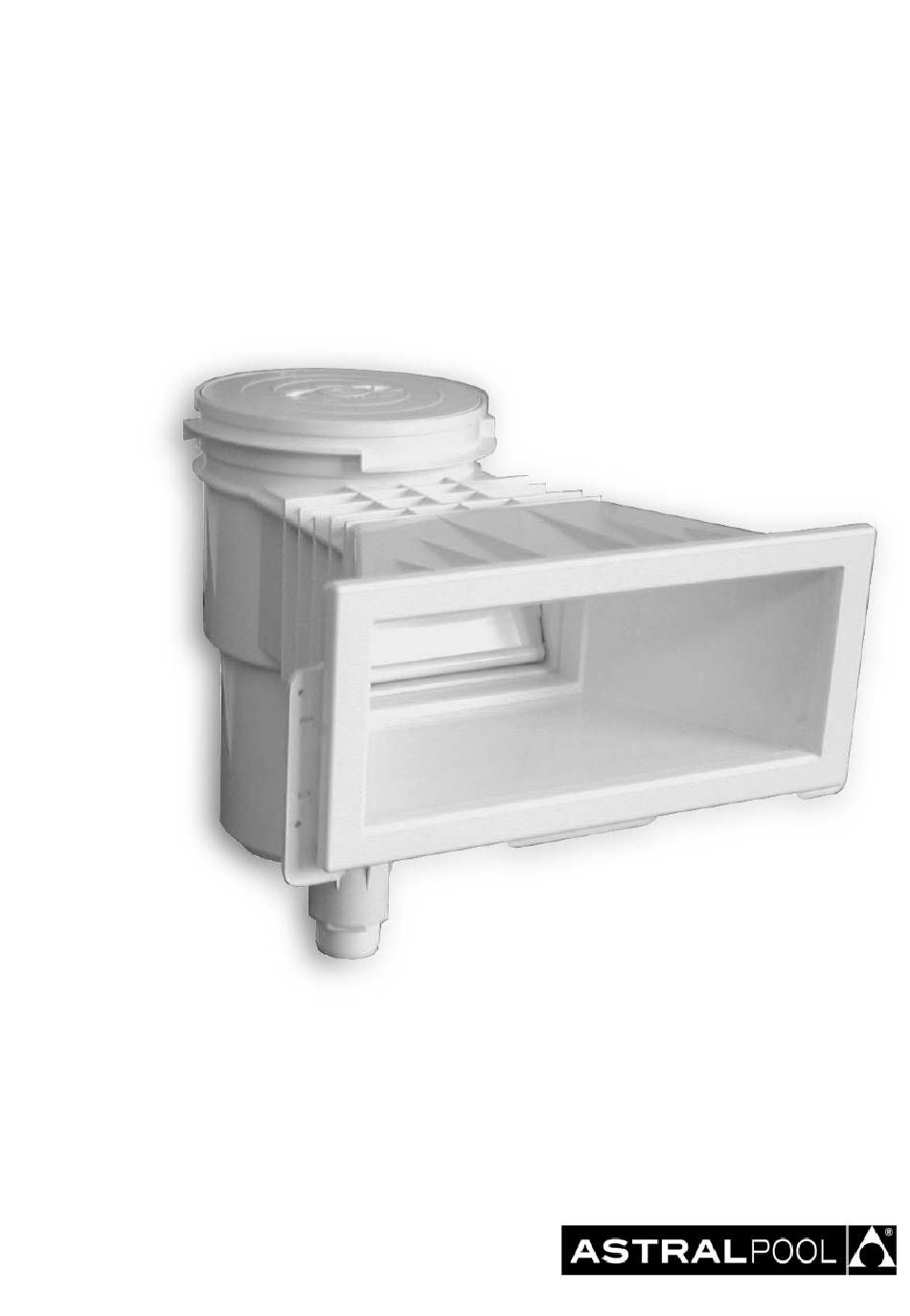

- Page 1 SKIMMER FOR PANELLED POOLS INSTALLATION AND MAINTENANCE MANUAL...
- Page 2 ADJUSTMENT OF THE COVER IN THE 17,5 LITER SKIMMER One of the new additions to this skimmer is the possibility to adjust the height of the lid and to tighten it when necessary so that it lies flush with the floor (Fig. 7).
- Page 3 1. Drill a hole in the panel as indicated in Fig. 2. Also drill ∅ 15/64” holes at the heights indicated on the same figure. 2. Place the skimmer through the outer part of the plate panel of the pool. Place the 3 distance spacers as indicated in Fig. 5.
- Page 4 Skimmers and the sumps may cause the floor cleaner to stick to the liner. DRAINING EXCESS WATER If there is excess water in the pool, the Skimmer is provided with a hole (pre-punched) on the upper part to prevent water from overflowing from the pool (Fig. 7). LOW WATER LEVEL When the water level of the pool is low, the Skimmer will prevent air from suctioning to the filtering system by suctioning to the connection at the bottom of the pool (Fig.
- Page 5 Holes to make in the panels with Skimmers with Square Mouth Fig. 1 " PLATE POOL PANEL " Holes to make in the panels with Skimmers with Rectangular Mouth " " " Fig. 2 Pool panel Liner Skimmer Clamp Ornamental lid Joint Screw Fig. 3...
- Page 6 " " Holes to make in the panels with Skimmers with Rectangular Mouth " " " Fig. 4 PLATE POOL PANEL POLYMER POOL PANEL Plate paneled pools Polymer paneled pools 5,5x32 screw 5,5x16 screw Distance spacer Skimmer Skimmer Fig. 5...
- Page 7 Screw Clamp Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10...
- Page 8 Made in EC Sacopa, S.A.U. Pol. Ind. Poliger Sud – Sector I, s/n 17854 Sant Jaume de Llierca (Spain) ASTRALPOOL Avda. Francesc Macià, 38, planta 16 08208 Sabadell (Barcelona) Spain 28883E201-02 info@astralpool.com We reserve to change all or part of the articles or contents of this document, without prior notice.
