ENGLISH
SOMMAIRE - CONTENTS - SUMARIO - SOMMARIO
SUMARIO - INHALTSVERZEICHNIS
TECHNICAL SPECIFICATIONS AND GENERAL INFORMATION .................................................................. 2
INSTALLATION IN THE TECHNICAL AREA ................................................................................................. 3
INSTALLATION OF THE CHAMBER: .......................................................................................................... 4
PROBE: ..................................................................................................................................................... 5
FLOW SWITCH: ........................................................................................................................................ 5
INSTALLATION OF THE EARTH ELECTRODE: ............................................................................................ 6
ELECTRICAL CONNECTIONS: .................................................................................................................... 7
SERVO-CONTROLLED BY THE COVER ....................................................................................................... 8
OPERATING THE ELECTROLYSER .............................................................................................................. 9
RECOMMENDATIONS ............................................................................................................................ 10
SWITCHING ON THE ELECTROLYSER ...................................................................................................... 10
ADJUSTING CHLORINE PRODUCTION .................................................................................................... 11
CHLORINE ANALYSIS METHOD .............................................................................................................. 11
INDOOR POOL OR POOLS WITH COVERS .............................................................................................. 11
ADJUSTING THE DURATION OF THE POLARITY INVERSION .................................................................. 12
CHECKS AND MAINTENANCE ................................................................................................................ 12
NON-MODIFIABLE PARAMETERS: ......................................................................................................... 13
INDICATORS ........................................................................................................................................... 15
pH REGULATION .................................................................................................................................... 16
SWITCHING ON FOR THE FIRST TIME .................................................................................................... 17
TIPS FOR THE CORRECT USE OF THE pH REGULATOR ........................................................................... 18
TAYLOR SCALE ....................................................................................................................................... 19
WARRANTY ............................................................................................................................................ 19
1
Número de revisión
Rev 001-2013-08-06
Advertisement
Table of Contents

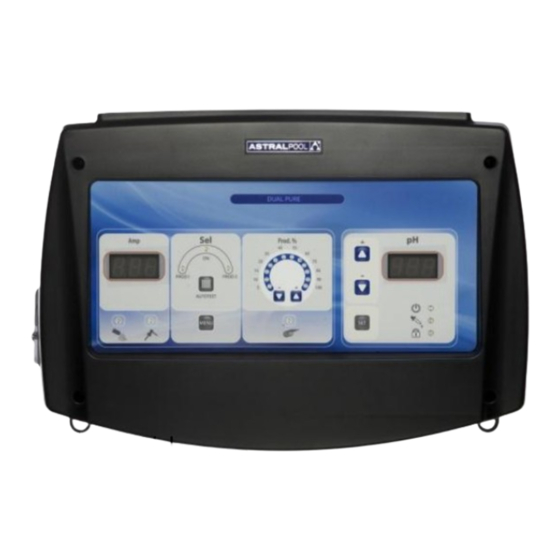

Related Manuals for Astralpool Dual Pure 40
Summary of Contents for Astralpool Dual Pure 40
-
Page 1: Table Of Contents
ENGLISH SOMMAIRE – CONTENTS – SUMARIO – SOMMARIO SUMARIO – INHALTSVERZEICHNIS TECHNICAL SPECIFICATIONS AND GENERAL INFORMATION ..............2 INSTALLATION IN THE TECHNICAL AREA ....................3 INSTALLATION OF THE CHAMBER: ......................4 PROBE: ..............................5 FLOW SWITCH: ............................5 INSTALLATION OF THE EARTH ELECTRODE: .................... 6 ELECTRICAL CONNECTIONS: ........................ -
Page 2: Technical Specifications And General Information
ENGLISH TECHNICAL SPECIFICATIONS AND GENERAL INFORMATION Unit: Power supply (servo-controlled by the filtration pump) 220 Volts 50/60 Hz Weight 3050 g. Dimensions 38 x 27.5x 16 CE Marking Degree of protection IP X5 Electrolyser Use: Recommended salt level 4g/l Minimum salt level 3.2g/l Recommended pH Recommended stabiliser... -
Page 3: Installation In The Technical Area
ENGLISH INSTALLATION IN THE TECHNICAL AREA Electronic unit: Fix the support for the unit onto a wall using the provided screws and fasteners. If possible, this should be close to the filtration unit to facilitate electrical connection and be protected from water spray and condensation. -
Page 4: Installation Of The Chamber
ENGLISH INSTALLATION OF THE CHAMBER: Attach the chamber to the return pipe that runs towards the swimming pool, after the filter and after the heater or the beginning of the compressor. The water must circulate from the T-pipe towards the part where the pipe narrows (follow the direction of the arrow on the chamber);... -
Page 5: Probe
ENGLISH PROBE: Place the pH probe on the salt chlorinator chamber in the space provided. Important: ensure that the probe is placed so that the two protective edges of the glass ball are perpendicular to the flow. FLOW FLOW Earth pH PROBE Flow switch pH Injection... -
Page 6: Installation Of The Earth Electrode
ENGLISH INSTALLATION OF THE EARTH ELECTRODE: We recommend the installation of this electrode in order to measure the residual currents present in the water. Mounting the earth electrode: Mount the earth electrode in the place on the chamber designed for this purpose. ... -
Page 7: Electrical Connections
ENGLISH ELECTRICAL CONNECTIONS: The powder supply to the unit: The system works in parallel with the filtration pump. It is imperative that it functions at the same time as the filtration. The connection is made via the contactors on the filtration pump in the filtration unit. A unit that is permanently connected will lose its warranty. -
Page 8: Servo-Controlled By The Cover
ENGLISH SERVO-CONTROLLED BY THE COVER Cover panel View of the interior of the device. To the cover panel connection Closed cover = Closed connection Servo-controlled connection to the cover Número de revisión Rev 001-2013-08-06... -
Page 9: Operating The Electrolyser
ENGLISH OPERATING THE ELECTROLYSER Número de revisión Rev 001-2013-08-06... -
Page 10: Recommendations
ENGLISH RECOMMENDATIONS Please respect the following values in the order to ensure the proper operation of this electrolyser: Salt rate: Recommended: 4 g/l Minimum: 3.2g/l Recommended : less than 7.8 Stabilizer: Recommended: 10 à 15 g/m3 Maximum: 40g/m3 Minimum daily operating time: respect the recommendations of the manufacturer of your filtration system. -
Page 11: Adjusting Chlorine Production
ENGLISH ADJUSTING CHLORINE PRODUCTION Starting-up for the first time: a) Put filtration in manual mode (24h filtration) then press the key up to 100%, the time necessary to obtain the desired level of chlorine (for a private swimming pool, chlorine-free is between 0.5 and 2ppm). -
Page 12: Adjusting The Duration Of The Polarity Inversion
ENGLISH ADJUSTING THE DURATION OF THE POLARITY INVERSION Your salt chlorinator was programmed in the factory for a polarity change every 4 hours. According to the hardness of the water (TH for degree of Total Hardness), it is possible to change this cycle from 1 to 99 hours. -
Page 13: Non-Modifiable Parameters
ENGLISH DEF: settings, that is : DUR: PROD: TPS: accumulated production time TEN: electrode operating voltage NON-MODIFIABLE PARAMETERS: Device switched on: Press Menu once and DUR appears (DUR = Duration of polarity inversion) Press Menu: the screen displays 4 heures (factory setting) Press Menuto exit: the setting amperage appears Press Menu: DUR appears Press... - Page 14 ENGLISH To find a specific program: Use the drop-down Menu: Press Menu: DUR appears Press until the desired program is displayed. Add salt: Check the salt content. If the concentration is less than 4 g/l, add salt according to the following formula: Q = (4-T) x V Q = quantity of salt to be added in Kg...
-
Page 15: Indicators
ENGLISH Checking the state of the electrode: The voltage can be measured at both terminals of the electrode; it must be approximately 9 volts. Measure it in the DC position, with a salt content of 4g/litre, a water temperature of more than 15°C and an electrode without calcareous encrustation. -
Page 16: Ph Regulation
ENGLISH Cover : The indicator lights up when the cover is detected as closed. For it to be possible to detect this, please connect the dry connection on the card to the connector provided for this purpose when installing a cover. (See page 8/19 Servo-controlled Cover) pH REGULATION The pH (Potential Hydrogen) value indicates acidity or alkalinity of water. -
Page 17: Switching On For The First Time
ENGLISH SWITCHING ON FOR THE FIRST TIME Calibration: Switch on the device, wait until the reading stabilises and indicates the pH value of the water. Measure the pH of the swimming pool water, read the pH on the device and adjust it, pressing , to the precise value measured. -
Page 18: Tips For The Correct Use Of The Ph Regulator
ENGLISH TIPS FOR THE CORRECT USE OF THE pH REGULATOR Washing the filter - Adding product: It is important to turn the device off when handling the filter (draining, washing, rinsing), and when adding products manually (CAT, pH -, pH+, stabiliser, etc.) CAT –... -
Page 19: Taylor Scale
ENGLISH Calibration of the pH probe can be conducted with a pH value between 6.2 and 8.6. If the value of the pH measured by the probe is lower than 6.2 or higher than 8.6, the alarm lights up product injection ceases. Solutions: e) To bring the pH back to the correct value, check the product concentration in the container. - Page 20 ENGLISH pH probe pH probe life depends on : Whether the pool has been properly protected over the winter months: the probe must never be left exposed to the air. Whether the probe has been properly stored over the winter months: replace cap over it with KCL at constant temperature or with water from the pool in a frost-free area.
