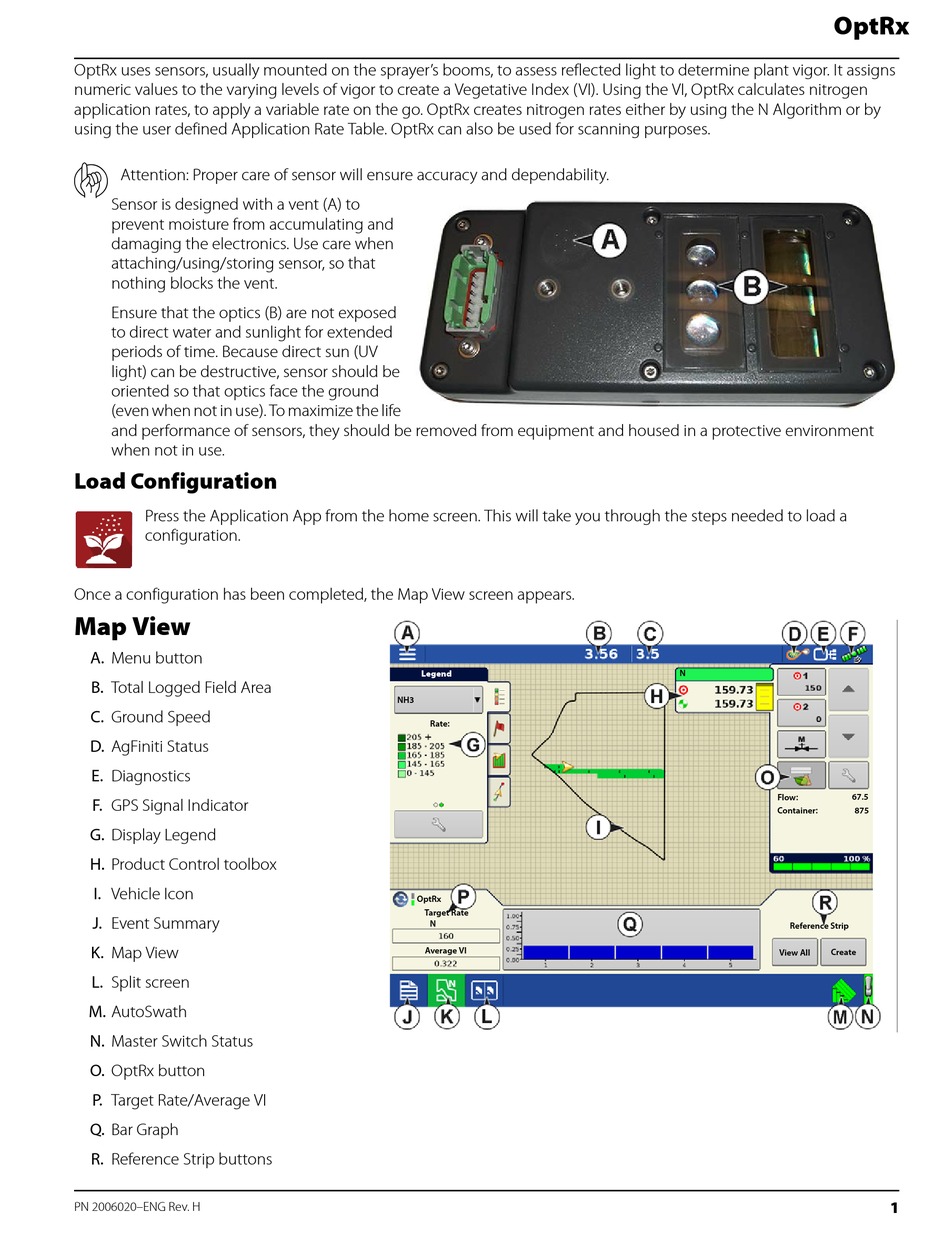

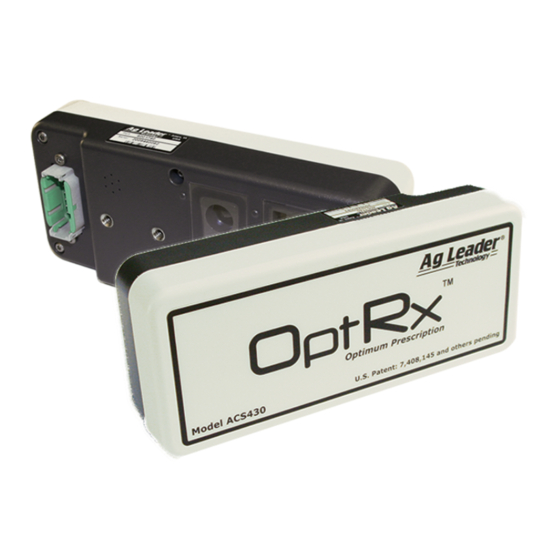

OptRx uses sensors, usually mounted on the sprayer's booms, to assess reflected light to determine plant vigor. It assigns
numeric values to the varying levels of vigor to create a Vegetative Index (VI). Using the VI, OptRx calculates nitrogen
application rates, to apply a variable rate on the go. OptRx creates nitrogen rates either by using the N Algorithm or by
using the user defined Application Rate Table. OptRx can also be used for scanning purposes.
μ
Attention: Proper care of sensor will ensure accuracy and dependability.
Sensor is designed with a vent (A) to
prevent moisture from accumulating and
damaging the electronics. Use care when
attaching/using/storing sensor, so that
nothing blocks the vent.
Ensure that the optics (B) are not exposed
to direct water and sunlight for extended
periods of time. Because direct sun (UV
light) can be destructive, sensor should be
oriented so that optics face the ground
(even when not in use). To maximize the life
and performance of sensors, they should be removed from equipment and housed in a protective environment
when not in use.
Load Configuration
Press the Application App from the home screen. This will take you through the steps needed to load a
configuration.
Once a configuration has been completed, the Map View screen appears.
Map View
A. Menu button
B. Total Logged Field Area
C. Ground Speed
D. AgFiniti Status
E. Diagnostics
F. GPS Signal Indicator
G. Display Legend
H. Product Control toolbox
I. Vehicle Icon
J. Event Summary
K. Map View
L. Split screen
M. AutoSwath
N. Master Switch Status
O. OptRx button
P. Target Rate/Average VI
Q. Bar Graph
R. Reference Strip buttons
PN 2006020–ENG Rev. H
Legend
NH3
Rate:
OptRx
Target Rate
N
Average VI
OptRx
N
Flow:
67.5
Container:
875
Reference Strip
View All
Create
1
Advertisement
Related Manuals for Ag Leader Technology OptRx
Summary of Contents for Ag Leader Technology OptRx
- Page 1 Vegetative Index (VI). Using the VI, OptRx calculates nitrogen application rates, to apply a variable rate on the go. OptRx creates nitrogen rates either by using the N Algorithm or by using the user defined Application Rate Table.
-
Page 2: Product Control Toolbox
Flow: Container: C. Actual Rate D. Rate 1 button E. Rate 2 button F. Manual Valve Control G. OptRx button H. Rate Increase arrow I. Rate Decrease arrow J. Rate Setup button K. Section Status Indicator L. Container Level Target Rate—The Target Rate is desired application rate. - Page 3 Press the OptRx prescription button to engage the OptRx system to apply variable rate N, based on data received from the sensors. The OptRx button will not be selectable until a Reference Strip is made or Application Rate Table is in use.
- Page 4 Algorithm to recommend an N rate, you must scan a portion of the field to create a V.I. Reference Value. Create an OptRx V.I. Reference Value In order for the OptRx Crop Sensor Module to use the N Algorithm to recommend an N rate, you must scan a portion of the field to create a V.I. Reference Value.
- Page 5 OptRx 2. Enter Reference Strip Information— The Reference Strip Information screen appears. Reference Strip Information Select the correct Sensor Rx. Press to enter the Name, Growth Stage, Europe Algorithm Settings and Variety. For Europe Algorithm Settings Sensor Corn view below.
- Page 6 6. OptRx Sensors Apply Variable Rate—The OptRx sensors will apply variable rate N, based on data received from the sensors and the current N Algorithm settings. N Algorithm settings must be reviewed for each application to verify correct inputs are used.
- Page 7 Crop Sensor Settings The Crop Sensor Settings screen is where you can adjust application rate settings specified by the OptRx Crop Sensor module. The VI Zero and Crop Sensor Settings VI Minimum settings are used as a buffer to prevent applying the wrong amount of N or applying it in areas where doing so would be ineffective.
- Page 8 Algorithm implication: The Minimum Rate is the amount of nitrogen the operator wants applied to the healthiest areas of a field. Keep in mind, OptRx may apply very low amounts or zero N if crop appears healthy at the time of application, however the N reserves in the soil may not be adequate to achieve target yield.
- Page 9 Algorithm implication: The Minimum Rate is the amount of nitrogen the operator wants applied to the healthiest areas of a field. Keep in mind, OptRx may apply very low amounts or zero N if crop appears healthy at the time of application, however the N reserves in the soil may not be adequate to achieve target yield.
- Page 10 Minimum and Maximum Rate have an equal offset from the Planned Rate. The Planned Rate should be set to the intended flat rate to apply if the OptRx N- Algorithm was not used.
-
Page 11: Sensor Setup
Serial Number: Configuration Firmware Version: being used. This checkbox will only be available Hardware Revision: when OptRx is configured with a non-Ag Leader Corn Logging Override Settings product controller (Generic ISOBUS or Serial controller). -
Page 12: Installation
VI. Glossary of OptRx Terminology Active VI — The Vegetation Index (VI) that the OptRx sensors read instantaneously during field operations. Max Rate (shown at Crop Sensor Setup) — The highest amount of N that should be applied. - Page 13 OptRx N Algorithm — The OptRx Crop Sensor Module uses an N algorithm to calculate an N rate through a Sufficiency Index reading. Near Infared Reflective - Red Reflective NDVI Normalized Difference Vegetation Index = Near Infared Reflective + Red Reflective...
- Page 14 12 V. Error Message: “Too Few Sensors for Application” Possible Cause: The OptRx configuration must have at least two working sensors to make an N rate recommendation. 1. There has been a drop in voltage to the OptRx Crop Sensors, or 2.
