Assembling the StreetStrider 8s

To assemble your StreetStrider 8s, first follow the steps and photos in this manual and view the StreetStrider 8s assembly videos where
indicated. Included in the shipping box are the StreetStrider 8s in parts, an Owner's Manual [1] and a small bundle in the top tray inside the
box containing a tool kit [2] which includes, four open end wrenches 17 x 14, 15 x 13, 14 x 12, and 13 x 10 mm [3], seven hex wrenches 8,
6, 5, 4, 3, 2.5, 2 [4], two tire levers [5], a 19 mm front hub socket [6], and a front wheel caster spanner wrench [7]. The parts bags contain the
front beam shaft assembly [8], a right crank arm screw [9], the shifter cassette parts [10], three wheel reflectors [11], two front brake cable
tips [12], zip ties [13], touch up paint [14], and two spare inner tubes [15], Figure 3.1.2.
3.1
Unpacking and Prep (see video)

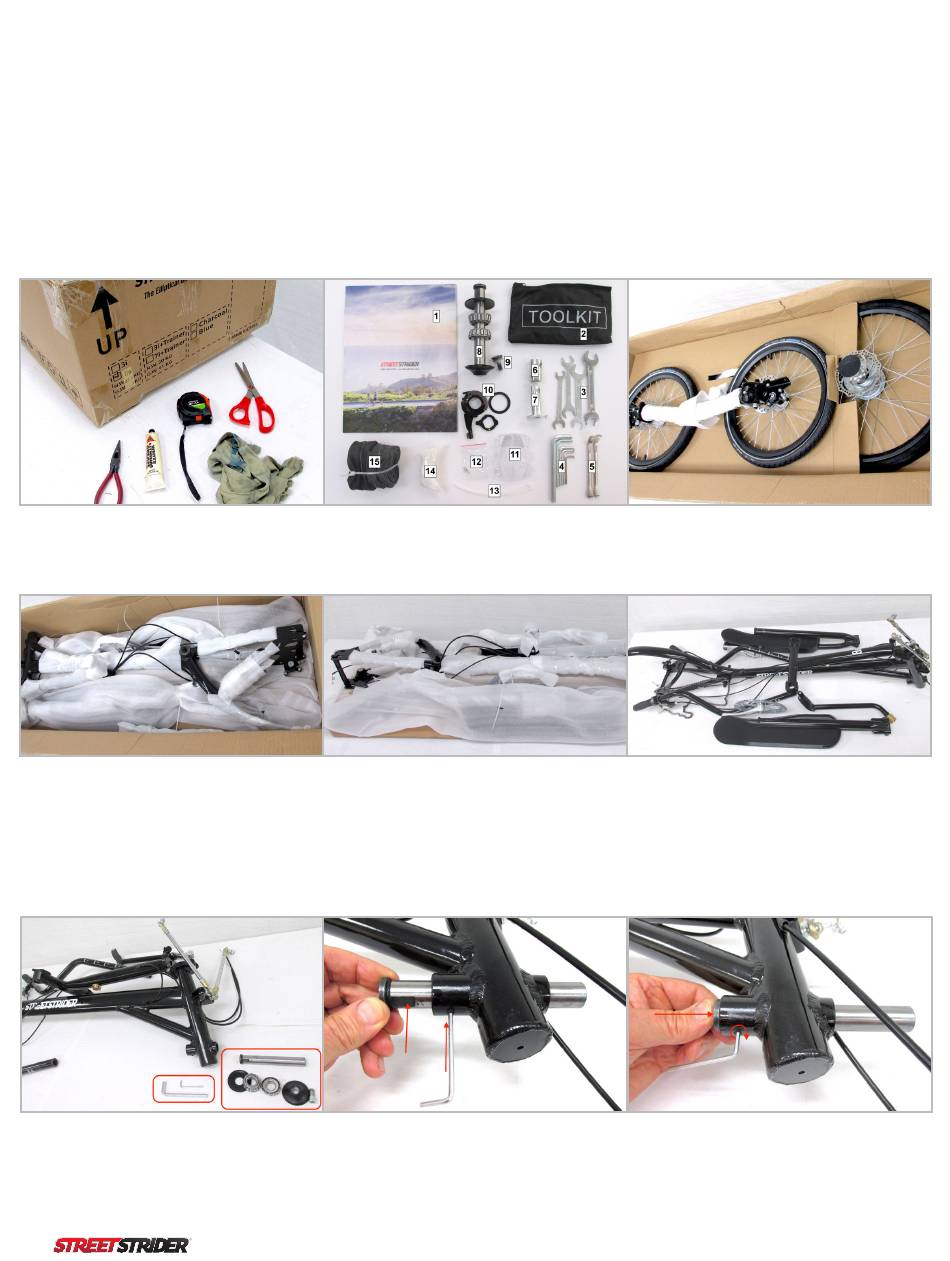

Figure 3.1.1 The StreetStrider box shows which
side is up. You will need a blade or scissors,
pliers, tape measure, grease and a rag.
Figure 3.1.4 The main frame assembly,
padded and secured with zip ties, is on the
bottom cardboard panel which has corner
cut-outs.
3.2
Front Wheels (see video)
Figure 3.2.1 Lay the frame on it's left side.
Retrieve the front beam shaft assembly,
take the cap, tapered bearings and back
plate off the shaft, and get the 8 and 3 mm
hex wrenches.
8
Figure 3.1.2 The top tray in the box holds
the parts bundle and the support layers
underneath protect the StreetStrider.
Figure 3.1.5 Grip the corner cut-outs and
lift that panel and the folded StreetStrider
out of the box, set the unit on a table, and
remove the remaining zip ties.
Figure 3.2.2 Loosen the set screw under
the front beam shaft tube with a 3 mm hex
wrench. Slide the shaft into the tube so that
the flat section on the rear end of the shaft
fits just above the 3 mm.
Copyright © 2019 StreetStrider International, LLC
Figure 3.1.3 The front wheel assembly and
rear wheel are the next 2 layers. Remove the
wheels and set aside.
Figure 3.1.6 Once all the packing is removed
set the foot platform assemblies (lower pole,
ski, foot platform, crank arm) aside.
Figure 3.2.3 With the shaft inserted all the way
forward, secure the shaft by tightening the set
screw with the 3 mm hex wrench.
