Yard force Y0LMX21P300 Operator's Manual

Yard force Y0LMX21P300 Operator's Manual

21” cordless push lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

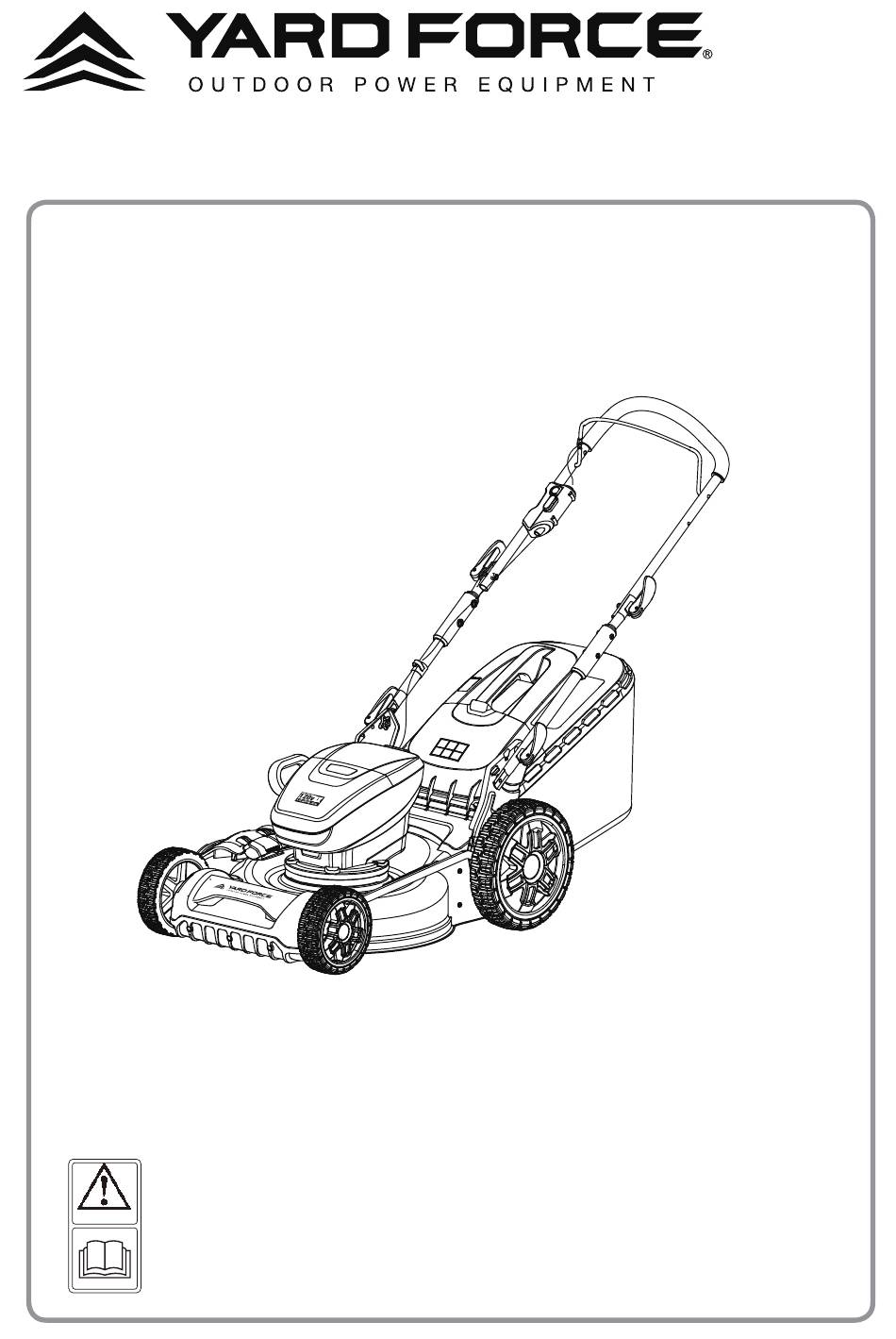

21" CORDLESS PUSH LAWN MOWER
OPERATOR'S MANUAL
Our Customer Service staff is ready to provide assistance.
In the case of a damaged or missing part, most replacement parts ship from our
facility.
For immediate help with assembly, or for additional product information, visit
www.YardForceUSA.com or email support@MerotecUSA.com
SAVE THIS MANUAL FOR REFERENCE
You will need this manual for safety
instructions, operating procedures, and Warranty.
The original sales receipt is required for warranty service.
Model: Y0LMX21P300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Y0LMX21P300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yard force Y0LMX21P300

Summary of Contents for Yard force Y0LMX21P300

  • Page 1 Model: Y0LMX21P300 21” CORDLESS PUSH LAWN MOWER OPERATOR’S MANUAL Our Customer Service staff is ready to provide assistance. In the case of a damaged or missing part, most replacement parts ship from our facility. For immediate help with assembly, or for additional product information, visit www.YardForceUSA.com or email support@MerotecUSA.com...

  • Page 2: Table Of Contents

    DESCRIPTION OF PRODUCT PARTS Y0LMX21P300 Original Instructions PARTS LIST (See Fig. 1) TABLE OF CONTENTS Side discharge chute Cutting height adjustment handle Grass bag Safety lock button Description of product parts........................... 3 Upper handle Blade-Stop/Start lever Technical specifications ........................... 5...

  • Page 3: Technical Specifications

    DESCRIPTION OF PRODUCT PARTS TECHNICAL SPECIFICATIONS DELIVERY LIST (See Fig.2) PARTS AND DIAGRAM LIST Main mower x 1 Item No. Y0LMX21P300 Grass bag x 1 Voltage/Capacity 120 V DC / 2.5 Ah Li-ion Charger x 1 Deck Size 21 "...
  • Page 4 SAFETY SYMBOLS SAFETY INSTRUCTIONS WARNING SYMBOLS ON THE BATTERY PACK The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger.
  • Page 5 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS SAFETY RULES FOR LAWN MOWER IMPORTANT SAFETY INSTRUCTIONS Preparation While operating the product always wear substantial footwear and long trousers. Do not operate the READ ALL INSTRUCTIONS BEFORE USING MOWER product when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
  • Page 6 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS SPECIAL OPERATION SAFETY FOR THE CHARGER MAINTENANCE AND STORAGE Recharge only with the charger specified by the manufacturer. Do not use the original charger on other Keep all nuts, bolts and screws tight to be sure the product is in safe working condition. li-ion batteries or on any other type of battery—fire or explosion may occur.

  • Page 7: Assembly

    ASSEMBLY ASSEMBLY UNFOLD THE HANDLE Check the cable clips fitting 1. Rotate the handle quick release levers to release the operation handle (Both sides). (See Fig. 3) Make sure the cable clips fits on upper handle securely and the cable into the cable clips. (See Fig. 6) Fig.

  • Page 8: Adjustment

    ASSEMBLY ASSEMBLY Lift the rear flap with one hand and push the mulching plug into the rear discharge chute until it is Set required function locked in place. Make sure that the mulching plug is locked in position. (See Fig. 9). WARNING! Before changing any accessory, switch off the tool and make sure that the blade has Fig.

  • Page 9: Operation

    OPERATION OPERATION CHARGING THE BATTERY PACK (Fig. 13) When the battery pack over discharges or remains very low power, the red LED light will flash. (see Fig. 14 b) When the battery pack temperature is exceeded, the red LED light will flash. Cool it down for 10-20min. NOTE: (see Fig.
  • Page 10 OPERATION OPERATION WARNING: Make sure that the tool is “POWER OFF”. Depress the safety lock button and keep it in place. Whilst pulling the blade-Stop/ Start lever towards the handle and hold it in position. The motor will start to work, blade will rotate. Then release the safety lock button.

  • Page 11: Maintenance And Storage

    OPERATION OPERATION OPERATE THE LAWN MOWER EMPTYING THE GRASS BAG Operation on a slope: When the grass bag full indicator starts to close during grass cutting, it is time to empty the grass bag. Slopes are a major factor related to slip-and-fall accidents, which can result in severe injury. NOTE: before taking off the grass bag, switch OFF the power and wait until the blade has come to WARNING: Always be sure of your footing on slopes.

  • Page 12: Trouble Shooting

    MAINTENANCE AND STORAGE TROUBLE SHOOTING BATTERY MAINTENANCE: WARNING! Before performing any repair work, always ensure that the battery pack/safety key has been removed and wait until the blade has stopped completely and the tool has cooled down. Use the following procedures to enable optimum usage of the battery: Protect the battery against moisture and water.

  • Page 13: Warranty

    If service or a warranty evaluation is requested, Yard Force will provide an RGA number that should be Made in China at a SUMEC manufacturing facility used in all communications with Yard Force and is required to be indicated on the product itself and on the outside of the box.
