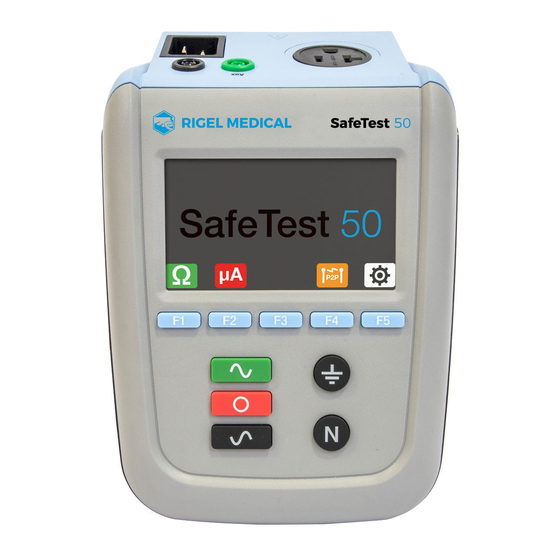

How do I update the firmware on
SafeTest 50 and 60?
Equipment required
The following equipment is required for this procedure:
1. PC with VCOM driver installed
2. USB A to micro-USB cable
3. SafeTest Firmware & Utility downloadable from
http://www.rigelmedical.com/SafeTestFirmware. Extract to a location on
your machine
SafeTest unit Firmware update procedure
Note: Turn the SafeTest unit off and remove the mains power cord to the
unit before starting.
Preparing the SafeTest unit for update
a) Connect SafeTest unit to PC with USB A to micro-USB cable as indicated
in Figure 1. Do not connect to PC yet
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rigel SafeTest 50
Summary of Contents for Rigel SafeTest 50
- Page 1 How do I update the firmware on SafeTest 50 and 60? Equipment required The following equipment is required for this procedure: 1. PC with VCOM driver installed 2. USB A to micro-USB cable 3. SafeTest Firmware & Utility downloadable from http://www.rigelmedical.com/SafeTestFirmware.
- Page 2 Figure 1. Application Update Setup with assembled unit b) Press and hold F2 BUTTON while inserting other end of the USB cable into your PC. This powers the unit up in update mode. The unit should generate a double beep and the screen will remain blank. c) Release button F2. ...
- Page 3 Figure 2. SafeTest FW_Updater program start screen B. Select the Port to use. (In this guide, it is COM7, but it can change in each computer) NOTE: To find the correct COM port, disconnect the PCB and check which port disappears, connect again, and select the new COM port which appears again in the drop-box. ...
- Page 4 D. Select the Firmware data file for the appropriate unit from the approved firmware directory: a. For the SafeTest 60: SafeTest_Euro_60_vx_xx.bin b. For the SafeTest 50: SafeTest_USA_50_vx_xx.bin NOTE: The Vx_x indicates the current version. At time of writing the current version was V1_07.
- Page 5 Figure 5. SafeTest_FW_Updater program with COM port and File selected E. Click the Update button. The program will advise the file has been sent Figure 6. SafeTest_FW_Updater program - Data sent confirmation window F. After the unit writes the Firmware correctly, it will generate a SINGLE BEEP.
- Page 6 K. NOTE: This screen can change in future versions or if it has been used in different language. If you require more help, please contact us at https://www.seaward.com/gb/enquire/. Registered office: Seaward Electronic Ltd, 15-18 Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW, United Kingdom. Registered office: Seaward Electronic Ltd, 15-18 Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW, United Kingdom.
