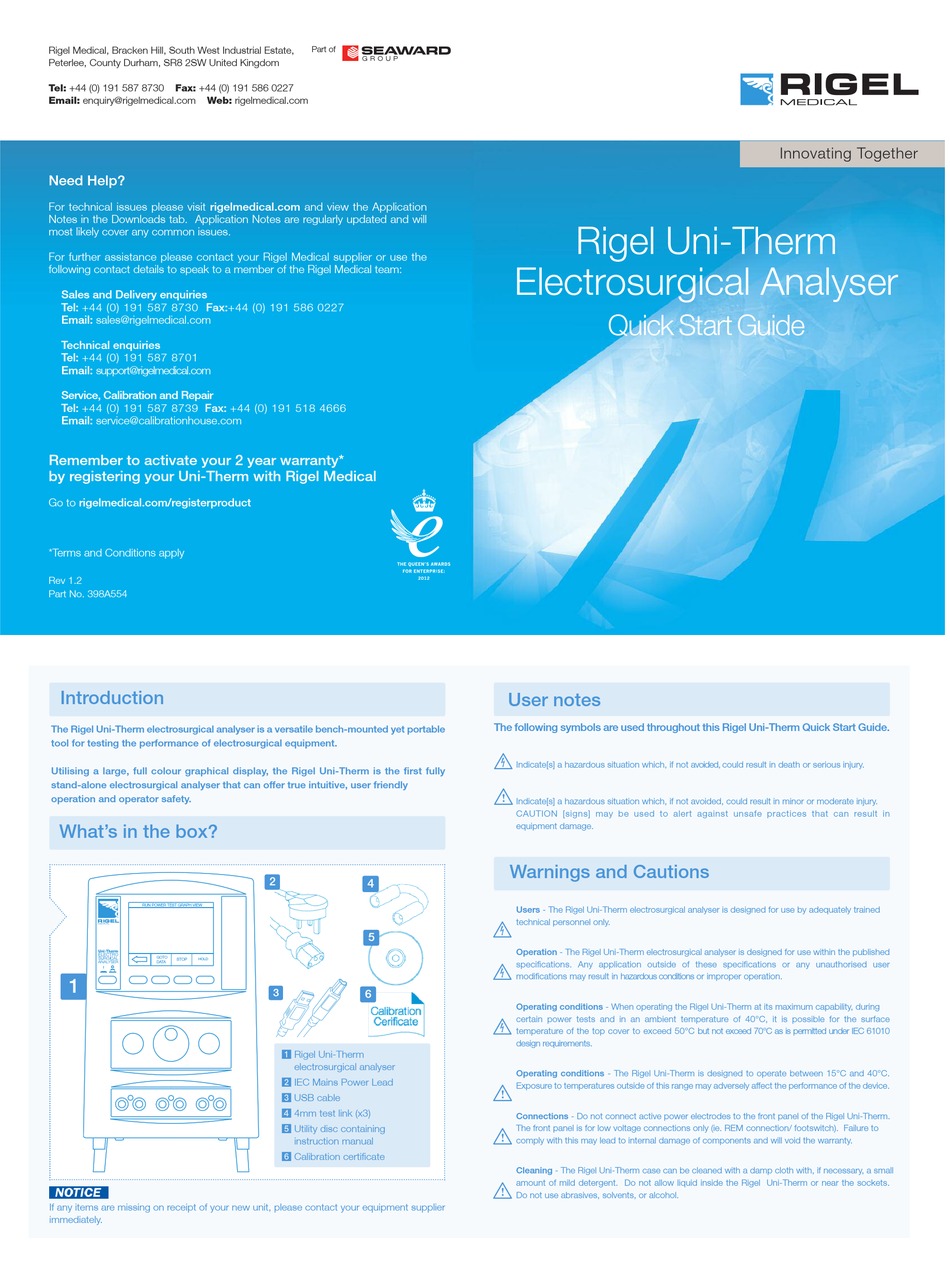

Rigel Uni-Therm Quick Start Manual

Rigel Medical, Bracken Hill, South West Industrial Estate,
Peterlee, County Durham, SR8 2SW United Kingdom
Tel: +44 (0) 191 587 8730 Fax: +44 (0) 191 586 0227
mail: enquiry@rigelmedical.com Web: rigelmedical.com
Need Help?
For technical issues please visit rigelmedical.com and view the Application
Notes in the Downloads tab. Application Notes are regularly updated and will
most likely cover any common issues.
For further assistance please contact your Rigel Medical supplier or use the
following contact details to speak to a member of the Rigel Medical team:
Sales and Delivery enquiries
Tel: +44 (0) 191 587 8730 Fax:+44 (0) 191 586 0227
Email: sales@rigelmedical.com
Technical enquiries
Tel: +44 (0) 191 587 8701
Email: support@rigelmedical.com
Service, Calibration and Repair
Tel: +44 (0) 191 587 8739 Fax: +44 (0) 191 518 4666
Email: service@calibrationhouse.com
Remember to activate your 2 year warranty*
by registering your Uni-Therm with Rigel Medical
Go to rigelmedical.com/registerproduct
*Terms and Conditions apply
Rev 1.2
Part No. 398A554
Introduction
The Rigel Uni-Therm electrosurgical analyser is a versatile bench-mounted yet portable
tool for testing the performance of electrosurgical equipment.
Utilising a large, full colour graphical display, the Rigel Uni-Therm is the first fully
stand-alone electrosurgical analyser that can offer true intuitive, user friendly
operation and operator safety.
What's in the box?
RUN POWER TEST GRAPH VIEW
GOTO
STOP HOLD
DATA
1
If any items are missing on receipt of your new unit, please contact your equipment supplier
immediately.
Part of
2
4
5
3
6
Rigel Uni-Therm
electrosurgical analyser
IEC Mains Power Lead
USB cable
4mm test link (x3)
Utility disc containing
instruction manual
Calibration certificate
Rigel Uni-Therm
Electrosurgical Analyser
Quick Start Guide

User notes

The following symbols are used throughout this Rigel Uni-Therm Quick Start Guide.
h
Indicate[s] a hazardous situation which, if not avoided, could result in death or serious injury.
i
Indicate[s] a hazardous situation which, if not avoided, could result in minor or moderate injury.
CAUTION [signs] may be used to alert against unsafe practices that can result in
equipment damage.

Warnings and Cautions

h
Users - The Rigel Uni-Therm electrosurgical analyser is designed for use by adequately trained
technical personnel only.
h
Operation - The Rigel Uni-Therm electrosurgical analyser is designed for use within the published
specifications. Any application outside of these specifications or any unauthorised user
modifications may result in hazardous conditions or improper operation.
h
Operating conditions - When operating the Rigel Uni-Therm at its maximum capability, during
certain power tests and in an ambient temperature of 40°C, it is possible for the surface
temperature of the top cover to exceed 50°C but not exceed 70°C as is permitted under IEC 61010
design requirements.
i
Operating conditions - The Rigel Uni-Therm is designed to operate between 15°C and 40°C.
Exposure to temperatures outside of this range may adversely affect the performance of the device.
i
Connections - Do not connect active power electrodes to the front panel of the Rigel Uni-Therm.
The front panel is for low voltage connections only (ie. REM connection/ footswitch). Failure to
comply with this may lead to internal damage of components and will void the warranty.
i
Cleaning - The Rigel Uni-Therm case can be cleaned with a damp cloth with, if necessary, a small
amount of mild detergent. Do not allow liquid inside the Rigel Uni-Therm or near the sockets.
Do not use abrasives, solvents, or alcohol.
Innovating Together
