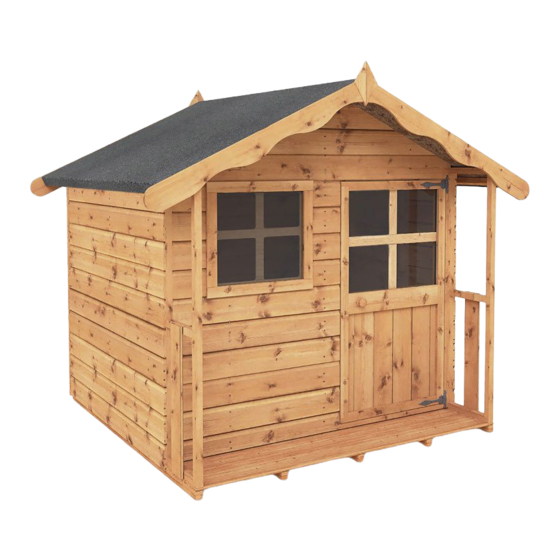

Mercia Garden Products Poppy Quick Start Manual

02POP411411-V1
WARNING: Only for domestic use
Not suitable for children under 36 month
To be used under direct supervision of an adult
MADE IN GREAT BRITAIN
Length - 1512mm
Width - 1498mm
Height - 1541mm
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
- Make sure you have a suitable base ready to erect your building
TIMBER
As with all natural materials, timber can be a ected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
highly recommended that you treat the garden building with a wood preserver
within 3 months of assembly. This will need to be re-applied annually to ensure
longevity of your building. Care must be taken when constructing the garden
building that it is not touching the ground and is on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. the cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently tested to EN71 level. We
cannot accept responsibility for your safety whilst erecting or using this product. Children of any age should not be left to play unsupervised.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23 6QN
Retain Instructions for future reference
x2
This building should be erected by
two Adults.
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
For Assistance Please
Contact Customer Care on
01636 880514
Contents
1
5
Door gable
4
Left side panel
Fixing Kit
Floor joists - 1500mm x5
8
Veranda boards - 1470mm x3
9
Roof support bar- 27 x 45x 1155mm
10
Cover trim- 12 x 45x 1155mm x2
11
Fascia board x4
12
Roof eaves - 1520mm x2
13
Finial x2
Fascia block
14
15
2
3
x2
1520 x 920mm
Plain gable
6
1470 x 1210mm
Right side panel
Window cross x3
17
Window Bar - 505
18
Window Bar - 473
19
Beading -450 x2
20
21 Beading -245 x4
Ply triangle
Veranda Strip 570mm x2
22
16
Roof sheet
Floor sheet
7
Door
