Cascade TFC Raymond 4150 Installation Instructions

c
Installation
Instructions
This manual provides installation instructions for connecting
Cascade TFC™ wiring to a Raymond truck, model 4150/4250.
1
Connect the Relay (fused) Position A wire to the Distribution
Board Position "TS1-6" (+) voltage at key-up.
2
Connect the ground wire of the voltage converter and relay
Position B to the Distribution Board Position "TS1-2" (-)
ground.
3
Connect the positive fused wire of the voltage converter
to the Distribution Board Position "TS1-4" (+) 36V Constant
Power.
3
(+) 36V
TS1-4
Constant Power
cascade
corporation
For Technical Support . . .
Call: 1-800-227-2233 Fax: 1-888-329-8207
Internet: www.cascorp.com
Write: Cascade Corporation, PO Box 20187, Portland, OR 97294
Fuse, 2A
2
1
Distribution Distribution
Board Board
TS1-2 TS1-6
(-) Ground (+) at Key-Up
W
TFC™ Raymond
(Model 4150/4250)

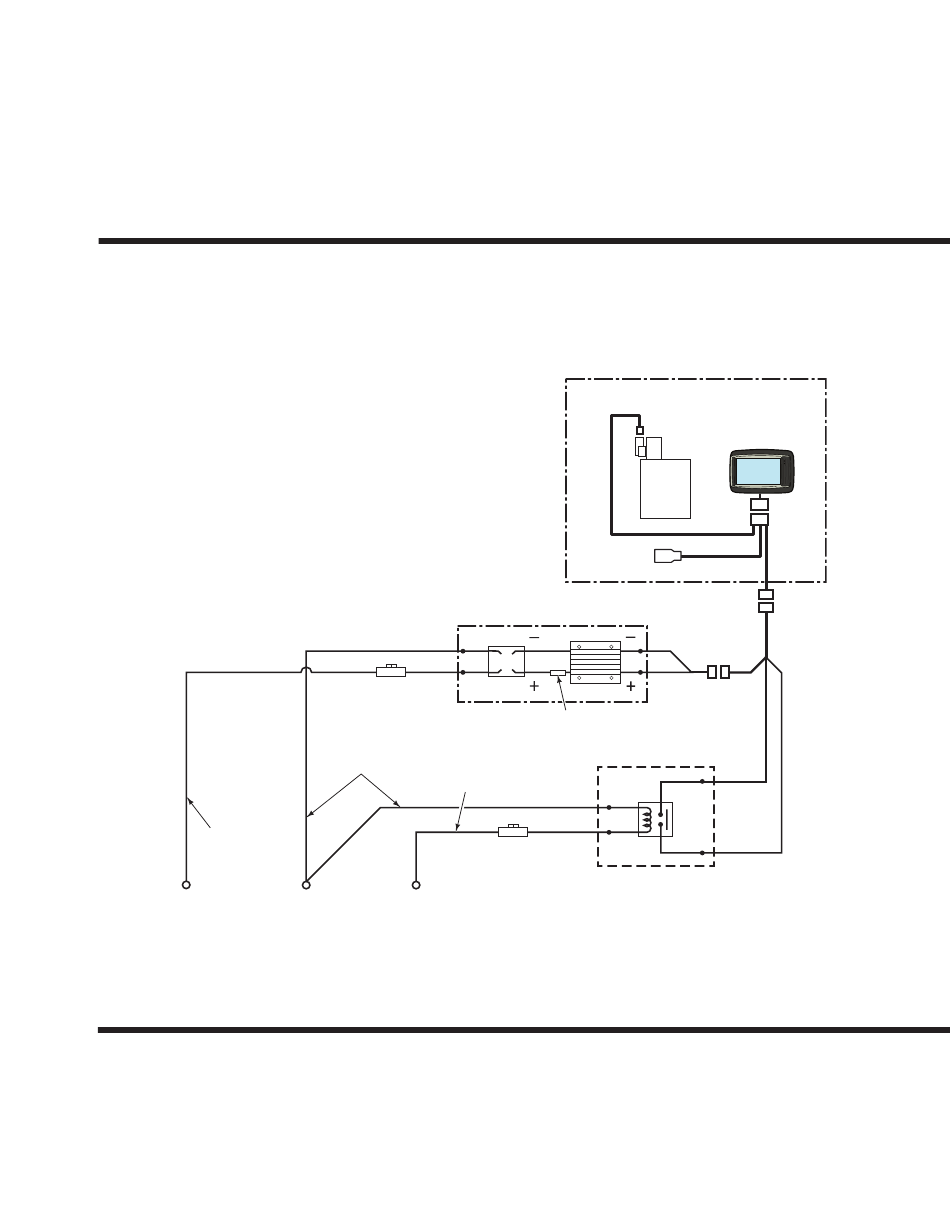

Wire Connection Guide
TFC™ Components
Voltage Converter Kit
(Part No. 6816341)
Voltage Converter Fuse
B
A
Fuse, 2A
Key Power Relay Kit – 36V
(Part No. 6851614)
To Order Parts . . .
Call: 1-888-227-2233 Fax: 1-888-329-0234
Internet: www.cascorp.com
Write: Cascade Corporation, 2501 Sheridan Ave., Springfield, OH 45505
