c

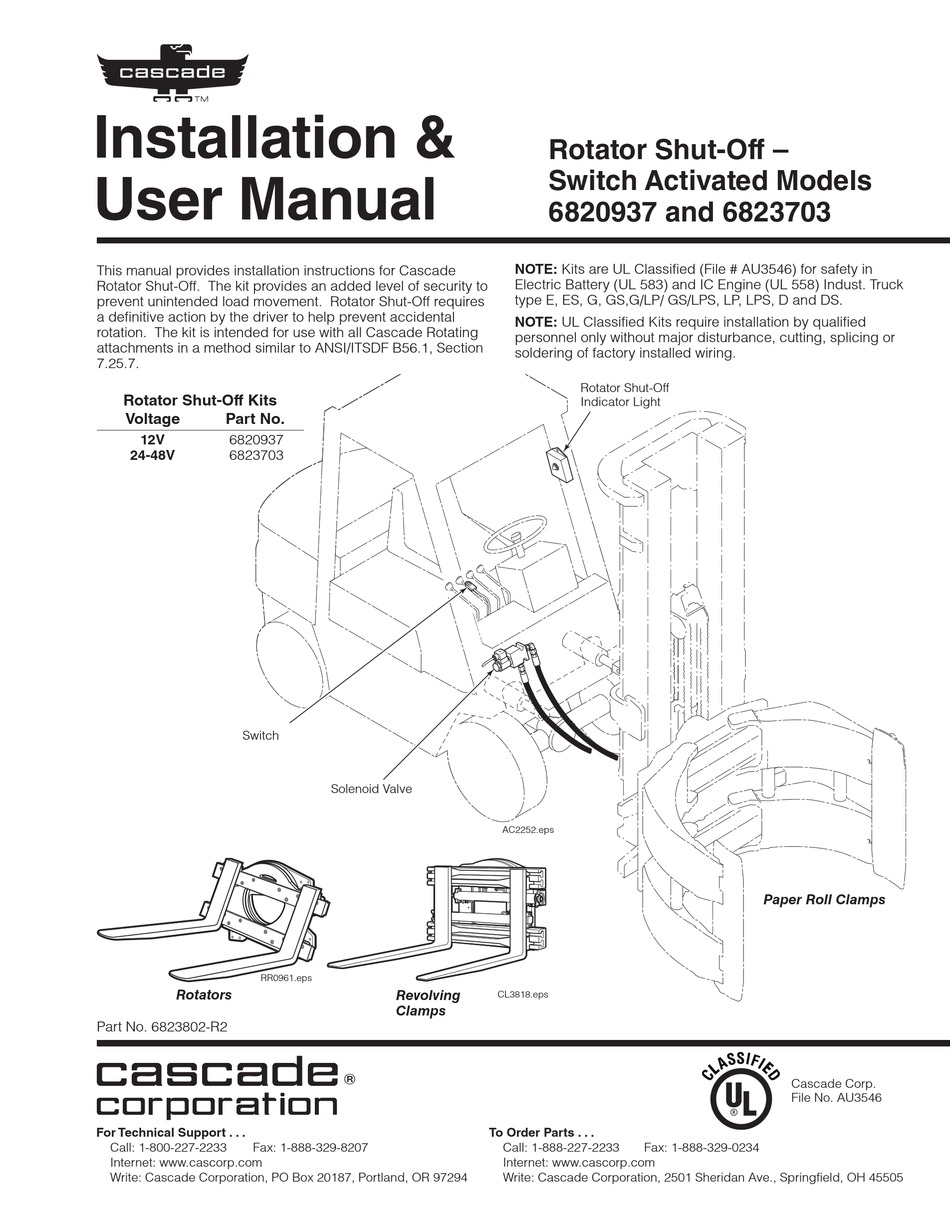

Installation &
User Manual
This manual provides installation instructions for Cascade
Rotator Shut-Off. The kit provides an added level of security to
prevent unintended load movement. Rotator Shut-Off requires
a definitive action by the driver to help prevent accidental
rotation. The kit is intended for use with all Cascade Rotating
attachments in a method similar to ANSI/ITSDF B56.1, Section
7.25.7.
Rotator Shut-Off Kits
Voltage
Part No.
6820937
12V
24-48V
6823703
Switch
RR0961.eps
Rotators
Part No. 6823802-R2
cascade
corporation
For Technical Support . . .
Call: 1-800-227-2233
Fax: 1-888-329-8207
Internet: www.cascorp.com
Write: Cascade Corporation, PO Box 20187, Portland, OR 97294
Solenoid Valve
AC2252.eps
Revolving
CL3818.eps
Clamps
W
To Order Parts . . .
Call: 1-888-227-2233
Internet: www.cascorp.com
Write: Cascade Corporation, 2501 Sheridan Ave., Springfield, OH 45505
Rotator Shut-Off –
Switch Activated Models
6820937 and 6823703
NOTE: Kits are UL Classified (File # AU3546) for safety in
Electric Battery (UL 583) and IC Engine (UL 558) Indust. Truck
type E, ES, G, GS,G/LP/ GS/LPS, LP, LPS, D and DS.
NOTE: UL Classified Kits require installation by qualified
personnel only without major disturbance, cutting, splicing or
soldering of factory installed wiring.
Rotator Shut-Off
Indicator Light
Fax: 1-888-329-0234
Paper Roll Clamps
Cascade Corp.
File No. AU3546

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6820937 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cascade 6820937

  • Page 1 NOTE: UL Classified Kits require installation by qualified rotation. The kit is intended for use with all Cascade Rotating personnel only without major disturbance, cutting, splicing or attachments in a method similar to ANSI/ITSDF B56.1, Section soldering of factory installed wiring.
  • Page 2: Installation

    Installation Perform by Qualified Personnel only. Remove cable from Disconnect the cable from the negative battery terminal or negative battery terminal as directed by OEM truck manual. Locate and install the solenoid valve and spacer on the truck cowl using customer supplied .25 in. (6 mm) fasteners.
  • Page 3 Installation (continued) Install indicator light NOTE: UL Classified Kits require installation by qualified personnel only without major disturbance, cutting, splicing or soldering of factory installed wiring. Install cab indicator light on the truck dashboard, overhead guard, or any other easy to see location using customer supplied hardware OR the Velcro strip provided.
  • Page 4: Operation

    Test Procedure Perform by Qualified Personnel only. Test the installation before putting the truck in service. Indicator When the truck key is turned ON, the cab indicator green light should be off. Press the button and observe that the cab indicator green light turns on.
  • Page 5 Lockwasher 6820929 Solenoid Valve Assembly ▲ 765718 6813173 Coil, 12V — Fuse, 30A @ 125 Vdc 6040279 Solenoid Cartridge ● Items 1–13. ■ Items 1–11, and 14–22. ▲ Includes items 9 & 10. Reference: 6820937 (R3), 6823703 (R3), 6884864 (R1)
  • Page 6 Do you have questions you need answered right now? Call your nearest Cascade Service Department. Visit us online at www.cascorp.com AMERICAS Cascade Corporation Cascade Canada Inc. Cascade do Brasil U.S. Headquarters 5570 Timberlea Blvd. Praça Salvador Rosa, 2201 NE 201st Mississauga, Ontario 131/141-Jordanópolis,...
