Rear Panel Interface Connectors
1 2
6

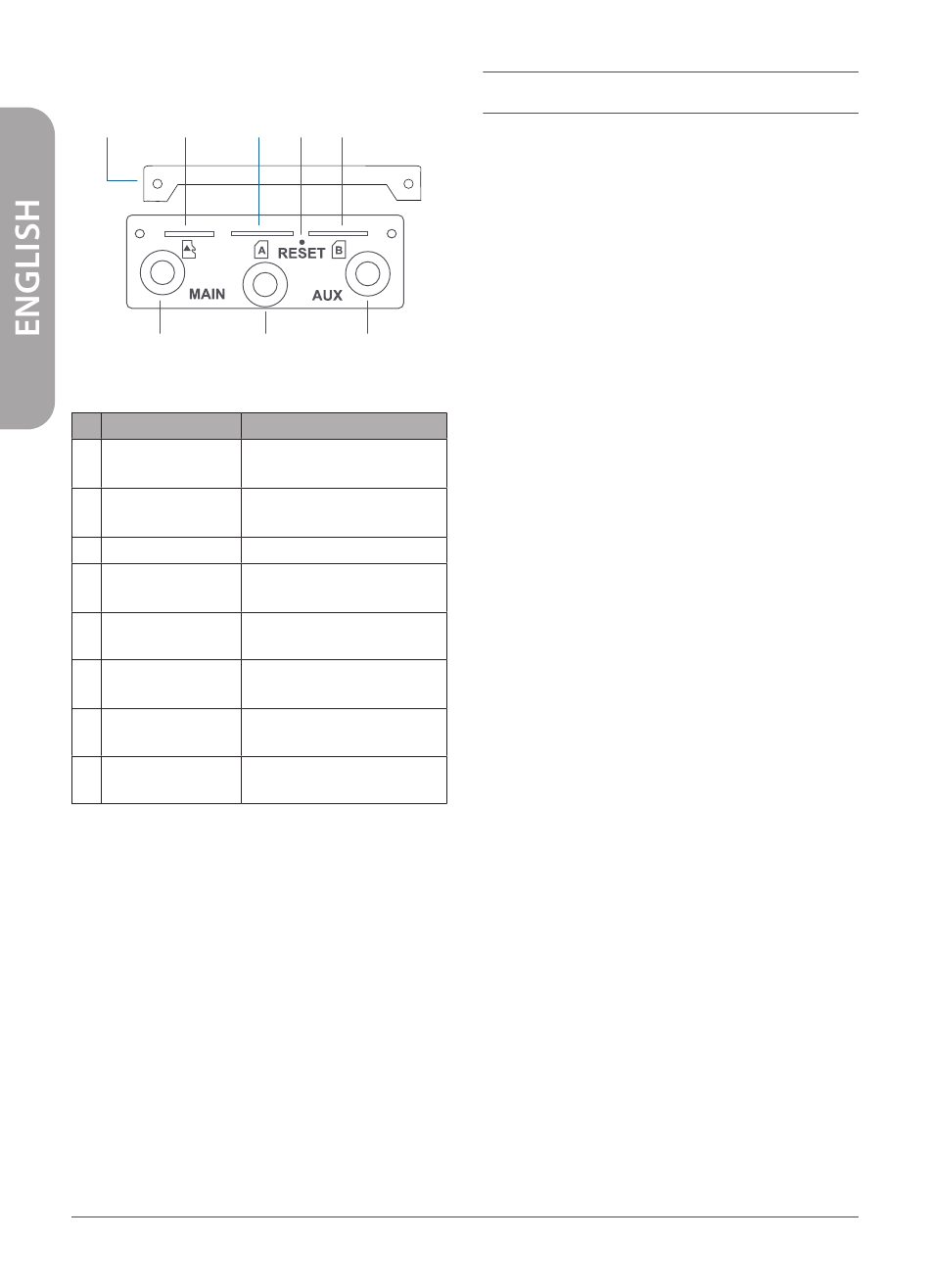

Figure 3: Rear Panel Interface Connectors
# Feature
Security plate covering the
1 Security Plate
SIM and microSD card slots.
MicroSD
Slot for a microSD card for
2
Card Slot storage.
3 SIM A
Primary SIM card.
Press and hold for 3 seconds
4 Reset
to reset the device.
S e c o n d a r y В с та н о в і ть
5 SIM B
micro-SIM-карту в сло card.
SMA Connector
Female SMA connector for
6
LTE Main
the main antenna.
SMA Connector
Female SMA connector for
7
GPS
the GPS antenna.
SMA Connector
Female SMA connector for
8
LTE AUX
the auxiliary antenna.
Table 3: Rear Panel Interface
Connector Descriptions
2
3 4 5
7 8
Description

Hardware Installation

Before You Begin
Observe the following precautions to help
prevent shutdowns, equipment failures, and
personal injury:
• Install the DWM-315 in a cool and dry
place.
• Install the DWM-315 in a site free from
strong electromagnetic sources, vibration,
dust, excessive moisture, and direct
sunlight.
• Place antennas in an unobstructed area
with a clear mobile signal. Avoid metal
boxes, brick walls, and other dense
materials.
• Visually inspect the power connector and
make sure that it is fully secure.
• Do not stack any devices on top of the
DWM-315.

Installing SIM Card(s)

The DWM-315 is equipped with dual-SIM slots.
At least one active SIM card with Internet access
is required for proper operation.
1. Unscrew the two screws on the security
plate to remove it and get access to the
SIM card slots.
2. Insert a micro-SIM card into the slot
labelled SIM A with the contacts facing
down. If you wish to install a second SIM
card, insert it into the slot labelled SIM B.
