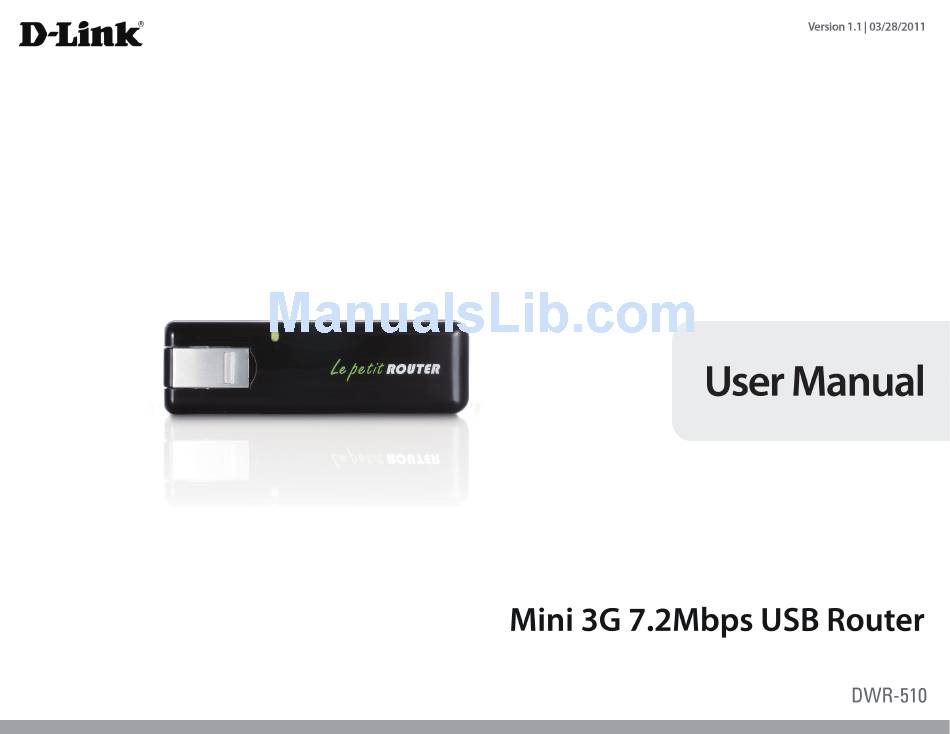

- Page 2 Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
-
Page 3: Table Of Contents
Modem Mode ............. 6 Wireless Settings ........... 23 Router Mode ............7 Manual Wireless Setup .......... 26 Modem Mode: D-Link Connection Manager ....8 Network Setup ............27 New Profile .............. 8 Administrator Settings ........... 28 Establishing a Connection ........9 Factory Reset ............ - Page 4 What is Wireless? ..........48 Tips ................ 50 Wireless Modes ............. 51 Networking Basics ............ 52 Check your IP address .......... 52 Statically Assign an IP address ......53 Warnings and Declarations ........54 Technical Specifications........... 58 D-Link DWR-510 User Manual...
-
Page 5: Product Overview
Section 1 - Product Overview Product Overview Package Contents • D-Link DWR-510 Mini 3G 7.2Mbps USB Router • Manual on the device System Requirements • A compatible (U)SIM card with service.* • Computers with Windows , Macintosh , or Linux-based operating systems with an installed Ethernet ®... -
Page 6: Introduction
When using the D-Link DWR-510 Mini 3G 7.2Mbps USB Router as a 3G USB modem, you can not only keep your PC connected to 3G network, but also turn off your PC’s Wi-Fi radio in order to save battery power. -
Page 7: Hardware Overview
Indicates the status of your network connection. Color Solid Blinking (Fast) Blinking (Slow)* Blue WCDMA/HSDPA/HSUPA Transmitting Dial on demand Connected Green GSM/GPRS Connected Transmitting Dial on demand SIM error/No service * This applies when the device is in standby mode. D-Link DWR-510 User Manual... -
Page 8: Wireless Installation Considerations
Wireless Installation Considerations The DWR-510 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. -
Page 9: Product Setup
2. Insert the SIM card with the gold contacts facing down. Make sure that you insert the SIM card in the right direction, with the notched edge facing away from the DWR-510’s contacts. 3. Replace the back cover. D-Link DWR-510 User Manual... -
Page 10: Connection Setup
4. Enter the PIN code for the SIM card. 5. Click the “Connect” icon in the Connection Manager. 6. You can now use the DWR-510 Mini 3G 7.2Mbps USB Router as a 3G modem. Note: You have to install the Connection Manager software when using the DWR-510 for the first time. -
Page 11: Router Mode
Alternatively, you can connect the DWR-510 to a USB power adapter. Modem/Router switch 3. Find the Wi-Fi network with the SSID “dlink_DWR-510” and connect to it. in router position 4. You can now use the DWR-510 Mini 3G 7.2Mbps USB Router as a 3G router. D-Link DWR-510 User Manual... -
Page 12: Modem Mode: D-Link Connection Manager
Modem Mode: D-Link Connection Manager When using Modem Mode, you will need to use the D-Link Connection Manager. It allows you to manage your 3G connection, and lets you send and receive SMS messages through a simple to use interface. -
Page 13: Establishing A Connection
Internet, send e-mail, send text messages, and perform other tasks online. Connect Ending a Connection If you wish to disconnect, click the Connect button again. Disconnect D-Link DWR-510 User Manual... -
Page 14: Text Messaging (Sms)
Section 3 - Configuration Text Messaging (SMS) The DWR-510 can be used to perform all the text messaging functions that can be done on a mobile phone such as sending, receiving, replying, forwarding and deleting. Windows D-Link DWR-510 User Manual... -
Page 15: New/Reply/Forward Text Message
5. Click Send to send the message. Deleting a Message 1. Click the SMS button. 2. Select the messages you want to delete and click Delete. 3. Click Delete to delete the selected messages. 4. Click Yes to confirm. D-Link DWR-510 User Manual... -
Page 16: Contact Management
Section 3 - Configuration Contact Management The DWR-510 contacts manager displays all the contacts on the SIM Card. Contacts can be added, edited, deleted and imported. Adding Contacts 1. Click the Contacts button. 2. Click the New button. 3. In the Add Contact window, enter the contact name and telephone number. -
Page 17: Editing Contacts
4. Modify the contacts details. Windows 5. Click OK to save the changes. Deleting Contacts 1. Click the Contacts button. 2. Select the contact to delete and click the Delete button. 3. Click Yes to confirm the deletion. D-Link DWR-510 User Manual... -
Page 18: Importing Vcards To Contacts
1. Click the Contacts button. 2. Click the Export button. 3. Select the destination to save the vCard(s). 4. Click OK to export the card(s). 5. After the export, a message will be displayed. Click OK to close. D-Link DWR-510 User Manual... -
Page 19: Router Mode: D-Link Connection Manager (Windows Only)
(Windows only) The D-Link Mobile Connection Manager allows you to conveniently adjust options such as the wireless or network settings for the DWR-510. You can also access these settings by using the web-based configuration utility(see page 18). Wireless Settings 1. Enter a wireless network name. When connecting other devices to your wireless network, this is the name you will need to search for. -
Page 20: Advanced Settings
3. Set the Reconnect Mode to Always On, On Demand, or Manual. 4. Enter a maximum idle time in minutes or choose 0 for infinite. 5. Enter a PIN code. 6. Click Apply to save the settings. D-Link DWR-510 User Manual... -
Page 21: Tools
Section 3 - Configuration Tools 1. If you want to change the password for the DWR-510, enter a new password in the text box. 2. Enter the password again to verify it. 3. Click Apply to save the settings. D-Link DWR-510 User Manual... -
Page 22: Router Mode: Web-Based Configuration Utility
Type admin in the User Name field and then enter your password. Leave the password blank by default. Click the Login button to log in to the router. If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance. D-Link DWR-510 User Manual... -
Page 23: Internet Connection Setup Wizard
Once logged into the web interface of the router, the Setup > Internet page will appear. Click the Internet Connection Setup Wizard button to quickly configure your router using the setup wizard. If you want to enter your settings without running the wizard, click Manual Internet Connection Setup and skip to “Manual Internet Configuration”. D-Link DWR-510 User Manual... - Page 24 Section 3 - Configuration Click Next to continue. Create a new password and then click Next to continue. Configure your 3G Internet Connection settings and then click Next to continue. D-Link DWR-510 User Manual...
- Page 25 Section 3 - Configuration Click Connect to save your settings. Once the router has finished rebooting, click Continue. Please allow 1-2 minutes to connect. D-Link DWR-510 User Manual...
-
Page 26: Internet Setup
Enter the APN description. Reconnect Mode: Set to Always On, On Demand, or Manual. Maximum Idle Time: Enter a maximum idle time in minutes. Choose 0 for infinite. SIM Card Settings: Enter the PIN code for the SIM card. D-Link DWR-510 User Manual... -
Page 27: Wireless Settings
Setup and refer to “Manual Wireless Connection Setup”. Click the Wireless Connection Setup Wizard button to view the Wireless Security Setup Wizard menu. The Welcome menu lists the steps used for setup. Click on the Next button to continue. D-Link DWR-510 User Manual... - Page 28 It is recommended that you tick the checkbox to use WPA wireless encryption to secure your wireless network. Click Next to continue. Type a password that you would like to use for your wireless network in the Network Key: entry field. Click Next to continue. D-Link DWR-510 User Manual...
- Page 29 The final menu appears to indicate that setup is complete. You should write down the Wireless Network Name (SSID) and Network Key for future reference when connecting other wireless devices to your wireless network. Click Save to finish the Security Wizard. D-Link DWR-510 User Manual...
-
Page 30: Manual Wireless Setup
Section 3 - Configuration Manual Wireless Setup Use this section to configure the wireless settings for your D-Link router. Wireless Network Name: Enter a wireless network name. Max. Associated Number: Set the maximum number of clients that can connect wirelessly. -
Page 31: Network Setup
Enter the router IP address. Subnet Mask: Enter the subnet mask. Enable DHCP Server: If you want to enable DHCP Server, check Enabled. Otherwise, check Disabled. DHCP IP Address Range: Enter values for the DHCP IP address range. D-Link DWR-510 User Manual... -
Page 32: Administrator Settings
Section 3 - Configuration Administrator Settings Use this section to change the password for the Administrator account. Password: Enter a password. Verify Password: Verify the password. D-Link DWR-510 User Manual... -
Page 33: Factory Reset
Section 3 - Configuration Factory Reset Use this section to restore the router to the factory default settings. Restore To Factory Default: Click this button to restore all settings to the factory defaults. D-Link DWR-510 User Manual... -
Page 34: Device Information
All of your Internet and network connection details are displayed on this page. The firmware version is also displayed here. General: Displays the firmware version. WAN: Displays information about the WAN. LAN: Displays information about the LAN. D-Link DWR-510 User Manual... -
Page 35: Wireless Information
Section 3 - Configuration Wireless Information All of your wireless connection details are displayed on this page. Number of wireless clients: Displays the wireless clients and their MAC addresses. D-Link DWR-510 User Manual... -
Page 36: Support
Section 3 - Configuration Support D-Link DWR-510 User Manual... -
Page 37: Wireless Security
Section 4 - Security Wireless Security This section will show you the different levels of security you can use to protect your data from intruders. The DWR-510 offers the following types of security: • WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) •... -
Page 38: Configure Wep
4. Click Save Settings to save your settings. If you are configuring the router with a wireless adapter, you will lose connectivity until you enable WEP on your adapter and enter the same WEP key as you did on the router. D-Link DWR-510 User Manual... -
Page 39: What Is Wpa
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network. D-Link DWR-510 User Manual... -
Page 40: Configure Wpa-Psk/Wpa2-Psk
4. Click Save Settings to save your settings. If you are configuring the router with a wireless adapter, you will lose connectivity until you enable WPA-PSK (or WPA2- PSK) on your adapter and enter the same passphrase as you did on the router. D-Link DWR-510 User Manual... -
Page 41: Connect To A Wireless Network
(displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DWR-510 User Manual... -
Page 42: Configure Wireless Security
Wireless Utility by right-clicking on the ® ™ wireless computer icon in your system tray (lower right corner of screen). Select Connect to a network. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DWR-510 User Manual... - Page 43 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Link DWR-510 User Manual...
-
Page 44: Using Windows ® Xp
(displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DWR-510 User Manual... -
Page 45: Configure Wep
X P W i r e l e s s U t i l i t y b y r i g h t - ® clicking on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DWR-510 User Manual... - Page 46 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WEP settings are correct. The WEP key must be exactly the same as on the wireless router. D-Link DWR-510 User Manual...
-
Page 47: Configure Wpa-Psk
(lower-right corner of screen). Select View Available Wireless Networks. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DWR-510 User Manual... - Page 48 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless router. D-Link DWR-510 User Manual...
-
Page 49: Troubleshooting
1. Why can’t I access the web-based configuration utility? When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility. - Page 50 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your the web management.
-
Page 51: Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers. -
Page 52: What Is Wireless
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network. How does wireless work? Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. - Page 53 PDAs, headphones, laptops, speakers, and other devices that operate on batteries. Who uses wireless? Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it. Home •...
-
Page 54: Tips
The wireless connection in public places is usually called “hotspots”. Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers. -
Page 55: Wireless Modes
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point. An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate. D-Link DWR-510 User Manual... -
Page 56: Networking Basics
Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below. -
Page 57: Statically Assign An Ip Address
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from your ISP. Step 5 Click OK twice to save your settings. D-Link DWR-510 User Manual... -
Page 58: Warnings And Declarations
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. D-Link DWR-510 User Manual... - Page 59 Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: KA2WR530A1. This device is compliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. D-Link DWR-510 User Manual...
- Page 60 2400-2454 MHz frequency band (channels 1-9) may be used. For the latest requirements, see http://www. art-telecom.fr. Wireless LAN Module’s Maximum EIRP Frequency Ranges (MHz) Indoors Outdoors 2400 MHz ~ 2446.5 MHz 10mW Not Permitted 2446.5 MHz ~ 2483.5 MHz 100mW 100mW on private property with Ministry of Defense approval. D-Link DWR-510 User Manual...
- Page 61 -Users have to use the connection to USB interfaces with USB 2.0 version or higher. -Risk of explosion if battery is replaced by an incorrect type. -Dispose of used batteries according to the instructions. -Please make sure the temperature for adapter will not be higher than 55 ˚C D-Link DWR-510 User Manual...
-
Page 62: Technical Specifications
** Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. D-Link DWR-510 User Manual...
