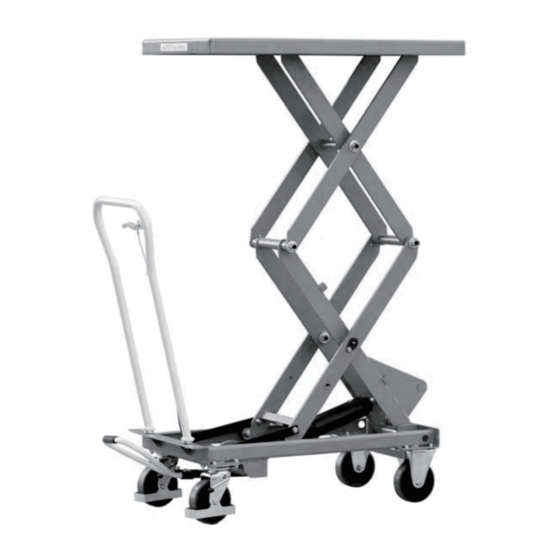

Hand Table Truck
Operating Instructions
TAD Series
BEFORE YOU BEGIN
Thank you for using our
lift table
. Our
lift table
is made of high quality steel. For your safety and correct
operation, please carefully read this instruction before using it.
Hand Table Truck TAD Series
TAD35, TAD80
Hand Table Truck
TAD Series
Eoslift Automation Technology Corp.
No.99, Yanjia Road, Yuantong Town, Haiyan, Zhejiang
Advertisement
Table of Contents
Related Manuals for Eoslift TAD Series
Summary of Contents for Eoslift TAD Series
- Page 1 . Our lift table is made of high quality steel. For your safety and correct operation, please carefully read this instruction before using it. Hand Table Truck TAD Series TAD35, TAD80 Hand Table Truck TAD Series Eoslift Automation Technology Corp.
- Page 2 CONTENTS 1.Warnings 1.DO NOT put foot or hand in scissors mechanism. 8.DO NOT use lift table on slop or inclined 1 Warnings Page 1 surface, lift table may become uncontrollable and 2.DO NOT allow other person to stand in front of or create danger.
- Page 3 4.Daily Inspection 5-2. lifting the table Daily inspection is effective to find the malfunction or fault on lift table.Check lift table on the following points before operation. WARNINGS CAUTION 1. DO NOT overload lift table. Stay within its rated capacity. 2.
- Page 4 6.Structural Data Form 8.Hydraulic Circuit Mode Capacity Table Table Stroke L X W X H Pedaling Wheel Weight (kg) (mm) Height (mm) to top Φ (mm) (mm) (approx. (kg) times) TAD35 520X1010 435-1585 1150 1130X520X1260 TAD80 520X1010 470-1410 1130X520X1275 7.Maintenance 7-1.
- Page 5 9 Parts List LIFT TABLE SPARE PARTS LIST：TAD35 TAD35 NO . DESCRIPTION DESCRIPTION Control link Seal cover d30*D42*7 Handle Cylinder cover Spacing casing O-ring d63*2.65 Spring washer 12 O-ring d30*3.55 Hex screw M12*40 Piston Rod Sprit pin Spacing casing Guiding $1.5*15 U-fork O-ring D20*2.4 Nut M6...
- Page 6 O-ring d15*2.65 Retaining ring for axle 20 Lever bushing Pin axle Regulating speed spring Chassis Washer 6 Bolt M6*8 Regulating slide-valve Hex socket screw Bolt M8*16 Spring washer 6 Regulating speed spring-casing Hex sock screw M6*16 Pin axle A Pump a ssembly 1~49 Regulating speed slide-casing Bushing Tube for steel...
- Page 7 TAD80 LIFT TABLE SPARE PARTS LIST：TAD80 / TAD80 DESCRIPTION DESCRIPTION Seal cover d500*D58*5 Tube for steel wire Y-ring d50*D58*8.2 Steel wire Cylinder cover Spring pin O-ring d56*2.65 Spring pin Piston Rod Control link Bushing Handle Bushing Spacing casing Pin axle Spring washing 12 Snap Ring 50 Hex screw M12*40...
- Page 8 Check valve casing Wheel Hex socket set screw M8*12 Bushing Oil cup O-ring d6.9*1.8 Chassis Discharge lever Steel ball Spring washer 8 Bushing Spring seat assembly Plug Hex socket screw bolt M8*16 Regulating pressure spring O-ring d10*2.65 Table Regulating pressure nut A Pump a ssembly 1~49 B Swivel wheel assembly 78 Regulating speed valve casing...
