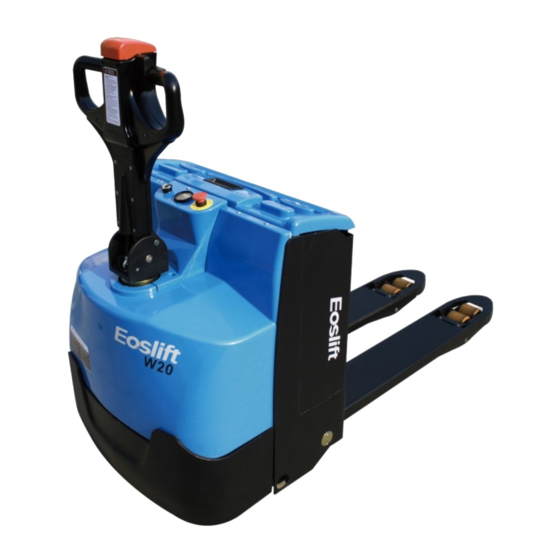

Electric Pallet Truck
Operating Instructions
W20 Series
BEFORE YOU BEGIN
Welcome to use the electric pallet truck. For your safety and correct operation, please carefully read this
instruction book and warnings on the truck before using it.This Operation Instruction of the truck is edited for
you to completely acquire and master the safety operation of the truck.
The majority of this truck consists of steel, it can be completely recycled. Waste material in conjunction with
repairs, maintenance, cleaning or scrapping, must be collected and disposed of in an environment-friendly way
and in accordance with the directives of respective countries. Such work must be carried out in areas intended
for this purpose. Recyclable material should be taken care of by specialized authorities. Environmentally
hazardous waste, such as oil filters, batteries and electronics, will have a negative effect on the environment, or
health, if handled incorrectly.
All of the information reported herein is based on data available at the moment of printing. Our products are
constantly being developed and renewed, we reserves the right to modify our own products at any moment
without prior notice and incurring in any sanction. So, it is suggested to always verify possible updates.
Electric Pallet Truck
W20 Series
Eoslift Warehousing Equipment Co., Ltd.
No.99, Yanjia Road, Yuantong Town, Haiyan, Zhejiang

Advertisement

loading
Need help?

Need help?

Do you have a question about the W20 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eoslift W20 Series

  • Page 1 So, it is suggested to always verify possible updates. Electric Pallet Truck W20 Series Eoslift Warehousing Equipment Co., Ltd. No.99, Yanjia Road, Yuantong Town, Haiyan, Zhejiang...
  • Page 2 1.Safety Operation Regulation 1.1 Requirement on operator The truck must be operated by trained person, who can demonstrate the moving and operating of the truck to 1. AFETY OPERATION REGULATION page 2 user and can instruct vividly the user how to operate the truck. During operation, the operator must be responsible for the truck and prevent unauthorized person in driving or operating the truck.
  • Page 3 1.9 No unbalanced load or overload 1.16 Parking An unbalanced load will lead to the goods fall off the ground or more severely the truck will turn over. The truck should always be parked on a level surface, engaged with a parking brake. The forks must be lowered to their lowest position, so that no one may accidentally trip over them.
  • Page 4 Operation Instructions 3.4 Horn 3.1Power on & off 3.1.1Turn on the truck by turning the key to right—power on. 3.1.2Turn on the truck by turning the key to left—power off. 3.1.3Always turn off the truck when leaving the truck. Horn Button 3.5 Steering Control steering by moving the control handle from side to side.
  • Page 5 3.11 Steering motor control fault codes 3.9 Battery indicator Discharging status of battery is indicated on battery capacity meter with ten indicator bars for each 10% increase. On the bottom, the machine's working hour can be displayed. If the battery capacity meter indicates capacity insufficient soon after lifting system works, the lifting function will be resumed only after recharging the battery to at least 70% of the capacity.
  • Page 6: Technical Specification

    the hoisting position). When the truck is lifted, necessary measures should be taken to avoid slip and 4.Technical specification turnover of the truck (wedge block or wood block can be applied). The truck can be lifted by hoisting equipment only when the forks are fixed and connecting cable with enough strength is applied. Cleaning operation: Flammable fluid is strictly forbidden in cleaning of the truck.
  • Page 7 5.4 Maintenance List PROGRANNER FAULT 1. Field winding connection open Check wiring and POSSIBLE CAUSE FAULT CLEARANCE FIELD OPEN CODE LCD DISPLAY CATEGORY 2. Field winding open cycle KSI NO KNOWN FAULTS 1. Main contactor coil open Check wiring and MISSING 2.
  • Page 8 Maintenance level 1 Maintenance level 2 Maintenance level 3 Medium term of overhaul Large-scale over haul Check for oil Symbol Name lesks Symbol Name looseness collapse deformation and damage Maintenance level 1 Maintenance level 1 Maintenance level 2 Maintenance level 2 Maintenance level 3 Maintenance...
  • Page 9 Unable to move forward Unable to move backward Maintenance level 1 Maintenance level 2 Maintenance level 3 Large- scale over haul...
  • Page 10 Unable to lift Unable to lower...
  • Page 11 Trouble showing code of controller Trouble showing code of controller...
  • Page 12: Parts List

    Parts List Fig.1 Steering control system ITEM# DENAME PAGE 1500500001 Fig.1 Steering control system Fig.2 Handle assembly Fig.3 Switch box assembly Fig.4 Switch box assembly Lubricated bush Fig.5 Stepped switch assembly Pin shaft Fig.6 Driving system Sping pin Fig.7 Gear box assembly Rubber washer Fig.8 Driving system...
  • Page 13 Fig.2 Handle assembly Fig.3 Switch box assembly Handle assembly 1500500001 5300500002 Switch box assembly Switch box assembly 5300500002 5300518003 Emergency reverser button cover Screw 2000442001 2000519004 Spring Handle tube 4300501004 5300500001 Cover assembly Pneumatic spring seat 6000502002 4300500004 Stepped switch assembly Joint 2000525010 2000507002...
  • Page 14 Fig.4 Switch box assembly Fig.5 Stepped switch assembly 4300500007 Cover assembly 4300500004 Stepped switch assembly 4300508002 Cover 2000538005 Screw 4300508003 Button cover 2000507003 Inching switch 4300540003 Rubber contact 2000535001 Isolate block 4300519001 Spring 2001141005 Screw 4300541001 Screw 4300518003 Fastening bracket 2000507002 Inching switch 1000504001...
  • Page 15 Fig.6 Driving system Fig.7 Gear box assembly 7800300001 Electromotor 2000130002 Screw 1000131001 Screw 7800321001 Gear 2001037001 Washer 2000125001 7800300002 Electromotor 2000121006 Gear 5501221004 Gear 2000120003 Bearing 7800337001 Washer 2000141001 Screw 7800330002 Screw 2000625001 Bolt 1500318001 Flange 2000603010 Washer 0300320001 Axletree 2000111002 Side cover 7800300003...
  • Page 16 Fig.8 Driving system Fig.9 Drive motor 0301000001 Brake assembly 0301415001 Tie-in 2001021001 Spline 0301408001 Plastic mantle 2001427001 Snap ring 4300900002 Screw 4301412002 Sleeve 0301411001 Cover 2000628005 0-ring 2001420001 Bearing 2001021001 Flat key 2001427002 Snapring 0301400001 Moto r 0301412001 Spring 0301431001 Screw 0301400002 Rotor...
  • Page 17 Fig.10 Hydraulic system Fig.11 Cylinder assembly 8700615004 Joint 4700613001 Pistonrid 6000637001 O-ring 2800605002 Dustring 4000600007 Hydraulic power unit 4700612001 Supporting tach 1500617001 Washer 2800605001 Seal washer 1500615001 Joint...
  • Page 18 Fig.12 Hydraulic power unit Fig.13Valve assembly 1001400001 Hydraulic motor 2000612004 Connecting bearing sleeve 4000600006 Valve assembly 1000628001 O-ring 1000600007 Oil pump 2000631003 Screw 2000631001 Screw 1000626001 Oil tank 1000609001 Washer 1000741001 Screw 1000635002 Joint 1000605005 Oil plug 1000605006 Cover...
  • Page 19 Fig.13 Valve assembly Fig.14 Oil pump 2000630001 Bolt 2000628001 O-ring 2000637001 Washer 2000605006 Seal washer 2000625003 Bolt 2000628002 O-ring 2000628014 O-ring 4000611001 Oil out cover 2000619004 Spring 2000628016 O-ring 2000614008 Core of slide valve 2000628017 O-ring 4000603010 Valve body 2000605002 O-ring protection washer 2000619001 Spring...
  • Page 20 Fig.16 Banlance wheel assembly Fig.15 Frame 4300327001 1500724001 Frame 7300712002 1500724002 Bracket 7300320001 Bearing 7300300001 Balance wheel assembly 7300218001 Wheel seat 1500400001 Electric panel assembly 1001031003 Screw 7301218001 Wheel bracket 1000339001 2000737003 Circlip 2000305001 Dust ring 2300312001 Bush 1000320002 Bearing 4000312002 Wheel sleeve 2700332001...
  • Page 21 Fig.17 Electric panel assembly Fig.18 Fork frame 1500400001 Electric appliance assembly 1501324001 Frame 1500418001 0300902001 Install plate 4000400024 Circuit board 0300902002 Compound bearing 4000412001 0300913001 Washer 2001141005 Screw 4701313001 Shaft 1500400002 4000813002 Shaft Controller 2001427001 Washer 4701322001 1000441005 4000813003 Screw 7800400002 Controller 4000218002...
  • Page 22: Battery Assembly

    Fig.20 Battery assembly Fig.19 Electric panel assembly 2001100022 Charger(220V USA criterion) 1000407006 Emergency stop button 2001100023 Charger(220V Australia criterion) 2001116002 Battery indictor(No calculagraph) 2001100024 Charger(220V Eng criterion) 2000507008 2001100021 Charger(220V Europe criterion) 1500908001 Veil 2001100026 Charger(110V USA criterion) 1500908002 Veil 2001100027 Charger(110V Australia criterion) 4300934001...
