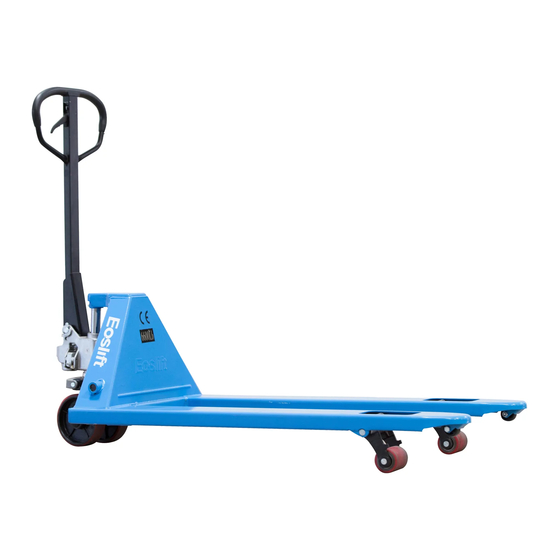

- Page 1 M25/30 Operating Instructions Manual Pallet Truck Tel: +86 573 8622 9999 Fax: +86 573 8622 2900 info@eoslift.com 400-626-9090 Hotline:...
- Page 2 M25 / 30 Series Manual Pallet Trucks Esteemed users: For proper and safe operation of the products, before using the products, be sure to read the operating instructions carefully and retain them properly for future reference. The operator needs to have proficient operation skills.
-
Page 3: Table Of Contents
M25 / 30 Series Manual Pallet Trucks Table of contents Ⅰ．Technical parameters Ⅱ. Safety rules Ⅲ．Installation of handles Ⅳ．Adjusting the finger grip handle Ⅴ．Maintenance Ⅵ．Transport, loading, test run and storage Ⅶ．Troubleshooting Ⅷ．Parts list... -
Page 4: Ⅰ．technical Parameters
M25 / 30 Series Manual Pallet Trucks Technical parameters Safety rules The truck is only applicable to indoor use and the application environment must meet the following conditions: Free from rainwater or corrosion of harmful gases; Model M25/M30 Room temperature of -20°C~+40°C;... -
Page 5: Ⅲ．installation Of Handles
M25 / 30 Series Manual Pallet Trucks Installation of handles Adjusting the finger grip handle On the handle of this pallet truck, you can find finger grip control handle(1-1) which can be regulated in three positions : Upper Middle Lower 1.Make sure the chain on the handle... -
Page 6: Ⅵ．transport, Loading, Test Run And Storage
M25 / 30 Series Manual Pallet Trucks Maintenance Transport, loading, test run and storage 1 The truck should be parked with the forks lowered to the min. height. 2 Check if the signs and warning labels on the truck are in place before using the truck each time. - Page 7 M25 / 30 Series Manual Pallet Trucks Troubleshooting This chapter enables the user to identify and rectifies basic faults and the effects of incorrect operation. When trying to locate a fault, proceed in the order shown in the table below. If, after carrying out the following remedial action listed in “actions”, the truck cannot be restored to operation, contact the...
- Page 8 M25 / 30 Series Manual Pallet Trucks Parts list · Frame Description Qty. Description Qty. Parts number Parts number Iron-core PU wheel φ200×50, WC02000001 Frame(2.5t,540×1150-85）,5012 WC02000177 bright red PU, black iron core Nylon wheel φ200 × 50, WC02000083 Frame(3.0t,540×1150-85）,5012 WC02000485...
- Page 9 M25 / 30 Series Manual Pallet Trucks Parts list · Frame Parts list · Handle Description Qty. Description Qty. Parts number Parts number GB5780,Hexagon head bolt M10×65,galvanized WE01000001 WJ10800014 Handle welded GB889.1,Hexagon locking nut M10,galvanized WJ10800015 Clamping roller WE04000002 GB6173,Hexagon thin nut M20×1.5,galvanized...
- Page 10 M25 / 30 Series Manual Pallet Trucks Parts list · Handle Parts list · Cylinder Description Qty. Parts number Valve body welded(75), galvanized WC02000157 WC02000033 Valve body welded(85), galvanized WC02000060 GB982, Combination sealing gasket 10 Screw WC02000036 WC02000061 Seal ring UHS35 WC02000059 GB3452.1,O-ringφ34.5×3.55...
- Page 11 M25 / 30 Series Manual Pallet Trucks Parts list · Cylinder Parts list · Integrated valve Description Qty. Parts number WC02000051 Push pin sleeve WC02000065 GB3452.1,O-ringφ15.2×2.4 WC02000067 GB3452.1,O-ringφ8×1.8 WC02000053 Return valve sleeve WC02000066 GB3452.1,O-ringφ9.5×1.8 WC02000050 Stem WC02000052 Unloading spring WC02000054 O-ring retainer Ⅱ...
- Page 12 M25 / 30 Series Manual Pallet Trucks Parts list · Integrated valve...
