Summary of Contents for Eoslift H10

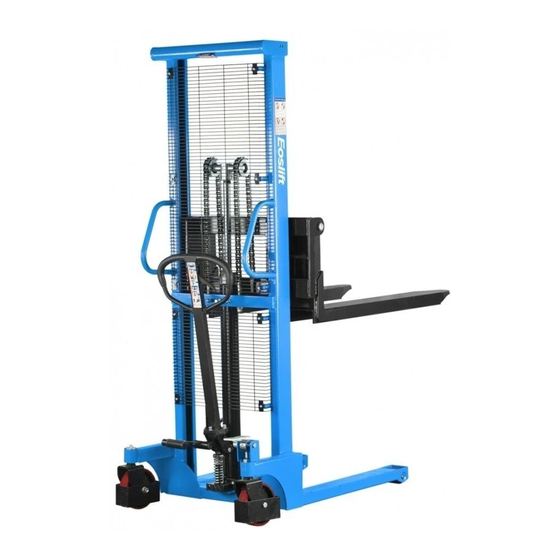

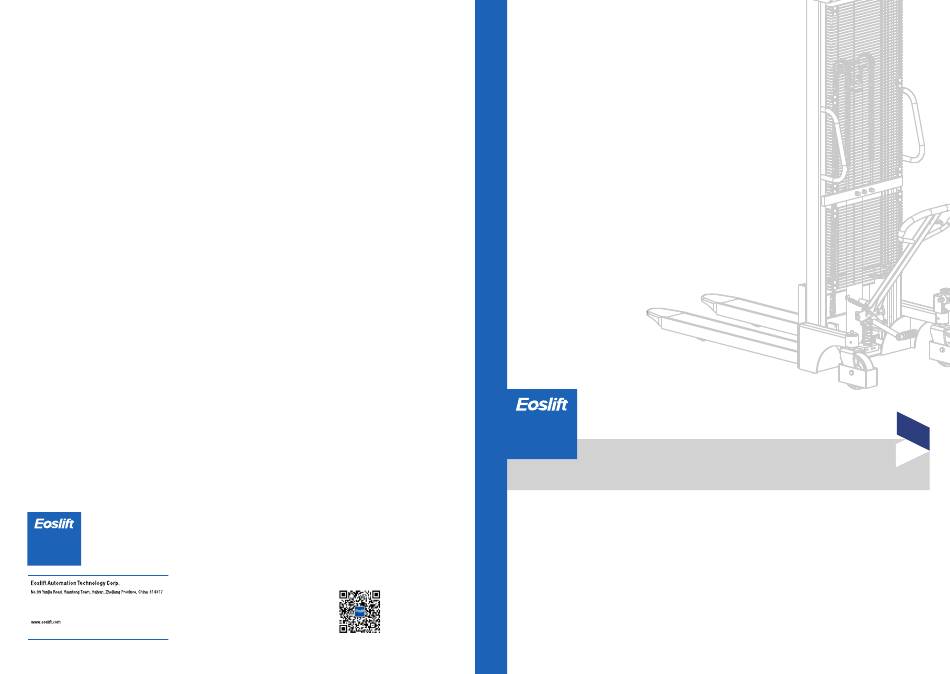

  • Page 1 H10/15/20 Manual Operating Instructions Pallet Stacker Tel: +86 573 8622 9999 Fax: +86 573 8622 2900 info@eoslift.com 400-626-9090 Hotline:...
  • Page 2 H10/15/20 Series Manual Pallet Stackers Esteemed users: For proper and safe operation of the products, before using the products, be sure to read the operating instructions carefully and retain them properly for future reference. The operator needs to have proficient operation skills.
  • Page 3 H10/15/20 Series Manual Pallet Stackers Table of contents Ⅰ.Technical parameters Ⅱ. Safe operating rules Ⅲ.Maintenance Ⅳ.Adjusting the finger grip handle Ⅴ.Transport, loading, test run and storage Ⅵ.Troubleshooting Ⅶ.Parts list...
  • Page 4: Technical Parameters

    H10/15/20 Series Manual Pallet Stackers Technical parameters Safe operating rules 1. Requirements for operator Model The stacker must be operated by persons trained in operation. The operator shall be able to carry out operation demonstration of moving and controlling goods for users, and he or she is responsible for the...
  • Page 5: Maintenance

    H10/15/20 Series Manual Pallet Stackers Safe operating rules Maintenance 7. Stable operation No modifications or alterations to the parts of the stacker, especially the safety device shall be made Travel of stacker shall be stable, avoiding sharp turns and sudden start.
  • Page 6 H10/15/20 Series Manual Pallet Stackers Adjusting finger grip control handle Transport, loading, test run and storage On the handle of this stacker, you can find finger grip control handle (3-1) which can be regulated in three positions : Lowering Middle position...
  • Page 7: Troubleshooting

    H10/15/20 Series Manual Pallet Stackers Troubleshooting This chapter enables the user to identify and rectifies basic faults and the effects of incorrect operation. When trying to locate a fault, proceed in the order shown in the table below. If, after carrying out the following remedial action listed in“actions”, the stacker cannot be restored to...
  • Page 8 H10/15/20 Series Manual Pallet Stackers Parts list· Guide wheel,with brake Description Qty. Parts number GB276,Deep groove ball bearing 6205, WC02000224 two-side shielded WC02000343 Washer GB6173,Hexagon thin nut M22×1.5, WE04000019 galvanized WC02000019 JB7940.4, Push-fit type grease nipple 6 WC02000345 Pedal, galvanized...
  • Page 9 H10/15/20 Series Manual Pallet Stackers Parts list· Guide wheel Parts list· Single frame Description Qty. Description Qty. Parts number Parts number GB276,Deep groove ball bearing 6205, WC02000337 External frame (1.0t, fixed), 5012 WC02000224 two-side shielded WC02000352 Wheel shaft cover, galvanized WC02000402 External frame (1.0t, movable), 5012...
  • Page 10 H10/15/20 Series Manual Pallet Stackers Parts list· Single frame Parts list· Movable fork assy Description Qty. Parts number WC02000403 Fork guide plate bracket(1.0t), black WC02000425 Fork guide plate bracket(1.5t), black WC02000434 Fork guide plate bracket(2.0t), black WC02000341 Iron wheel (1.0t/1.5t) WC02000231 Iron wheel (2.0t)
  • Page 11 H10/15/20 Series Manual Pallet Stackers Parts list· Pedal Description Qty. Parts number WE07000004 GB894.1,Circlip for shaft 20,blackening WC02000365 Pressure spring WC02000108 Spring cover,galvanized WC02000387 Seal ring UHS14 WC02000363 Pump core WC02000390 Small roller, galvanized WC02000391 Roller shaft, galvanized WC02000069 GB308,Steel ball S7...
  • Page 12 H10/15/20 Series Manual Pallet Stackers Parts list· Cylinder assembly(φ31.5) Description Qty. Parts number WC02000358 Cylinder body(1.0t/1.5t,1.6m),black WC02000382 GB3452.1,O-ring φ15×2.65 WE07000004 GB894.1,Circlip for shaft 20,blackening GB818,Pan head screw with cross recess WE03000023 M6×10,galvanized WC02000383 GB982, Combination sealing gasket 6 WC02000364 Guide sleeve WC02000385 GB3452.1,O-ring φ31.5×2.65...
  • Page 13 H10/15/20 Series Manual Pallet Stackers Parts list· Cylinder assembly(φ35) Description Qty. Description Qty. Parts number Parts number WC02000437 Cylinder (2.0t,1.6m),black WC02000412 Cap, galvanized WC02000414 Cylinder (2.5m), black WC02000058 Dustproof ring DH35 WC02000418 Cylinder (3.0m), black WC02000408 Piston guide ring ZS40...
  • Page 14 H10/15/20 Series Manual Pallet Stackers Parts list· Cylinder assembly(φ35) Parts list· External frame Description Qty. Parts number WC02000405 External frame (1.0t, 2.5m, fixed), 5012 WC02000420 External frame(1.0t,3.0m,movable),5012 WE04000005 GB6170,Hexagon nut M5,galvanized WE03000016 GB70.1,Hexagon socket head cap screw M5×16,galvanized WE05000004 GB95,Plain washer 5,galvanized...
  • Page 15 H10/15/20 Series Manual Pallet Stackers Parts list· External frame Parts list· Internal frame Description Qty. Parts number WC02000290 Internal frame, 5012 (2.5m) WC02000299 Internal frame, 5012 (3.0m) WE07000006 GB893.1,Circlip for hole 47,blackening GB276,Deep groove ball bearing 6204, WC02000022 two-side shielded WE07000004 GB894.1,Circlip for shaft 20,blackening...
  • Page 16 H10/15/20 Series Manual Pallet Stackers Parts list· Top beam assembly Parts list· Roller Chain Description Qty. Description Qty. Parts number Parts number WC02000354 WC02000340 Roller chain(1.6m) Top beam seat,galvanized WC02000356 Top beam shaft, galvanized WC02000287 Roller chain(2.5m) WE07000004 GB894.1,Circlip for shaft 20,blackening WC02000300 Roller chain(3.0m)
  • Page 17 H10/15/20 Series Manual Pallet Stackers Parts list· Leaf chain Parts list· Movable fork assy Description Qty. Description Qty. Parts number Parts number WC02000423 WC02000416 Fork guide plate bracket(1.0t), black Leaf chain, 58 links (1.6m) Gb77, Hexagon socket set screw with flat point...
  • Page 18 H10/15/20 Series Manual Pallet Stackers Parts list· Handle assemblies Description Qty. Parts number WJ10800036 Finger grip handle WJ10800037 positioning plate WJ10800038 torsion spring WJ10800039 plastic roller WJ10800040 handle welded WJ10800041 Connecting sheet of pull rod WJ10800042 pull rod WJ10800043 chain...
  • Page 19 H10/15/20 Series Manual Pallet Stackers Parts list· Fixed fork assy Parts list· Fixed fork assy Description Qty. Description Qty. Parts number Parts number WC02000339 WC02000289 Fixed fork (1.0t), black Fixed fork, black (1.0t) Gb77, Hexagon socket set screw with flat point WC02000422 Fixed fork (1.5t), black...

This manual is also suitable for:

H15H20
