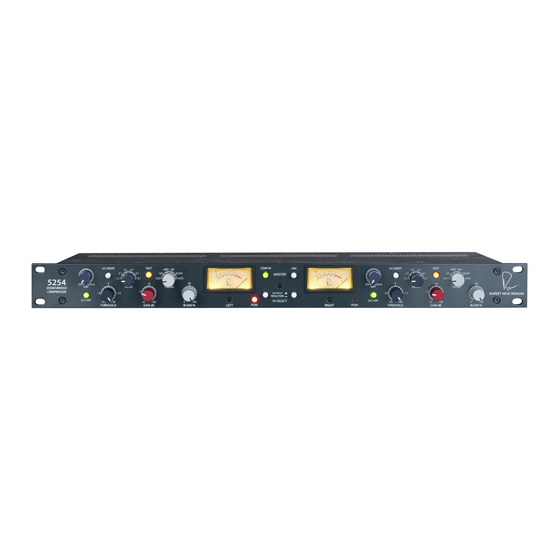

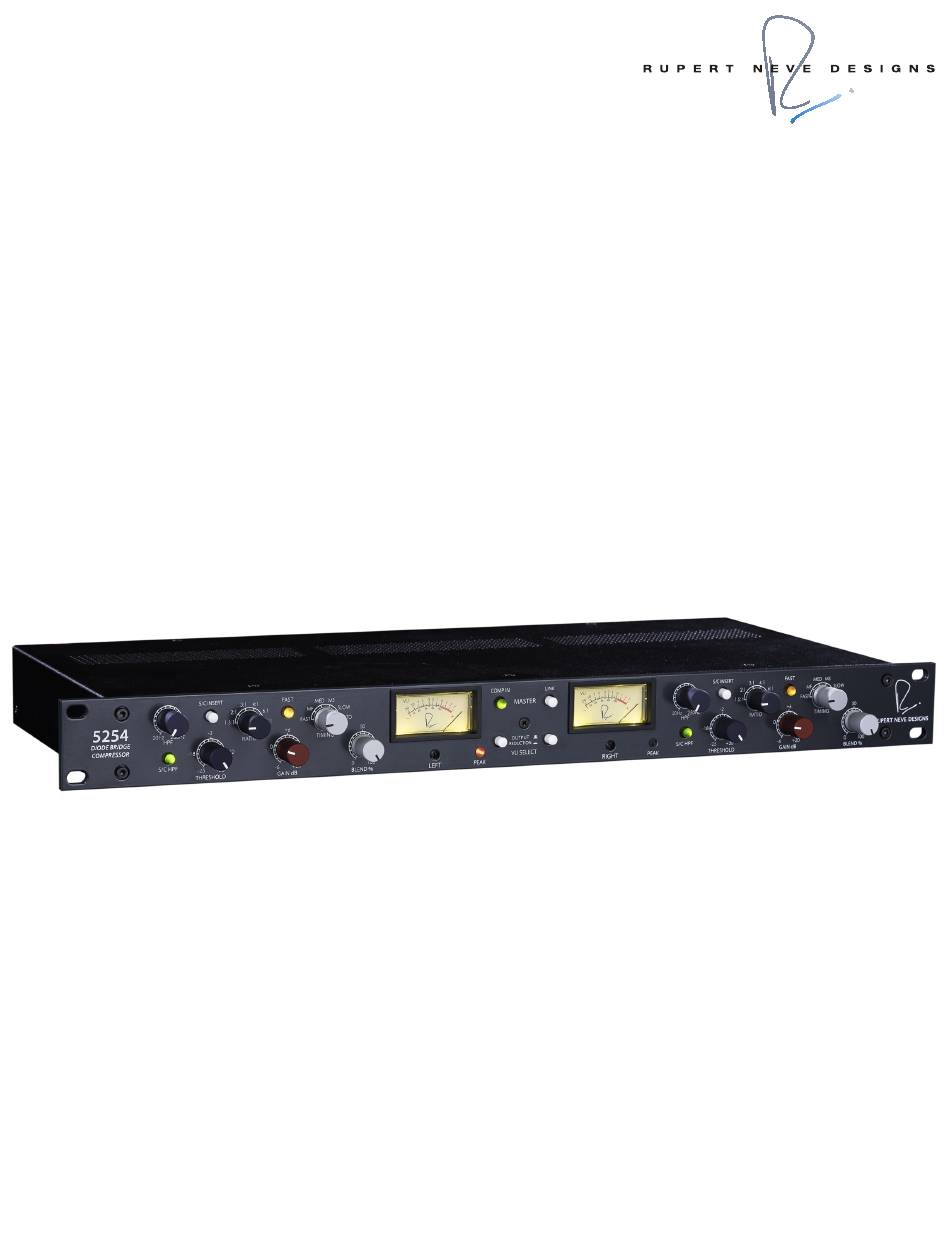

- Page 1 5254 Dual Diode Bridge Compressor Operations Manual Operations Manual...
-
Page 2: Important Safety Instructions
CAUTION: Changes or modifications to this device not expressly 11. Only use attachments/accessories specified by the manufacturer. approved by Rupert Neve Designs LLC, could void the user's authority to 12. Use only with a cart, stand, tripod, bracket, or PORTABLE CART operate the equipment under FCC rules. - Page 3 Table of Contents Introduction Block Diagram Front Panel Rear Panel 5254 Features Specifications Limited Warranty...
- Page 4 Rupert Neve Designs 5254: Dual Diode Bridge Compressor Thank you for purchasing the Rupert Neve Designs 5254 Dual Diode Bridge Compressor. We hope you enjoy using this product as much as we have enjoyed designing and building it. The 5254 features custom Rupert Neve Designs trans-...
- Page 7 5254 Front-Panel Features Threshold The THRESHOLD control is a 31-detent potentiometer that allows the user to adjust the point at which compression occurs, between -25dBu and +20dBu. Turning this control counter-clockwise will increase the amount of compression; turning it clockwise will decrease the amount of compression. If the input signal is lower than the set threshold, no compression will occur.
- Page 8 IEC standard 3-pin grounded AC power inlet with power switch. 100-240VAC 50/60Hz input range with a maximum power consumption of 45W. Line Input Neutrik XLR combo jack line input utilizing custom Rupert Neve Designs transformer-coupled, balanced inputs. Maxi- mum input signal level is +26.7 dBu at 1kHz. Line Output Neutrik XLR jack line output utilizing custom Rupert Neve Designs transformer-coupled, balanced outputs.
- Page 9 5254 Specifications XLR Line Input to XLR Line Output (Compressor Bypassed) = 40 Ω Balanced SOURCE Input Impedance 10 kΩ Output Impedance 40 Ω Maximum Input Level (+4dBu Selected) +26.7 dBu typical Maximum Output Level +26.7 dBu typical Noise (22 Hz - 22 kHz BW)
- Page 10 5254 Specifications (continued)
- Page 11 This page intentionally left blank...
-
Page 12: Product Warranty
PRODUCT WARRANTY Rupert Neve Designs warrants this product to be free from defects in materials and workmanship for a period of one (1) year from date of purchase, and agrees to remedy any defect identified within such one year period by, at our option, repairing or replacing the product.
