RNDI Specifications
Noise:
Measured Output, un-weighted, 22Hz-22kHz, source impedance 150 Ohms to 10K Ohms
Input Impedance
Instrument Setting
Speaker Setting
Output Impedance
Frequency Response
+/- 0.25db
+/- 1dB
-3dBu
Maximum Input Level
Maximum Output Level
Total Harmonic Distortion plus Noise
@ 1kHz, +20dBu input level
@ 1kHz, -20dBu input level
@ 20Hz, -20dBu input level
Power Requirements
Weight
Dimensions
PN: 775-00022

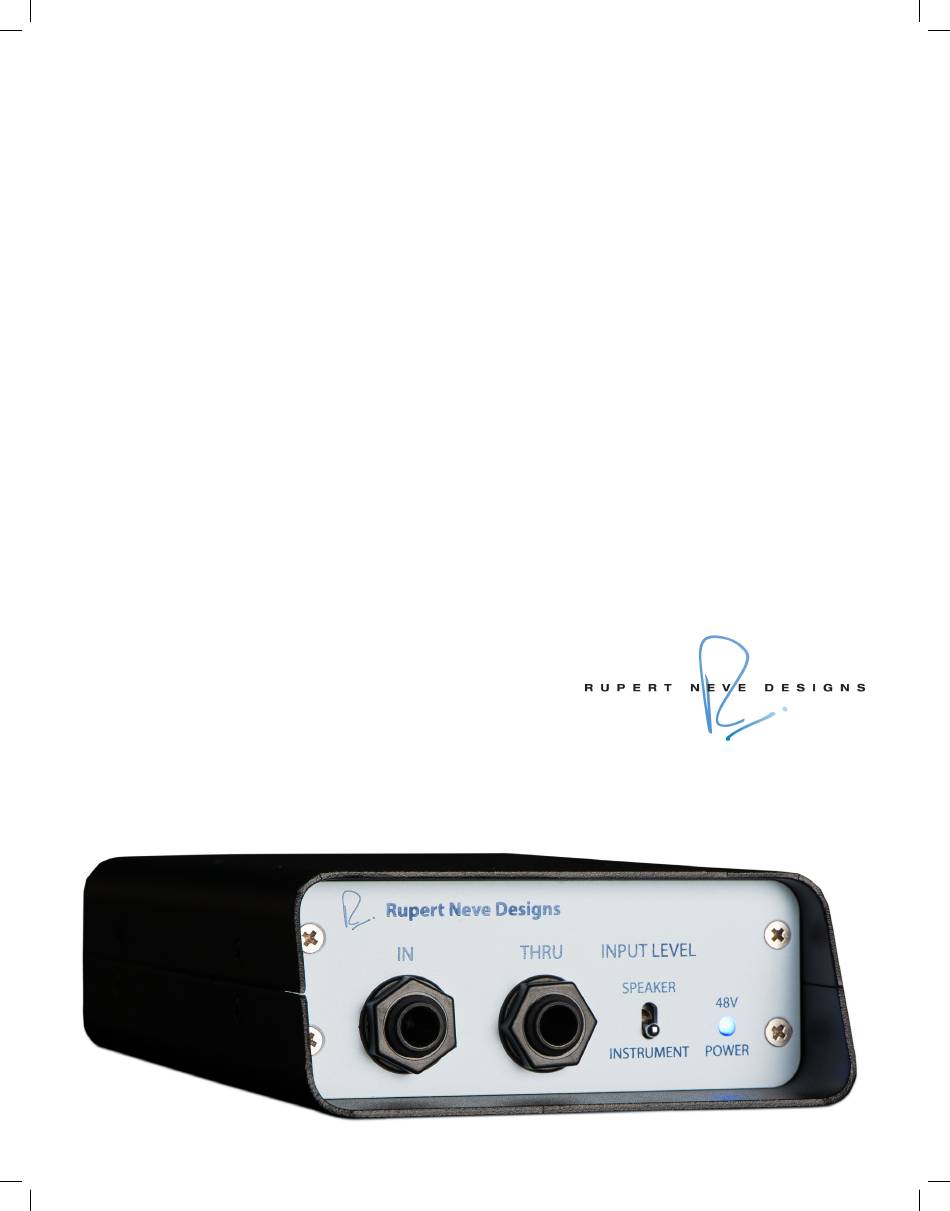

RNDI:
Active Transformer Direct Interface
User Guide
Better than -110dBV
2.2 Meg Ohm
200k Ohm
Less than 40 Ohms
25Hz – 44kHz
12.5Hz – 63kHz
92kHz
Instrument = +21dBu Typical
Speaker = +41.5dBu, 92 Vrms (266Vp-p)
+11.5dBu output at maximum input level
0.25% Typical (2nd and 3rd harmonic)
0.015% Typical (2nd and 3rd harmonic)
0.75% Typical (2nd and 3rd harmonic)
Phantom powered, 4.5mA @ +48VDC
1.5lbs
6.25" long x 4"wide x 1.5" high
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rupert Neve Designs RNDI
Summary of Contents for Rupert Neve Designs RNDI
- Page 1 RNDI Specifications Noise: Measured Output, un-weighted, 22Hz-22kHz, source impedance 150 Ohms to 10K Ohms Better than -110dBV Input Impedance Instrument Setting 2.2 Meg Ohm Speaker Setting 200k Ohm Output Impedance Less than 40 Ohms Frequency Response +/- 0.25db 25Hz – 44kHz +/- 1dB 12.5Hz –...
- Page 2 40 Ohms, which is capable of driving long lines with minimal loss. The chassis of the RNDI is a formed steel clamshell designed to hold up to the rigors of use on stage or in the studio.
