AMX MVP-WCS-52 Installation Manual

Overview

The optional MVP-WCS-52 Wall Charging Station (FG5966-1X) offers the same
recharging and connection features for the MVP-5200i Modero
Widescreen Touch Panel as the MVP-TCS-52 Table Charging Station, with the
advantage of being placed within accessible locations where the table station is
either inconvenient or impractical (FIG. 1). The Wall Charging Station is available
in either white (FG5966-13) or black (FG5966-12).

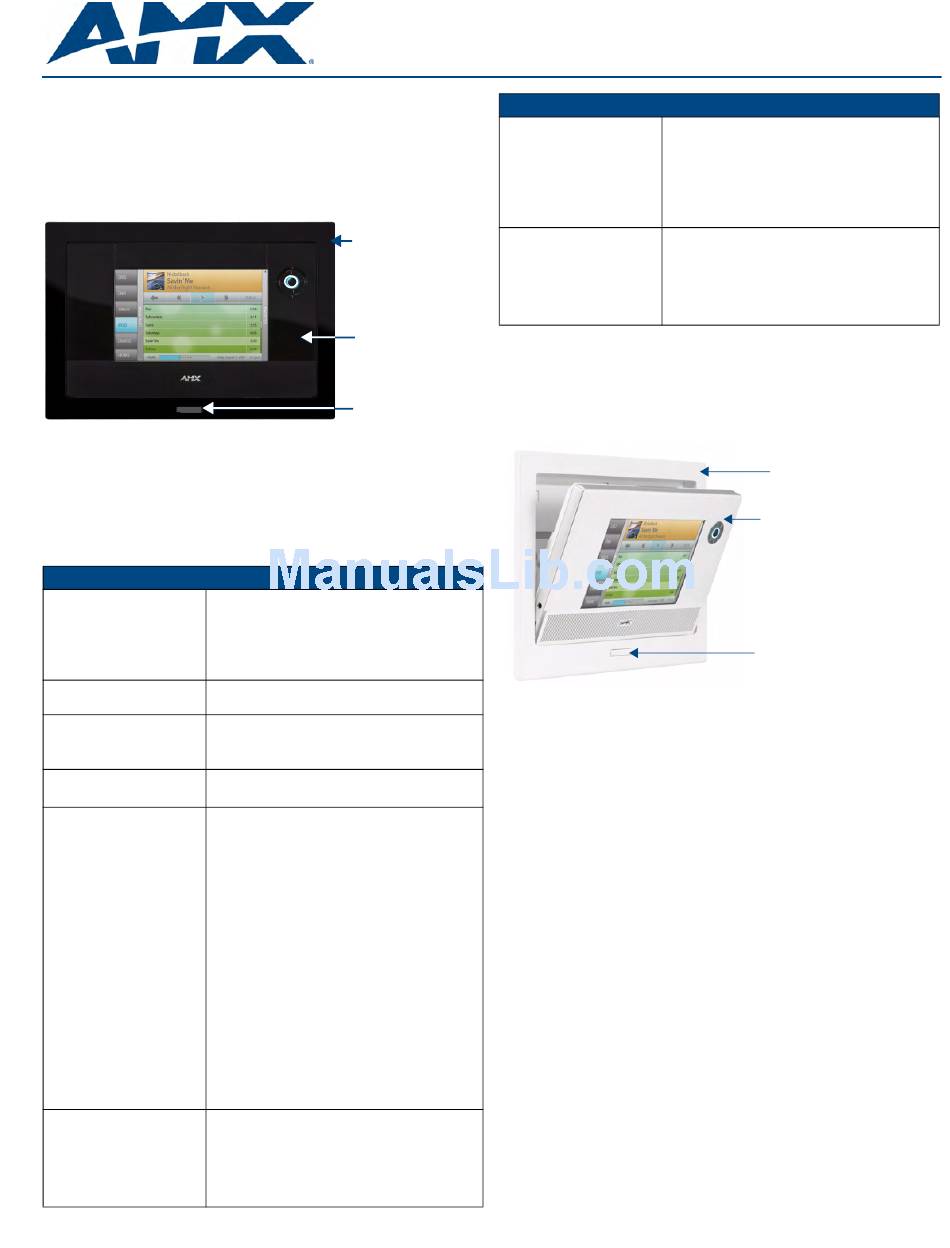

FIG. 1
MVP-WCS-52-GB Wall Charging Station - Front
The features of the MVP-WCS-52 include:
• Full charging of a docked MVP-5200i in approximately 4.5 hours
• Touch panel password feature for security
• Integrated docking alignment guides for easy docking
Specifications

MVP-WCS-52 Specifications

Dimensions (HWD): • 8.88" x 6.38" x 2.19" (22.54 cm x 16.19 cm x 5.56
Note: Always use the cutout/installation
dimensions for the MVP-WCS-52 when installing
this unit into various surfaces. This SP engineering
drawing is available online at www.amx.com.
Power Requirements: • 1.7A @ 12 VDC (Class II listed power
Startup Power Requirements: • Total: 1.7A
• Charging: 1.1A
• Ejection: 0.6A
Weight: • Without back box: 0.85 lbs (0.39 kg)
• With back box: 1.30 lbs (0.59 kg)
Front Panel Components: • Securing Magnets: Secures MVP touch panel
• Security Latch: Adds the primary layer of security
• Interface Connector Pins: A set of retractable pins
• Support Cradle: This retractable mechanism
• Security Release pushbutton: Located on the front
- Entering the correct release code allows the
MVP-WCS-52 to release the touch panel from the
security latch.
Operating/Storage • Operating Temperature: 0° C to 40° C
Environments:
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C to 60° C
• Storage Humidity: 5% - 85% RH
®
Viewpoint
MVP-WCS-52
MVP-5200i-GB
Security Release
button
cm)
supplemented)
during ejection.
when mounting an MVP touch panel. When the
device is inserted, this latch grabs onto the rear of
the touch panel and secures it to prevent it from
inadvertently being removed.
(male) that connect to the underside MVP
connector strip. This connection provides both
communication and power between the touch
panel and the MVP-WCS-52.
supports a resting MVP panel and allows a user to
either insert or remove a connected MVP panel.
of the unit, this pushbutton toggles an on-screen
security keypad if security is enabled.
(32° F to104° F)
(-4° F to140° F)
MVP-WCS-52
MVP-WCS-52 Specifications (Cont.)

Included Accessories

®

Other AMX Equipment:

The MVP-5200i touch panel remains locked in the MVP-WCS-52 until unlocked
by the user. This may be done by entering an appropriate password (please refer
to the MVP-5200i User Manual, available from www.amx.com, for more
information), or by pressing the Security Release button on the front of the
device in emergencies. The station ejects the MVP-5200i device top first
(FIG. 2). The device uses two neodymium rare-earth magnets to secure the
MVP-5200i to the cradle when the touch panel is angled forward.
FIG. 2
MVP-WCS-52-GW Wall Charging Station - Side View

Unlocking the Touch Panel

Once placed within the Wall Charging Station, the MVP-5200i remains secured
until the user unlocks it. To release the touch panel from the Wall Charging
Station:
1. Press the Security Release button.
2. A password keypad will pop up on the MVP-5200i screen. Enter a
password in the password keypad and press Enter.
3. Wait for the Wall Charging Station to pivot the touch panel away from the
wall.
4. The device will remain in the ejected position until the MVP-5200i is
removed. Wait until the device's ejection door has completely withdrawn
before re-installing the MVP-5200i.

Recharging

To recharge the MVP-5200i:
1. Slide the device into the Wall Charging Station cradle bottom-first and
make sure the device is fully seated in the Charging Station.
2. Press the top of the MVP-5200i back until it clicks. The touch panel is now
locked into the Charging Station, and the station will automatically charge
the device's battery.
3. To release the touch panel, press the Security Release button, enter the
password (if activated), and wait for the Wall Charging Station to pivot the
touch panel away from the wall.
Installation Guide
Wall Charging Station
• MVP-WCS-52 Wall Charging Station Quick Start
Guide (93-5966-12)
• Wallmount Plastic Back Box (EMA5966-13)
• MVP-WCS-52 Installation Kit - Black
(KA5966-01bl)
• MVP-WCS-52 Installation Kit - White
(KA 5966-01wh)
• MVP-TCS-52 Table Charging Station (FG5966-1X)
• Wallmount Metal Conduit Box (62-5966-12)
• MVP-5200i Modero Viewpoint Widescreen Touch
Panel - Gloss Black (FG5966-01)
• MVP-5200i Modero Viewpoint Widescreen Touch
Panel - Gloss White (FG5966-02)
Wall Charging Station
MVP-5200i
Security Release button
