Summary of Contents for AMX Table Docking Station MVP-TDS
Page 1

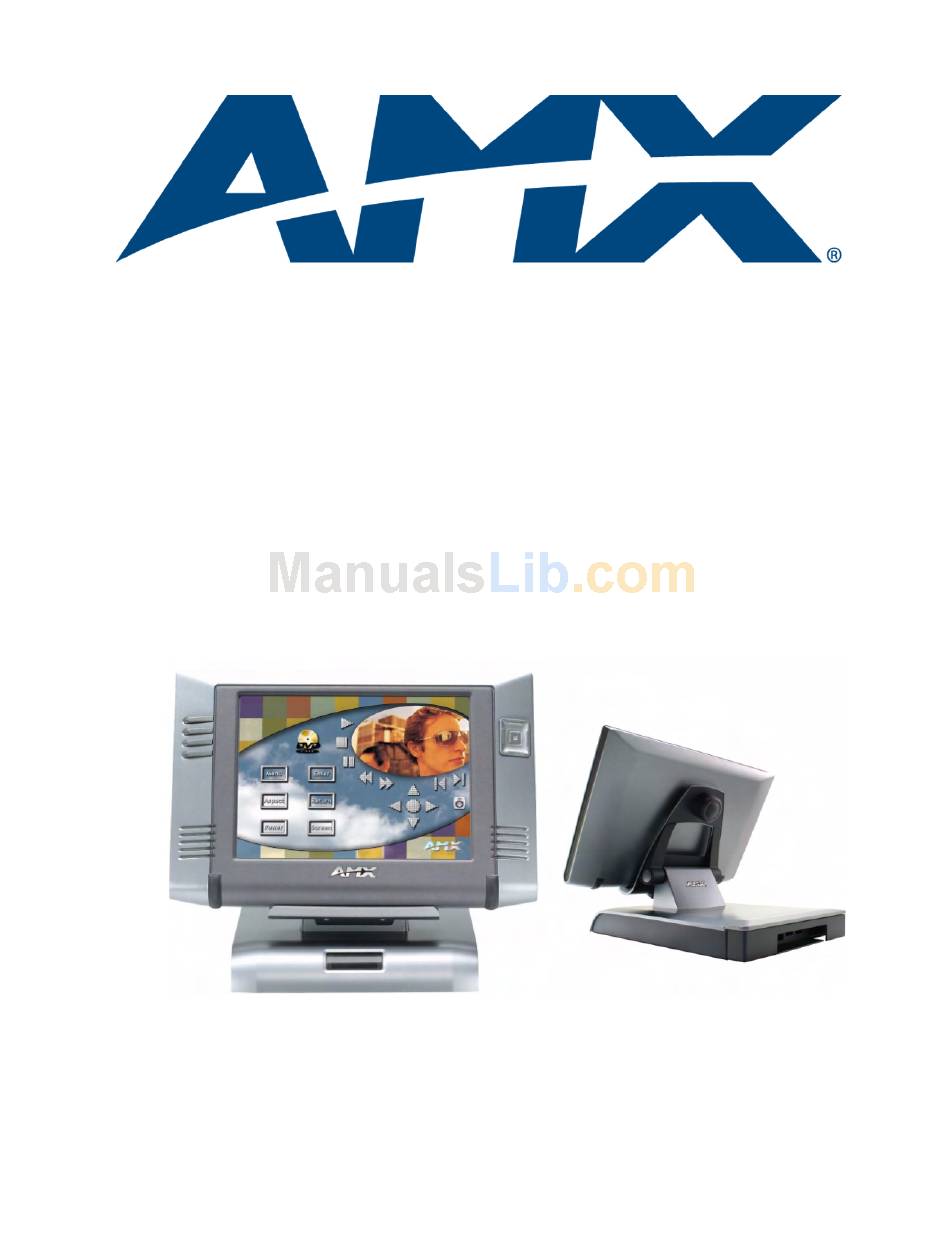

Operation/Reference Guide MVP-TDS Table Docking Station ® ® for MVP-7500/8400 Modero ViewPoint Wireless Touch Panels T o u c h P a n e l s & A c c e s s o r i e s L a s t R e v i s e d : 5 / 1 9 / 2 0 0 9...
Page 2
RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.
FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of...
Table of Contents MVP-TDS Table Top Docking Station ...1 Overview ... 1 Specifications ... 1 MVP-TDS docking station connectors ... 2 MVP-TDS LED Indicators ... 3 Installation ... 3 Interface Connector Pins and Functions ... 3 Connecting a Power Supply... 3 Powering the MVP-TDS...
Page 6
Table of Contents MVP-TDS Table Docking Station for MVP Panels...
MVP-TDS Table Top Docking Station Overview The MVP-TDS Table Top Docking Station (FG5965-10) extends the functionality of the MVP panels when resting on a flat surface. The MVP-TDS recharges the panel’s batteries while maintaining continuous control of integrated technology (FIG. 1). The MVP-TDS utilizes an locking mechanism that allows you to adjust the vertical viewing angle, and uses an electromagnet to secure the panel.
MVP-TDS Table Top Docking Station MVP-TDS Specifications (Cont.) Power Requirements: Weight: Charging Features: Front Panel Components: Rear Panel Components: Operating/Storage Environments: MVP-TDS docking station connectors FIG. 2 shows the layout of the connectors on the rear of the MVP-TDS. Battery Compartment 1 (for use with PS4.4 power supply) FIG.
MVP-TDS LED Indicators The two LED indicators indicate the battery and communication status: LED Pattern Indicators for the MVP-TDS Solid Bright Flashing Bright (Slow) Flashing Bright (Fast) Solid Dim Installation Interface Connector Pins and Functions FIG. 3 gives the pin numbering and function information for the docking stations 1 - Data - Panel Detect IN 2 - Ground 3 - not used...
MVP-TDS Table Top Docking Station Once MVP batteries are fully charged, the MVP-TDS begins charging MVP-BP batteries inserted within its rear battery compartments. Initially, both blue LEDs illuminate and remain dim (indicating that the power is being supplied to the MVP-TDS). Connecting a USB Keyboard and Mouse to the MVP-TDS The MVP-TDS can have two USB input devices (keyboard and mouse) connected for use on the MVP panel’s different firmware and TPD4 panel pages.
Securing an MVP Panel to an MVP-TDS The MVP will not be able to communicate with or receive power from the MVP-TDS without a proper connection. 1. Place the MVP-TDS on a flat and level surface. 2. Provide power to the MVP-TDS (refer to the Powering the MVP-TDS section on page 3). 3.
The MVP security feature requires the entry of a security code (password) entered via an on-screen keypad. This password is entered within the MVP’s Password Setup page. Refer to the MVP-7500/8400 Operation/Reference Guide (available online at www.amx.com) for more information on setting up a User Access username and password.
1. Raise the rear connector cover to expose the battery compartments and connectors. 2. Slide the MVP-BP into the battery compartment (AMX label up) until the connector makes contact with the battery pins at the end of the battery slot.
Page 14
MVP-TDS Table Top Docking Station MVP-TDS Table Docking Station for MVP Panels...
1. Configure the NetLinx Master for IP communication. Refer to the MVP-7500/8400 Operation/ Reference Guide (available online at www.amx.com) for information. 2. After the panel powers-up, press and hold the two lower buttons on both sides of the display for 3 seconds to continue with the setup process and proceed to the Setup page.
OnLine Tree tab of the Workspace window. The default Modero panel value is 10001. 5. Locate the latest firmware file from the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero Panels firmware (MVP Docking Stations: MVP-TDS/WDS) section of the website.
Page 17
FIG. 3 Send to NetLinx Device dialog (showing docking station firmware update via USB) Firmware upgrades can not be done directly to the docking station but must be routed through the MVP panel. 10. Click the Reboot Device checkbox. This causes the touch panel to reboot after the firmware update process is complete.
Page 18
Upgrading the Docking Station Firmware Although firmware upgrades can be done over wireless Ethernet; it is recommended that firmware KIT files be transferred over a direct USB connection and only when the panel is connected to a power supply. If battery power or wireless connection fails during a firmware upgrade, the panel flash file system may become corrupted.
Page 19
MVP-TDS Table Docking Station MVP-TDS Table Docking Station for MVP Panels...
Page 20
It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
