AMX MVP-WCS-52 Installation Manual

Overview
The optional MVP-WCS-52 Wall Charging Station (FG5966-1X) offers the same
recharging and connection features for the MVP-5200i Touch Panel as the
MVP-TCS-52 Table Charging Station, with the advantage of being placed within
accessible locations where the table station is either inconvenient or impractical
(FIG. 1).
The MVP-WCS-52 is available in white (FG5966-13) or black (FG5966-12).

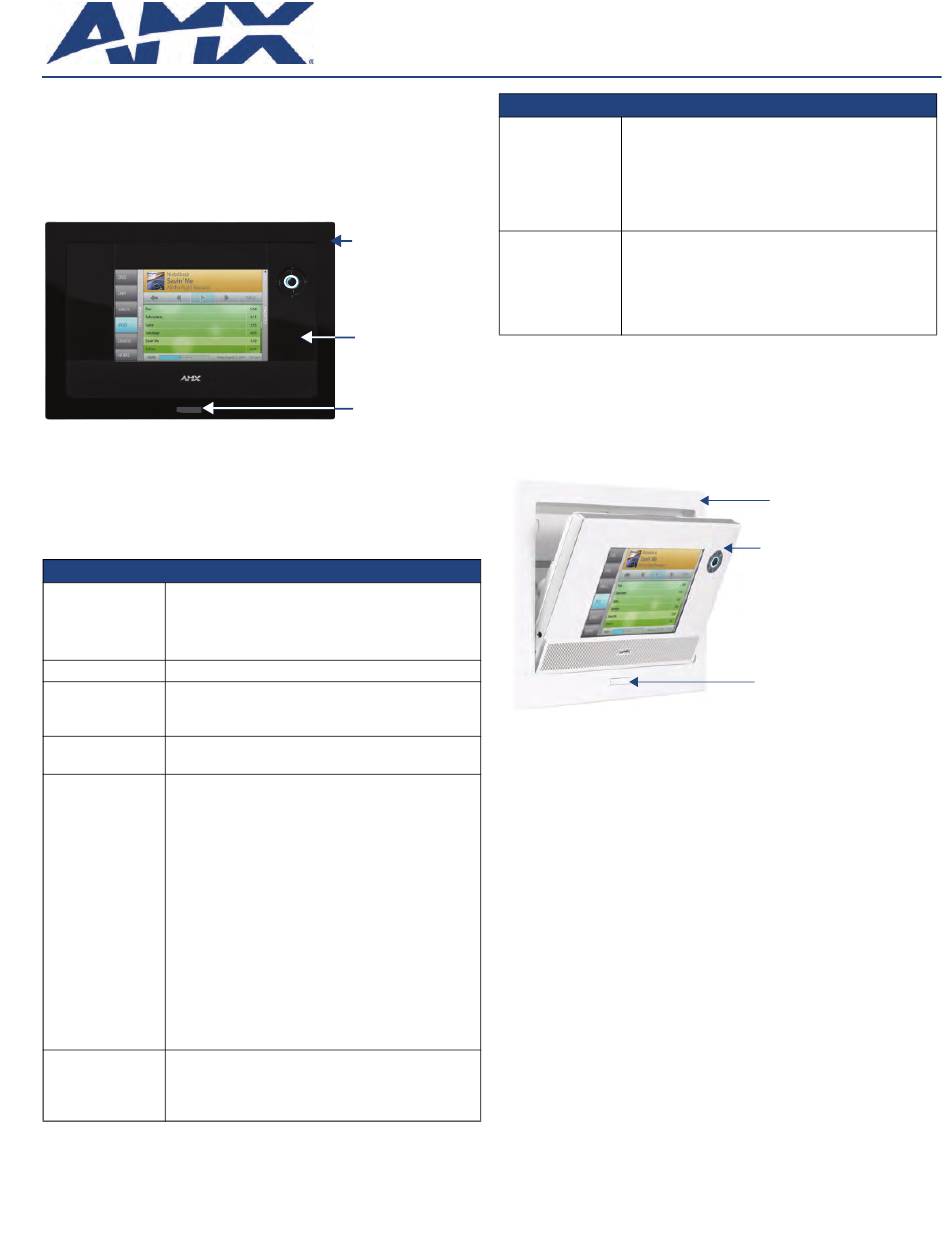

MVP-WCS-52-GB Wall Charging Station - Front
FIG. 1
The features of the MVP-WCS-52 include:
• Full charging of a docked MVP-5200i in approximately 4.5 hours
• Touch panel password feature for security
• Integrated docking alignment guides for easy docking
Specifications
MVP-WCS-52 Specifications
Dimensions (HWD): • 8.88" x 6.38" x 2.19" (22.54 cm x 16.19 cm x 5.56 cm)
Note: Always use the cutout/installation dimensions for
the MVP-WCS-52 when installing this unit into various
surfaces. This SP engineering drawing is available online
at www.amx.com.
Power Requirements: • 1.7A @ 12 VDC (Class II listed power supplemented)
Startup Power • Total: 1.7A
Requirements:
• Charging: 1.1A
• Ejection: 0.6A
Weight: • Without back box: 0.85 lbs (0.39 kg)
• With back box: 1.30 lbs (0.59 kg)
Front Panel • Securing Magnets: Secures MVP touch panel during
Components: ejection.
• Security Latch: Adds the primary layer of security when
mounting an MVP touch panel. When the device is
inserted, this latch grabs onto the rear of the touch panel
and secures it to prevent it from inadvertently being
removed.
• Interface Connector Pins: A set of retractable pins (male)
that connect to the underside MVP connector strip. This
connection provides both communication and power
between the touch panel and the MVP-WCS-52.
• Support Cradle: This retractable mechanism supports a
resting MVP panel and allows a user to either insert or
remove a connected MVP panel.
• Security Release pushbutton: Located on the front of the
unit, this pushbutton toggles an on-screen security
keypad if security is enabled.
- Entering the correct release code allows the MVP-WCS-
52 to release the touch panel from the security latch.
Operating/Storage • Operating Temperature: 0° C to 40° C (32° F to104° F)
Environments:
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C to 60° C (-4° F to140° F)
• Storage Humidity: 5% - 85% RH
MVP-WCS-52
MVP-WCS-52 Specifications (Cont.)
Included
Accessories
MVP-WCS-52 Other AMX
Equipment:
MVP-5200i-GB
The MVP-5200i touch panel remains locked in the MVP-WCS-52 until unlocked
by the user. This may be done by entering an appropriate password (please refer
to the MVP-5200i User Manual, available from www.amx.com, for more
information), or by pressing the Security Release button on the front of the
Security Release device in emergencies. The station ejects the MVP-5200i device top first
button
(FIG. 2).
The device uses two neodymium rare-earth magnets to secure the MVP-5200i to
the cradle when the touch panel is angled forward.
FIG. 2
Unlocking the Touch Panel
Once placed within the Wall Charging Station, the MVP-5200i remains secured
until the user unlocks it. To release the touch panel from the Wall Charging
Station:
1. Press the Security Release button.
2. A password keypad will pop up on the MVP-5200i screen. Enter a
password in the password keypad and press Enter.
3. Wait for the Wall Charging Station to pivot the touch panel away from the
wall.
4. The device will remain in the ejected position until the MVP-5200i is
removed. Wait until the device's ejection door has completely withdrawn
before re-installing the MVP-5200i.
Recharging
To recharge the MVP-5200i:
1. Slide the device into the Wall Charging Station cradle bottom-first and
make sure the device is fully seated in the Charging Station.
2. Press the top of the MVP-5200i back until it clicks. The touch panel is now
locked into the Charging Station, and the station will automatically charge
the device's battery.
3. To release the touch panel, press the Security Release button, enter the
password (if activated), and wait for the Wall Charging Station to pivot the
touch panel away from the wall.
Installation Guide
Wall Charging Station
• MVP-WCS-52 Wall Charging Station Quick Start Guide
(93-5966-12)
• Wallmount Plastic Back Box (EMA5966-13)
• MVP-WCS-52 Installation Kit - Black (KA5966-01bl)
• MVP-WCS-52 Installation Kit - White (KA 5966-01wh)
• MVP-WCS-52 Wall Charging Station Template
(68-5966-01)
• MVP-TCS-52 Table Charging Station (FG5966-1X)
• Wallmount Metal Rough-In Box (62-5966-12)
• PSN4.4 (FG423-45)
• PSN6.5 (FG423-41)
• MVP-5200i - Gloss Black (FG5966-01)
• MVP-5200i - Gloss White (FG5966-02)
MVP-WCS-52-GW Wall Charging Station - Side View
Wall Charging Station
MVP-5200i
Security Release button
