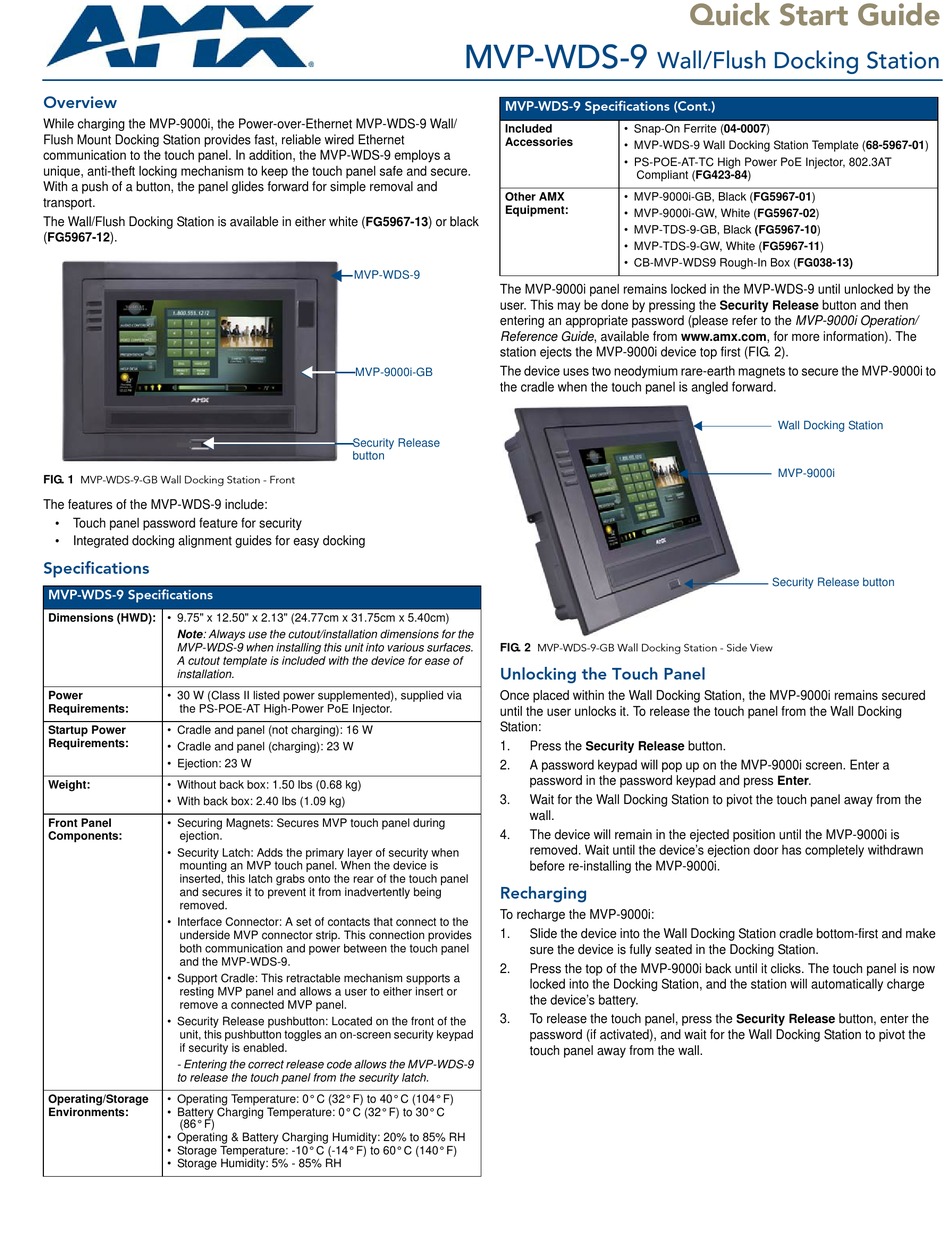

AMX MVP-WDS-9 Quick Start Manual

Overview

While charging the MVP-9000i, the Power-over-Ethernet MVP-WDS-9 Wall/
Flush Mount Docking Station provides fast, reliable wired Ethernet
communication to the touch panel. In addition, the MVP-WDS-9 employs a
unique, anti-theft locking mechanism to keep the touch panel safe and secure.
With a push of a button, the panel glides forward for simple removal and
transport.
The Wall/Flush Docking Station is available in either white (FG5967-13) or black
(FG5967-12).
FIG. 1 MVP-WDS-9-GB Wall Docking Station - Front
The features of the MVP-WDS-9 include:
• Touch panel password feature for security
• Integrated docking alignment guides for easy docking
Specifications

MVP-WDS-9 Specifications

Dimensions (HWD): • 9.75" x 12.50" x 2.13" (24.77cm x 31.75cm x 5.40cm)
Note: Always use the cutout/installation dimensions for the
MVP-WDS-9 when installing this unit into various surfaces.
A cutout template is included with the device for ease of
installation.
Power 
• 30 W (Class II listed power supplemented), supplied via
Requirements: the PS-POE-AT High-Power PoE Injector.
Startup Power 
• Cradle and panel (not charging): 16 W
Requirements:
• Cradle and panel (charging): 23 W
• Ejection: 23 W
Weight: • Without back box: 1.50 lbs (0.68 kg)
• With back box: 2.40 lbs (1.09 kg)
Front Panel 
• Securing Magnets: Secures MVP touch panel during
Components: ejection.
• Security Latch: Adds the primary layer of security when
mounting an MVP touch panel. When the device is
inserted, this latch grabs onto the rear of the touch panel
and secures it to prevent it from inadvertently being
removed.
• Interface Connector: A set of contacts that connect to the
underside MVP connector strip. This connection provides
both communication and power between the touch panel
and the MVP-WDS-9.
• Support Cradle: This retractable mechanism supports a
resting MVP panel and allows a user to either insert or
remove a connected MVP panel.
• Security Release pushbutton: Located on the front of the
unit, this pushbutton toggles an on-screen security keypad
if security is enabled.
- Entering the correct release code allows the MVP-WDS-9
to release the touch panel from the security latch.
Operating/Storage • Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Battery Charging Temperature: 0° C (32° F) to 30° C 
Environments:
(86° F)
• Operating & Battery Charging Humidity: 20% to 85% RH
• Storage Temperature: -10° C (-14° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
MVP-WDS-9
MVP-WDS-9 Specifications (Cont.)
Included 
Accessories
Other AMX 
Equipment:
MVP-WDS-9
The MVP-9000i panel remains locked in the MVP-WDS-9 until unlocked by the
user. This may be done by pressing the Security Release button and then
entering an appropriate password (please refer to the MVP-9000i Operation/
Reference Guide, available from www.amx.com, for more information). The
station ejects the MVP-9000i device top first (FIG. 2).
The device uses two neodymium rare-earth magnets to secure the MVP-9000i to
MVP-9000i-GB
the cradle when the touch panel is angled forward.
Security Release
button
FIG. 2

Unlocking the Touch Panel

Once placed within the Wall Docking Station, the MVP-9000i remains secured
until the user unlocks it. To release the touch panel from the Wall Docking
Station:
1. Press the Security Release button.
A password keypad will pop up on the MVP-9000i screen. Enter a 
2.
password in the password keypad and press Enter.
3. Wait for the Wall Docking Station to pivot the touch panel away from the
wall.
4. The device will remain in the ejected position until the MVP-9000i is
removed. Wait until the device's ejection door has completely withdrawn
before re-installing the MVP-9000i.

Recharging

To recharge the MVP-9000i:
1. Slide the device into the Wall Docking Station cradle bottom-first and make
sure the device is fully seated in the Docking Station.
2. Press the top of the MVP-9000i back until it clicks. The touch panel is now
locked into the Docking Station, and the station will automatically charge
the device's battery.
3. To release the touch panel, press the Security Release button, enter the
password (if activated), and wait for the Wall Docking Station to pivot the
touch panel away from the wall.
Quick Start Guide
Wall/Flush Docking Station
• Snap-On Ferrite (04-0007)
• MVP-WDS-9 Wall Docking Station Template (68-5967-01)
• PS-POE-AT-TC High Power PoE Injector, 802.3AT
Compliant (FG423-84)
• MVP-9000i-GB, Black (FG5967-01)
• MVP-9000i-GW, White (FG5967-02)
• MVP-TDS-9-GB, Black (FG5967-10)
• MVP-TDS-9-GW, White (FG5967-11)
• CB-MVP-WDS9 Rough-In Box (FG038-13)
MVP-WDS-9-GB Wall Docking Station - Side View
Wall Docking Station
MVP-9000i
Security Release button
