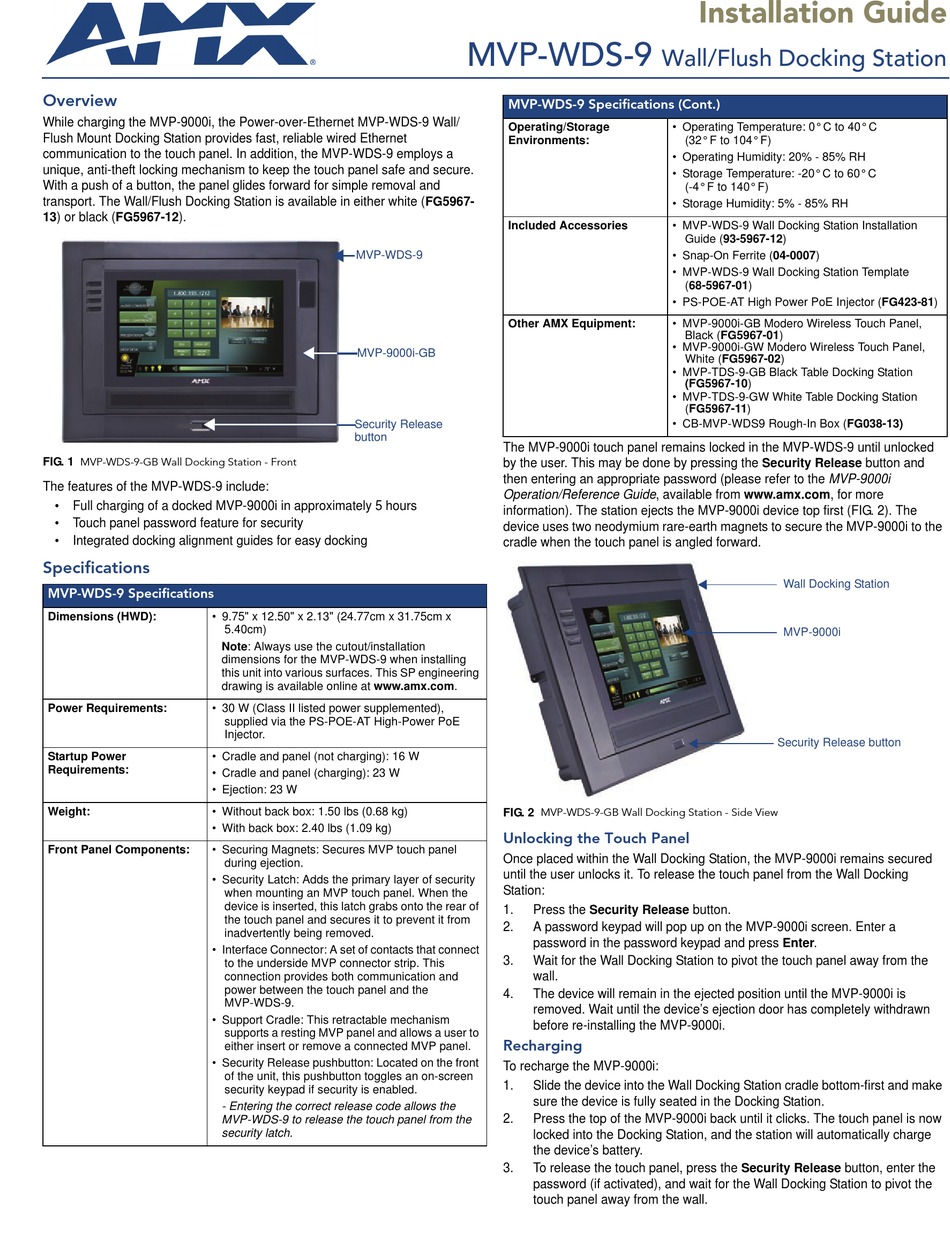

AMX MVP-WDS-9 Installation Manual

Overview

While charging the MVP-9000i, the Power-over-Ethernet MVP-WDS-9 Wall/
Flush Mount Docking Station provides fast, reliable wired Ethernet
communication to the touch panel. In addition, the MVP-WDS-9 employs a
unique, anti-theft locking mechanism to keep the touch panel safe and secure.
With a push of a button, the panel glides forward for simple removal and
transport. The Wall/Flush Docking Station is available in either white (FG5967-
13) or black (FG5967-12).
FIG. 1 MVP-WDS-9-GB Wall Docking Station - Front
The features of the MVP-WDS-9 include:
• Full charging of a docked MVP-9000i in approximately 5 hours
• Touch panel password feature for security
• Integrated docking alignment guides for easy docking

Specifications

MVP-WDS-9 Specifications
Dimensions (HWD): • 9.75" x 12.50" x 2.13" (24.77cm x 31.75cm x
Note: Always use the cutout/installation
dimensions for the MVP-WDS-9 when installing
this unit into various surfaces. This SP engineering
drawing is available online at www.amx.com.
Power Requirements: • 30 W (Class II listed power supplemented),
Startup Power 
• Cradle and panel (not charging): 16 W
Requirements:
• Cradle and panel (charging): 23 W
• Ejection: 23 W
Weight: • Without back box: 1.50 lbs (0.68 kg)
• With back box: 2.40 lbs (1.09 kg)

Front Panel Components:

• Securing Magnets: Secures MVP touch panel
• Security Latch: Adds the primary layer of security
• Interface Connector: A set of contacts that connect
• Support Cradle: This retractable mechanism
• Security Release pushbutton: Located on the front
- Entering the correct release code allows the
MVP-WDS-9 to release the touch panel from the
security latch.
MVP-WDS-9
MVP-9000i-GB
Security Release
button
5.40cm)
supplied via the PS-POE-AT High-Power PoE
Injector.
during ejection.
when mounting an MVP touch panel. When the
device is inserted, this latch grabs onto the rear of
the touch panel and secures it to prevent it from
inadvertently being removed.
to the underside MVP connector strip. This
connection provides both communication and
power between the touch panel and the 
MVP-WDS-9.
supports a resting MVP panel and allows a user to
either insert or remove a connected MVP panel.
of the unit, this pushbutton toggles an on-screen
security keypad if security is enabled.
MVP-WDS-9
MVP-WDS-9 Specifications (Cont.)
Operating/Storage
Environments:

Included Accessories

Other AMX Equipment:

The MVP-9000i touch panel remains locked in the MVP-WDS-9 until unlocked
by the user. This may be done by pressing the Security Release button and
then entering an appropriate password (please refer to the MVP-9000i
Operation/Reference Guide, available from www.amx.com, for more
information). The station ejects the MVP-9000i device top first (FIG. 2). The
device uses two neodymium rare-earth magnets to secure the MVP-9000i to the
cradle when the touch panel is angled forward.
FIG. 2 MVP-WDS-9-GB Wall Docking Station - Side View

Unlocking the Touch Panel

Once placed within the Wall Docking Station, the MVP-9000i remains secured
until the user unlocks it. To release the touch panel from the Wall Docking
Station:
1. Press the Security Release button.
A password keypad will pop up on the MVP-9000i screen. Enter a 
2.
password in the password keypad and press Enter.
3. Wait for the Wall Docking Station to pivot the touch panel away from the
wall.
4. The device will remain in the ejected position until the MVP-9000i is
removed. Wait until the device's ejection door has completely withdrawn
before re-installing the MVP-9000i.

Recharging

To recharge the MVP-9000i:
1. Slide the device into the Wall Docking Station cradle bottom-first and make
sure the device is fully seated in the Docking Station.
2. Press the top of the MVP-9000i back until it clicks. The touch panel is now
locked into the Docking Station, and the station will automatically charge
the device's battery.
3. To release the touch panel, press the Security Release button, enter the
password (if activated), and wait for the Wall Docking Station to pivot the
touch panel away from the wall.

Installation Guide

Wall/Flush Docking Station
• Operating Temperature: 0° C to 40° C 
(32° F to 104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C to 60° C 
(-4° F to 140° F)
• Storage Humidity: 5% - 85% RH
• MVP-WDS-9 Wall Docking Station Installation
Guide (93-5967-12)
• Snap-On Ferrite (04-0007)
• MVP-WDS-9 Wall Docking Station Template
(68-5967-01)
• PS-POE-AT High Power PoE Injector (FG423-81)
• MVP-9000i-GB Modero Wireless Touch Panel,
Black (FG5967-01)
• MVP-9000i-GW Modero Wireless Touch Panel,
White (FG5967-02)
• MVP-TDS-9-GB Black Table Docking Station
(FG5967-10)
• MVP-TDS-9-GW White Table Docking Station
(FG5967-11)
• CB-MVP-WDS9 Rough-In Box (FG038-13)
Wall Docking Station
MVP-9000i
Security Release button
