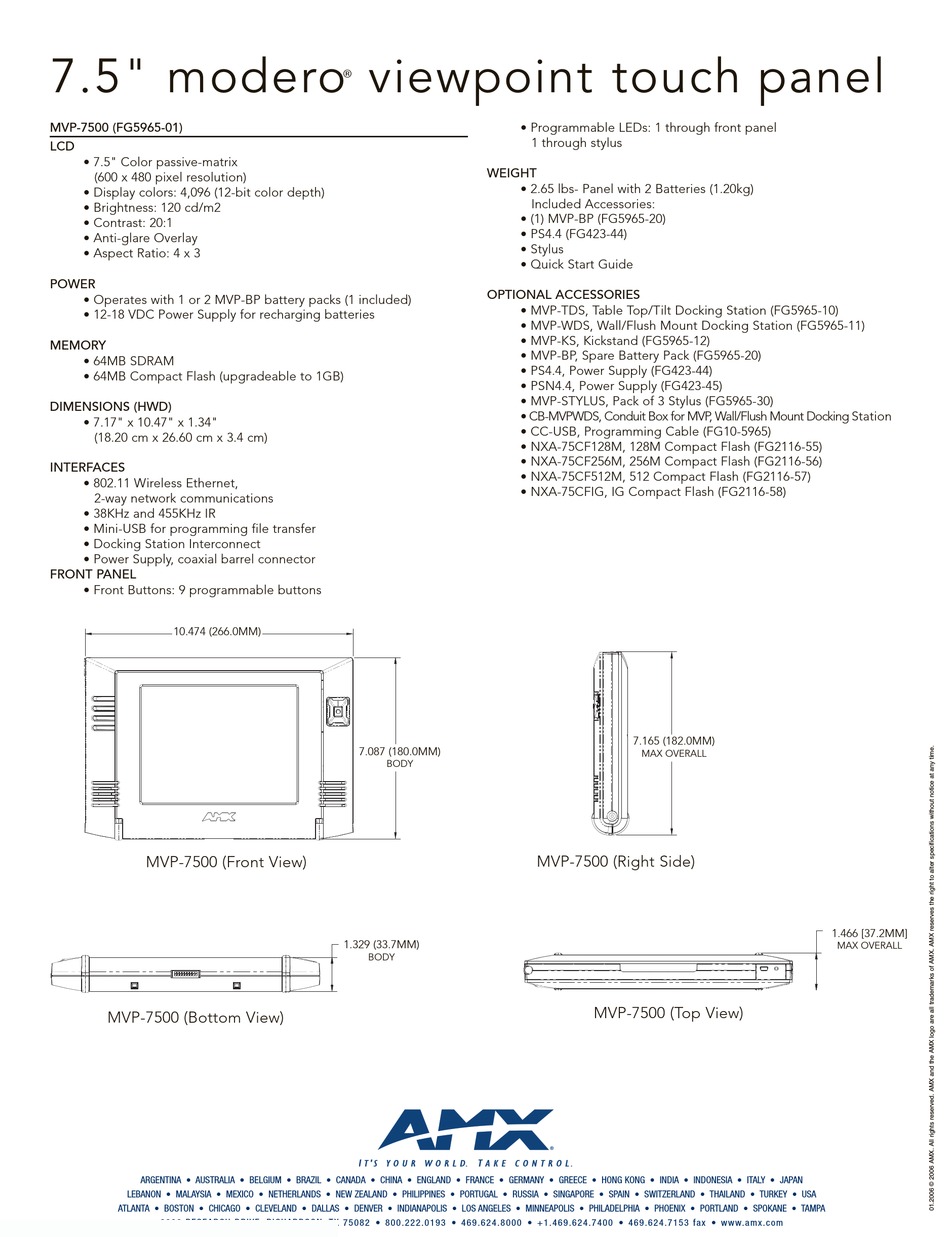

AMX Modero MVP-7500 Specifications page 2

7.5" modero
MVP-7500 (FG5965-01)
LCD
• 7.5" Color passive-matrix
(600 x 480 pixel resolution)
• Display colors: 4,096 (12-bit color depth)
• Brightness: 120 cd/m2
• Contrast: 20:1
• Anti-glare Overlay
• Aspect Ratio: 4 x 3
POWER
• Operates with 1 or 2 MVP-BP battery packs (1 included)
• 12-18 VDC Power Supply for recharging batteries
MEMORY
• 64MB SDRAM
• 64MB Compact Flash (upgradeable to 1GB)
DIMENSIONS (HWD)
• 7.17" x 10.47" x 1.34"
(18.20 cm x 26.60 cm x 3.4 cm)
INTERFACES
• 802.11 Wireless Ethernet,
2-way network communications
• 38KHz and 455KHz IR
• Mini-USB for programming file transfer
• Docking Station Interconnect
• Power Supply, coaxial barrel connector
FRONT PANEL
• Front Buttons: 9 programmable buttons
10.474 (266.0MM)
10.474 [266.0MM]
MVP-7500 (Front View)
MVP-7500 (Bottom View)
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3 0 0 0 R E SE A R C H D R I VE , RI CH AR DSON , TX 750 82 • 800 . 2 2 2 .0 1 9 3 • 4 6 9 .6 2 4 . 8000 • +1. 469. 624. 7400 • 469. 624. 7153 fax • ww w. amx. c om
®
viewpoint touch panel
• Programmable LEDs: 1 through front panel
WEIGHT
• 2.65 lbs- Panel with 2 Batteries (1.20kg)
• (1) MVP-BP (FG5965-20)
• PS4.4 (FG423-44)
• Stylus
• Quick Start Guide
OPTIONAL ACCESSORIES
• MVP-TDS, Table Top/Tilt Docking Station (FG5965-10)
• MVP-WDS, Wall/Flush Mount Docking Station (FG5965-11)
• MVP-KS, Kickstand (FG5965-12)
• MVP-BP, Spare Battery Pack (FG5965-20)
• PS4.4, Power Supply (FG423-44)
• PSN4.4, Power Supply (FG423-45)
• MVP-STYLUS, Pack of 3 Stylus (FG5965-30)
• CB-MVPWDS, Conduit Box for MVP , Wall/Flush Mount Docking Station
• CC-USB, Programming Cable (FG10-5965)
• NXA-75CF128M, 128M Compact Flash (FG2116-55)
• NXA-75CF256M, 256M Compact Flash (FG2116-56)
• NXA-75CF512M, 512 Compact Flash (FG2116-57)
• NXA-75CFIG, IG Compact Flash (FG2116-58)
7.087 (180.0MM)
7.087 [180.0MM]
BODY
BODY
1.329 (33.7MM)
1.329 [33.7MM]
BODY
BODY
1 through stylus
Included Accessories:
7.165 (182.0MM)
7.165 [182.0MM]
MAX OVERALL
MAX OVERALL
MVP-7500 (Right Side)
MVP-7500 (Top View)
1.466 [37.2MM] 1.466 [37.2MM]
MAX OVERALL
MAX OVERALL
