REPLACING THE KEYPAD MODULE

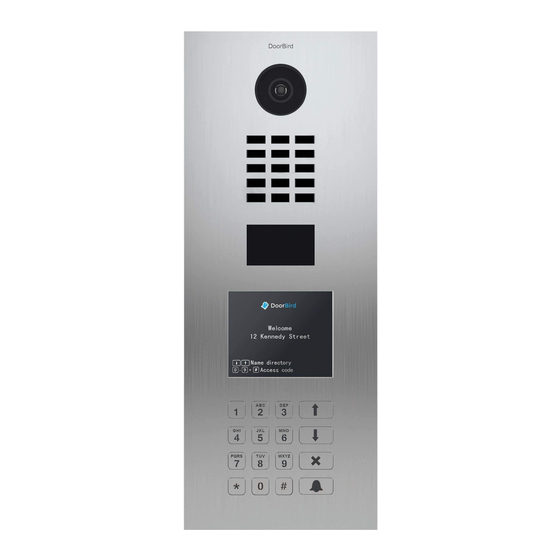

D21x series
TECHNISCHE DATEN
Before replacing the keypad the existing
cable connection has to be removed.
1

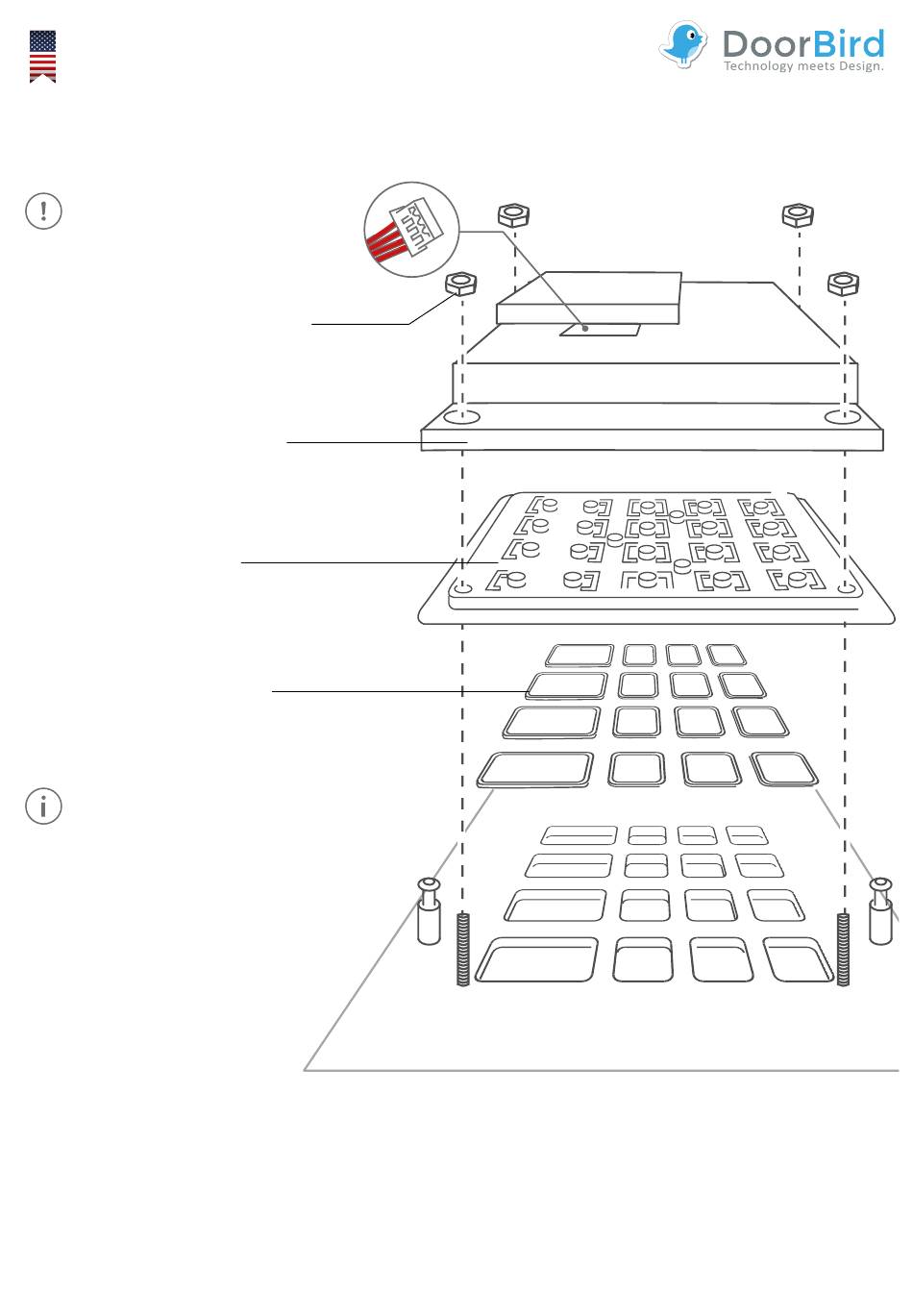

Loosen the four nuts of the
keypad protective housing.
2
Remove the keypad protective
housing.
3
Replace the rubber seal.
4
Replace the keypad buttons.
To assemble, follow these steps in
reverse order.
www.doorbird.com
Errors and omissions excepted. |
Stand 05/2018 – Copyright © 2018 Bird Home Automation GmbH – www.doorbird.com
