Steinberg SBS-PW-402C Quick Start Manual

English introduction for Steinberg SBS-PW-402C

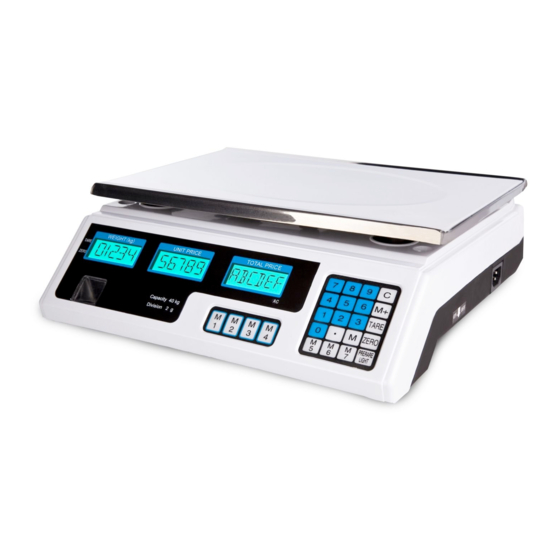

The Steinberg Systems Price Computing Scale is Low Cost Highly accurate measuring equipment most suitable for Super
markets, Grocery Stores and other retail outlets. This scale is made using Highly accurate and precise sensors. It has a
capacity to store up to 7 unit prices and 99 accumulation memory. It is a versatile machine; because it also runs on
rechargeable battery in case of lack of mains power: The scale will also automatically switched off when it is in non-use
condition; in order to save power.

Features

Specifications: 600g*2g, 3kg* 1g, 6kg*2g, 15kg*5g,30kg* 10g
Precision: I /3000F.S
AC 220v or 110v and built-in Rechargeable battery
Storage up to 7 unit prices
Accumulate operation (0-99)
Account function, do memory recall and memory clear one time
Auto shut off function to save power
Display windows: Weight Window: 5 digits
Unit Price Window: 5 digits
Total Price Window: 6 digits

Description

Key. description
Each of the keys are shown and described for you.
ZERO The ZERO key zeroes the scale
TARE The TARE key subtracts tare values and changes the scale from gross mode (no tare) to net mode
M 1 to M7 Stores unit price value at 7 different locations
C The C key is used for canceling the memorized data
0-9 The NUMERIC key (0-9) is used for setting unit price data DECIMAL POINT key is used for set the
decimal position of unit price
display backlight adjustment

Display Description

Display Indicators
1. Tare indicator: The TARE LED is located on the left side below the Weight Window.
2. Zero indicator: The ZERO LED is located on the right side below the Weight Window.
3. Low Battery Indicator: Low Battery Indicator is located below the Unit Price Window.
4. AC power indicator: AC Power LED/LCD is located below the Total Price Win¬dow.

Operation

General Instruction

1 . When battery goes low, the "Low Battery" indicator will be turned on automatically. It is the time to charge the
battery with the AC power.
2. Allow the scale to warm-up for 10 minutes after switching on the power, for better results.

Basic Operation

1 . Zero the scale
When there is no item on the scale but reading is not zero, press the ZERO key to turn on ZERO indicator.
2. Weighing
Ensure that scale is in ZERO position and ZERO indicator is glowing; place an item for weighing on the pan. The
Weight Window will display the weight of the item.
3. Tare
Put container on the platter, once the weight reading is stable, press the TARE key, the TARE indicator will be on
and the container's weight will be deducted. When it is time to clear the TARE, rake off the container, and press
TARE key again
4. Overload Warning
Please do not add item that is over the maximum capacity. When the scale is
